Let’s Build with Swift - 4: View Modifier And Reader-Proxy Pattern
Modify Views and Use the Reader/Proxy Pattern With ArcGIS Maps SDK for Swift
Welcome to the final post in this series! In previous posts, we have covered the basic mapping app structure, state and data flow, and using concurrency in your app. Finally, we will revisit the SwiftUI view to discuss the view modifiers as well as the view reader/proxy pattern. In addition, we will also lightly touch on a few other topics to give you a head start in your journey with the new ArcGIS Maps SDK for Swift.
Topics In This Post
- Apply view modifiers to customize the characteristics of a view
- Explore the commonly used view modifiers in SwiftUI and Swift Maps SDK
- Access map view operations using the MapViewReader and MapViewProxy pattern
- Beyond this blog series
View Modifiers
With UIKit, we used to control a view's appearance, behavior, gesture recognition, and operations, by using a variety of properties and methods. With SwiftUI, we now control this with two different categories of methods. A new genre of declarative methods called view modifiers handle the configuration of a view, and proxy view methods handle the operations performed on the content of a view. We will explore this reader/proxy coding pattern in a later section.
A view modifier takes a view as input, and returns a modified view as output. You can even chain together multiple modifiers to achieve complex effects. There are many types of view modifiers in SwiftUI that can be roughly grouped by their purpose into the following categories:
- Customize the view's appearance, such as color, style, effect, and shape.
- Change layout by adding an overlay to a view, or padding between views, for example.
- Handle events such as, detecting gestures on a view, or responding to the text field submission.
- Configure the environment by using the environment object modifier to pass a data model to subviews.
- Miscellaneous modifiers that control the navigation behavior, showing an alert and other supporting views, setting animation on a view, setting disabled or hidden states, and for accessibility, and many more.
In the following sections, we will examine some of the SwiftUI and ArcGIS view modifiers using a code example.
View Modifiers in SwiftUI
Take another look at the view's body we've written so far.
var body: some View {
MapView(map: model.map, viewpoint: viewpoint)
.onViewpointChanged(kind: .centerAndScale) { viewpoint = $0 }
.locationDisplay(model.locationDisplay)
.toolbar {
ToolbarItem(placement: .bottomBar) {
Button("Query City") {
Task {
try? await model.featureLayer.load()
try? await model.queryCity(name: "Los Angeles")
}
}
}
}
.overlay(alignment: .top) {
Text(model.currentLocation?.position.xyCoordinates ?? "No location update.")
}
.task {
await model.startLocationDataSource()
await model.locationDidChange()
}
.onDisappear {
model.stopLocationDataSource()
}
}
Here are a few examples of other SwiftUI view modifiers. In terms of the layout, you can also change the frame of a view, aspect ratio, z-index, views alignment, and padding between views. In terms of the map view, the .alert, presentation .sheet, and .popover view modifiers allow you to present UI choices and interactions in your app. They are very versatile when customizing a view and work seamlessly with the Swift Maps SDK view modifiers.

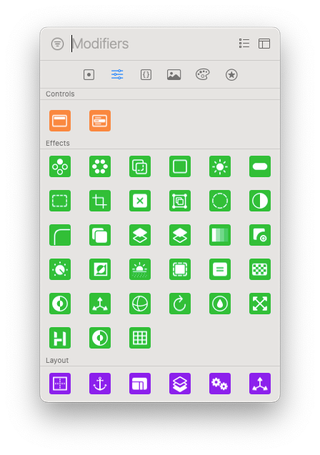

Note: To browse the other view modifiers in SwiftUI, check out the Xcode library by clicking the Library button (+) in Xcode's toolbar on the right.
View Modifiers in Swift Maps SDK
The Swift Maps SDK also provides view modifiers for various mapping workflows. In the code example above, the .locationDisplay modifier is used to pass a location display instance to the map view. It replaces the mapView.locationDisplay property found in the iOS Runtime SDK. Typically, if a map view property configures the look of the view, or provides information about the view, it will now be exposed as a view modifier that takes the value of the property. For example, you can set the background grid on a map view, the atmosphere effect on a scene view, or a geometry editor instance on a map view using their respective modifiers.
The .onViewpointChanged modifier sets a closure to perform an action when the viewpoint changes. This pattern represents the modifiers that respond to the changes on the map view. Whenever the event generates a new value, it calls the provided closure with the value. The names of these modifiers often starts with "on" and ends with "Changed", to indicate the action will be performed whenever the value-of-interest changes. Similar examples are .onRotationChanged, .onVisibleAreaChanged, .onDrawStatusChanged, and various gesture modifiers such as .onSingleTapGesture, which will be further demonstrated below.
Note: The callout modifier is a special case that doesn't belong to the 2 patterns above. It resembles a control modifier in SwiftUI, which you can specify its placement and add subviews to it.
For a comprehensive list of the Swift Maps SDK instance methods that you can set as view modifiers, check out the individual API Reference pages for GeoView, MapView, and SceneView.
Reader/Proxy Pattern
As SwiftUI views, MapView and SceneView do not expose any properties, and all their instance methods are view modifiers. View modifiers allow you to customize a view's appearance or behavior. There are some methods such as identify, set view point with animation, export image and set bookmarks, however, that do not set the view's appearance and behavior.
These types of methods perform a specific function on the view itself and are handled using a proxy, MapViewProxy, and a reader view, MapViewReader. They are used to expose the properties and methods that aren't suitable for an initializer parameter or a modifier.
SwiftUI uses the same reader patterns in the ScrollViewReader and the GeometryReader. These 2 container views provide a content proxy to access the content view's size, coordinate space, read-only properties, and methods that operate on the map or scene view itself.
The most prominent examples of the reader/proxy pattern are the identify and setViewpoint operations. The identify operation allows a user to discover features at a geographic location while the setViewpoint operation allows the map view to change to a viewpoint in an animated fashion.
Let's add these 2 abilities to the code example. First, add 2 new state properties to the ContentView, to hold the tapping points from the gesture.
struct ContentView: View {
+ @State private var identifyPoint: CGPoint?
+ @State private var tapLocation: Point?
// ... Code below collapsed
}Then, add the following code to the view's body.
+ // 1. Wrap the map view in a `MapViewReader`.
+ MapViewReader { mapViewProxy in
MapView(map: model.map, viewpoint: viewpoint)
.onViewpointChanged(kind: .centerAndScale) { viewpoint = $0 }
.locationDisplay(model.locationDisplay)
+ // 2. Add a single tap gesture modifier.
+ .onSingleTapGesture { screenPoint, mapPoint in
+ identifyPoint = screenPoint
+ tapLocation = mapPoint
+ }
+ // 3. Add a task modifier to run the async operations.
+ .task(id: identifyPoint) {
+ guard let identifyPoint else { return }
+ model.featureLayer.clearSelection()
+ let results = try? await mapViewProxy.identify(
+ on: model.featureLayer,
+ screenPoint: identifyPoint,
+ tolerance: 12,
+ maximumResults: 1
+ )
+ if let feature = results?.geoElements.first as? Feature,
+ let geometry = feature.geometry {
+ model.featureLayer.selectFeature(feature)
+ await mapViewProxy.setViewpointGeometry(geometry)
+ }
+ }
// ... Code below collapsed
+ }
Next, add the Swift Maps SDK .onSingleTapGesture modifier at 2, to receive the tap point and location when the user taps on the screen. These values are stored in the state properties, called identifyPoint and tapLocation, that we created above.
Finally, let's add a .task modifier at 3 that will run when the value of identifyPoint changes. This task block runs the asynchronous operations of identify and set the viewpoint with animation. The identify method on the map view proxy, uses the identifyPoint, and waits for the identify result. If the result is not empty, we then call the setViewpointGeometry method on the proxy to pan the map view to the selected feature with animation.

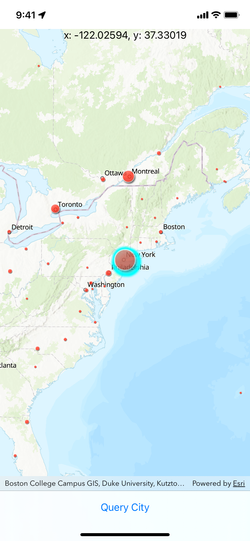

Build and run the app. Tap on any city feature in the map view. The feature will be selected, and the map view will pan to the feature.
This reader/proxy coding pattern is also adopted by the SceneView. Refer to the MapViewProxy and the SceneViewProxy API Reference documentation for a list of their methods. Once you get familiar with this pattern, you will find it quite intuitive to use, just like calling the methods on the map view itself in the iOS Runtime SDK.
Next Steps
Woo-Hoo! 🥳 We are at the finish line of the series. View modifiers are an essential part of the whole SwiftUI ecosystem. As you get more familiar with the new SDK, you will get used to the great ease of modifying views using many modifiers together. At Esri, we strive to give you a developer experience that is on par with the first-party native frameworks.
Due to limited space, there are a few things that we didn't discuss in detail in the series. To learn more about the new SDK, there are many resources for you to explore.
- The open source sample code app demonstrates many capabilities of the SDK.
- The open source toolkit contains views, view modifiers, and other components to simplify your Swift app development.
- Esri Community - Swift Maps SDK Questions is the place to go for any questions related to the SDK.
- ArcGIS Developer website caters all your ArcGIS needs. It contains tutorials, code examples, conceptual docs for the SDK, and more.
- The Migration guide provides a quick reference for migrating apps that use the ArcGIS Runtime SDK for iOS v100.x.
- There are plenty resources from Apple, such as Apple Documentation, SwiftUI Tutorials, Swift API Design Guidelines, and Human Interface Guidelines that you can follow to develop a new SwiftUI app from scratch.
Finally, below you will find the full code we've completed through this blog series. It marks the first milestone of your journey with ArcGIS Maps SDK for Swift.With this solid foundation to build upon, we hope to see your powerful and modern mapping apps on App Store soon!:mobile_phone:
The code we've written so far 👇
import SwiftUI
import ArcGIS
import CoreLocation
struct ContentView: View {
@StateObject private var model = Model()
@State private var viewpoint = Viewpoint(latitude: 34.02700, longitude: -118.80500, scale: 72_000)
@State private var identifyPoint: CGPoint?
@State private var tapLocation: Point?
var body: some View {
// Creates a map view to display the map.
MapViewReader { mapViewProxy in
MapView(map: model.map, viewpoint: viewpoint)
.locationDisplay(model.locationDisplay)
.onViewpointChanged(kind: .centerAndScale) { viewpoint = $0 }
.onSingleTapGesture { screenPoint, mapPoint in
identifyPoint = screenPoint
tapLocation = mapPoint
}
.task(id: identifyPoint) {
guard let identifyPoint else { return }
model.featureLayer.clearSelection()
let results = try? await mapViewProxy.identify(
on: model.featureLayer,
screenPoint: identifyPoint,
tolerance: 12,
maximumResults: 1
)
if let feature = results?.geoElements.first as? Feature,
let geometry = feature.geometry {
model.featureLayer.selectFeature(feature)
await mapViewProxy.setViewpointGeometry(geometry)
}
}
.toolbar {
ToolbarItem(placement: .bottomBar) {
Button("Query City") {
Task {
try? await model.featureLayer.load()
try? await model.queryCity(name: "Los Angeles")
}
}
}
}
.overlay(alignment: .top) {
Text(model.currentLocation?.position.xyCoordinates ?? "No location update.")
}
.task {
await model.startLocationDataSource()
await model.locationDidChange()
}
.onDisappear {
model.stopLocationDataSource()
}
}
}
}
private extension ContentView {
/// The view model for this example.
class Model: ObservableObject {
/// A topographic map.
let map: Map
/// A feature layer showing the locations of World Cities.
let featureLayer: FeatureLayer
/// The location display for the map.
let locationDisplay: LocationDisplay
/// The latest location update from the location data source.
@Published var currentLocation: Location?
init() {
map = Map(basemapStyle: .arcGISTopographic)
featureLayer = FeatureLayer(item: PortalItem(portal: .arcGISOnline(connection: .anonymous), id: PortalItem.ID("6996f03a1b364dbab4008d99380370ed")!))
map.addOperationalLayer(featureLayer)
locationDisplay = LocationDisplay(dataSource: SystemLocationDataSource())
locationDisplay.autoPanMode = .recenter
}
/// Starts the location data source.
func startLocationDataSource() async {
// Requests location permission.
let locationManager = CLLocationManager()
locationManager.requestWhenInUseAuthorization()
do {
try await locationDisplay.dataSource.start()
} catch {
// Shows the error if starting the data source fails.
print(error.localizedDescription)
}
}
/// Stops the location data source.
func stopLocationDataSource() {
Task {
await locationDisplay.dataSource.stop()
}
}
/// Uses `for-await-in` to access location updates produced by the async stream.
@MainActor
func locationDidChange() async {
for await newLocation in locationDisplay.dataSource.locations {
currentLocation = newLocation
}
}
/// Queries a cities feature table with a name.
func queryCity(name: String) async throws {
let queryParameters = QueryParameters()
queryParameters.whereClause = "CITY_NAME = '\(name)'"
// Queries the feature table dataset.
if let queryResult = try await featureLayer.featureTable?.queryFeatures(using: queryParameters) {
featureLayer.selectFeatures(queryResult.features())
}
}
}
}
private extension Point {
/// The point's decimal-formatted x and y coordinates.
var xyCoordinates: String {
String(format: "x: %.5f, y: %.5f", x, y)
}
}
