Including blank values for a serial chart in Dashboard
Hi, I am using the serial chart widget in a dashboard and while it is easy to bring in values of existing features, I want to show all in my domain, even if it is blank. That might not make sense.I'll try to include a screenshot.
In my two serial charts on the right, for the above one, I want to show the 'roadway design' and another bar, but that other bar needs to have zero (0) for its value. Same for the bottom chart - I want to add one more attribute with a zero value so users will know it's there. Is that possible?
It seems that I can add as many categories as I want but it the category has zero features, then it won't show. Am I missing a check box somewhere that says "show even if it has zero features"?
Thanks in advance. Tagging the dashboard mastermind Derek Law
Alright y'all, I think I have solved my own problem with some creativity and without using JSON or other Arcade like coding.
In ArcGIS Pro, if I add an empty row at the bottom of my attribute table (without adding any geometry - by clicking "Click to add new row"):
I can populate that row with the values of my domain. Doing this, I can make every value show up in my attribute table, and then republish my map. Those values now exist without any polygon data.
Now, in order to make them show up in the Serial Chart on dashboards, I just tell it to do a count of my main identifying value (which for me is the "ownership number"):
And voila! I now have "zero" values for all the attributes I want to show in my serial chart!
I hope this helps some of y'all!
One thing to point out, I was using object_id as my counting variable. If I continued to use object_id, it would count all my records and I would not have zero values. It would look something like this:
Hi Craig,

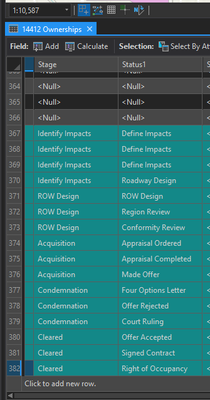

In my non-spatial rows, the domains are still in the same field. All fields are valid data entry points so that you can put whatever and still have it behave with domain rules, if that makes sense. Each domain is on a new row. To illustrate, here is a screen shot of the bottom of my attribute table. The highlighted rows all have no geometry:
Let me know if you have more questions.
Thanks for the reply Adrian. I do have one additional question. I tried doing a test with some data add added the domains into a 'Blotter' field. These are non-spatial. I then used the 'Activity' field as my counting variable. This is the field that I have all my spatial data (my identifying data). However, my dashboard only seems to be using the 'Blotter' field and since I added each attribute in once, it is only displaying it as 1 in my chart. I cannot figure out what I am I doing wrong. Thanks again!
Hmm, that is a little tricky. Thanks for sharing your screenshot. This is what my full setup looks like:
For my chart, it looks for anything with a "stage" value of "Acquisition". In my table itself, there are 10 rows with this value. But for counting, it is looking for anything with "ownership number". Only 7 of those 10 rows have a value in ownership number. The other 3 are <null>. One more thing to point out, I am symbolizing my chart by a field called "Status1" so it is not using "stage" or "ownership number". I wonder if that makes a difference.
Does this help? I would play around with the different variables and make sure the counting one has a null value where you want it to show zero. Let me know what you find out.
That's the hard part; the try-and-test method! Maybe that "is not null" value in the filter is causing issues? I would try messing with the filter, the category field, and the counting field, just to try and force it to show you what you want to see.
Maybe also another thing to check, is to fully make sure your data table is showing you what you need it to show you (you can click on "Show data table" at the top).
In my table, I can see that three of my "ownership numbers" have no value, or a null value here:
