Welcome to this series of GIS Workshops!  These are designed to help you become excited about and enabled to use web GIS tools to solve problems and analyze spatial patterns, relationships, and trends.

(1)  Telling your story with Esri Story Maps - concepts and hands-on activities:

telling_your_story_with_esri_story_maps_final.pdf - Box

Digital Humanities Collection:  Story Maps and the Digital Humanities

(2) 5 Converging forces catapulting spatial thinking to the world stage, 5 trends in geospatial technology, and 5 skills important in your data science career.

https://denverro.maps.arcgis.com/apps/MapJournal/index.html?appid=fb060544d4bc4d15a1b8bed38048859b

(3) The Power of ArcGIS Online

(3a)  Spatial Joins to the ArcGIS Online Living Atlas of the World

A spatial join is a GIS operation that affixes data from one feature layer's attribute table to another according to its location. Spatial joins begin by selecting a target feature and comparing it spatially to other feature layers.  Spatial joins have been used for years, for example, to determine how many water wells are in a drainage basin, or businesses in a census tract, or the number of earthquakes that fall within specific countries over specific time periods.  Let's take this last example and apply it to the changing paradigm that Web GIS represents.  You can now join data to the cloud!



Let us say that I want to determine how many earthquakes occurred in the past 30 days according to the USGS National Earthquake Information Center.  The way I have done this for years in ArcGIS Desktop was to gather two data layers - a point layer for earthquakes, and a polygon layer for world countries, and perform a spatial join.  Nothing is wrong with that method, and it continues to work well in ArcGIS Pro, for example.  But let's say I want to do that in ArcGIS , and I don't want to download anything.  This is accomplished with an analysis tool in ArcGIS --Join Features.  To use the analysis tools, you have to be signed in to ArcGIS  and have a publisher role.



To begin, start with my web map:

http://denverro.maps.arcgis.com/home/webmap/viewer.html?webmap=63a6261d7afa48878a52a4c7127f624e - the

Earthquakes starting point map.  It contains data layers that are streaming from the USGS earthquake center, in this  case, the last 30 days of earthquakes.



Sign in to ArcGIS Online > Analysis > Summarize Data > Join Features.  Once the Join Features analysis tool is engaged, I find World Countries (generalized) in the Living Atlas of the World.  This is your target layer, so named because my goal or "target" is to create a choropleth map by country polygons.  The layer to join to these polygons is my earthquakes layer that is streaming from USGS.  The type of join is "intersect"--if an earthquake is inside or "intersects" the country polygon, you want it to be considered.

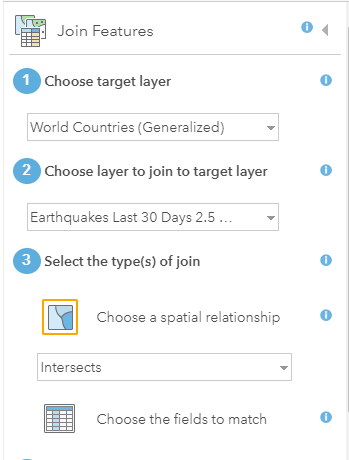

Spatial Join 2

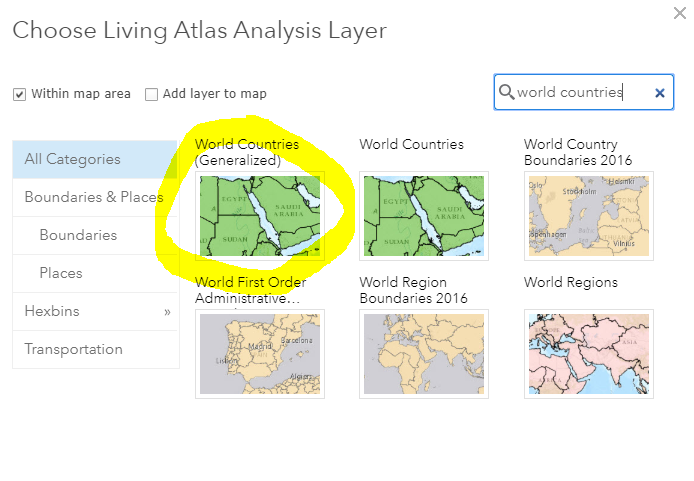

Here is how I found the Living Atlas content, after searching on World Countries, I selected the generalized data set:



Spatial Join 1

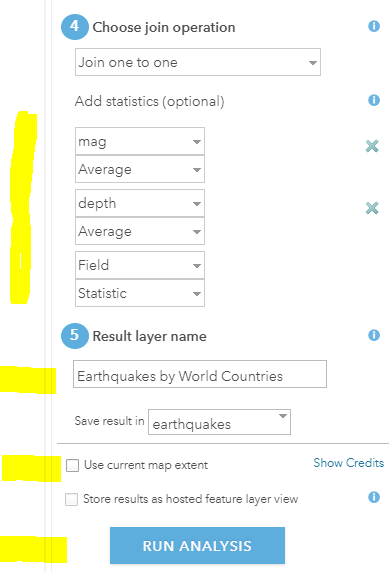

I filled in the remainder of the Join Features dialog box as follows:  I chose the one to one operation; I added statistics so I could determine average magnitude and depth by country, which I thought would be interesting (as I explain in this video, always be curious!) my resulting layer and I unchecked "use current map extent" just in case my current extent happened to be cutting off any outlying islands in the South Pacific, for example, and then > Run Analysis:



Spatial Join 3

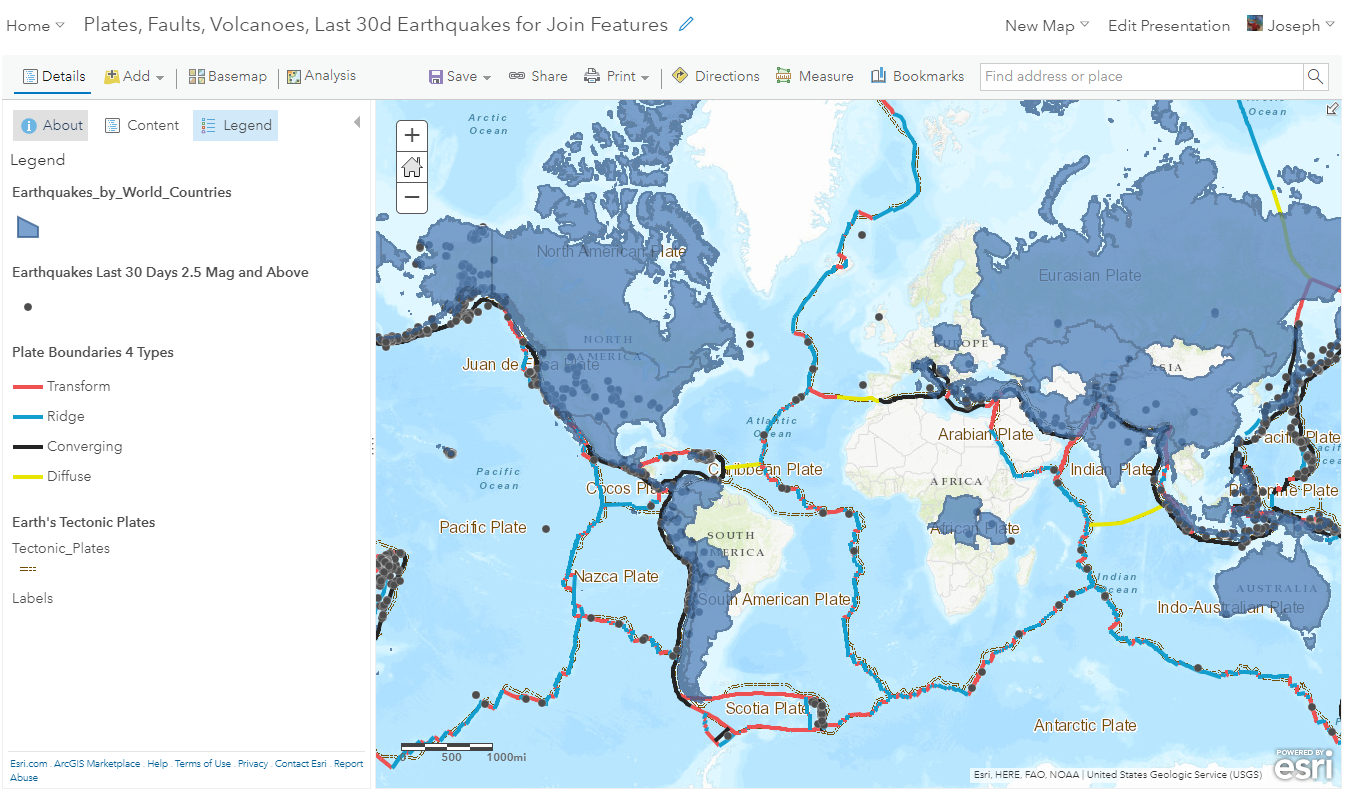

The results are below, with all countries defaulting as single symbol.

Spatial Join 4

You will change the style shortly, but before you do, let's examine the new table of data.  The "join count" field contains the number of earthquakes by country:

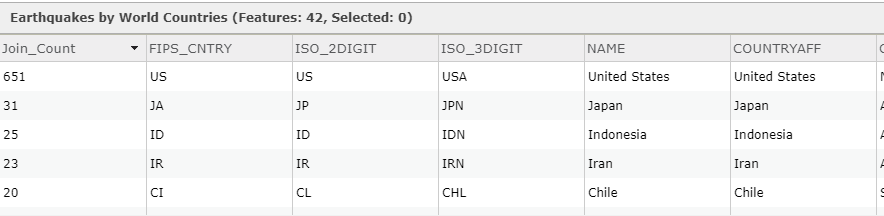

Spatial Join 5

The average magnitude and average depth have been saved as fields in the new layer:



Spatial Join 6



Next, use Change Style to symbolize the countries on Join_Count, as follows:

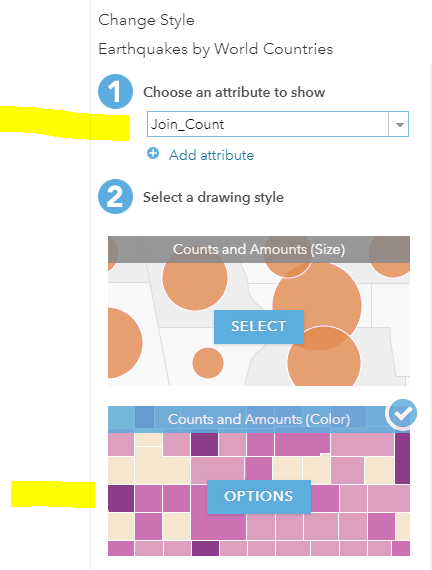

Spatial Join 7


Because the USA contains so many earthquakes, the default Counts and Amounts symbology lumps most countries into one category.  The reason why is in part because the USGS earthquake center is in the USA.  It is in Golden Colorado; I used to give tours there as a USGS employee; a fascinating place that I recommend highly for you to take a tour in next time you're in Colorado.  The earthquake center receives transmitted signals of information from the global seismic network, but it also senses ground motion from nearby earthquakes in the western USA.  So, it senses more small earthquakes in the USA than it does for other countries, resulting in a higher number for the USA.  This is all a critical part of knowing your data, as I write about weekly on the Spatial Reserves data blog.  So, under Options, I changed the classification to Quantile with 5 classes, as follows:



Spatial Join 8



The result is below.  Now I have a better sense, with a choropleth map, of the frequency of earthquake by country.  Given a ocean polygon layer, I could even map oceans by earthquake frequency.



I would like to make just a few adjustments.  Because over the last 30 days, according to the USGS, earthquakes had occurred in only 42 countries, and 254 polygons exist in the generalized world countries data set, countries with no earthquakes have no symbol or color:

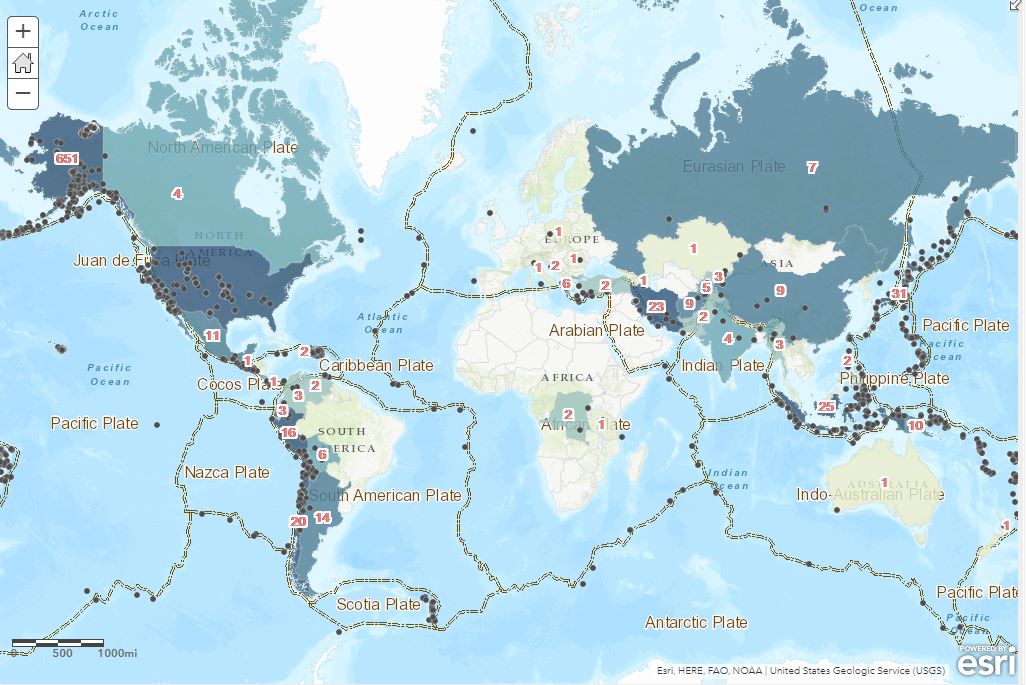

Spatial Join 8b



This looks a bit odd.  My goal is to show countries with no earthquakes over the past 30 days with a pale yellow color.  This is easily remedied with a few keystrokes.  The easiest way to do this is to use the Add Data button, add the generalized world countries from the Living Atlas of the World, and change its style to pale yellow with a yellow outline.  Once done, I moved its position to be located underneath my joined earthquakes layer.  I also moved the earthquakes to the top of the contents so that my map users could more clearly see them.  I also labeled the countries with the number of earthquakes that occurred within each one.   The resulting map is here.

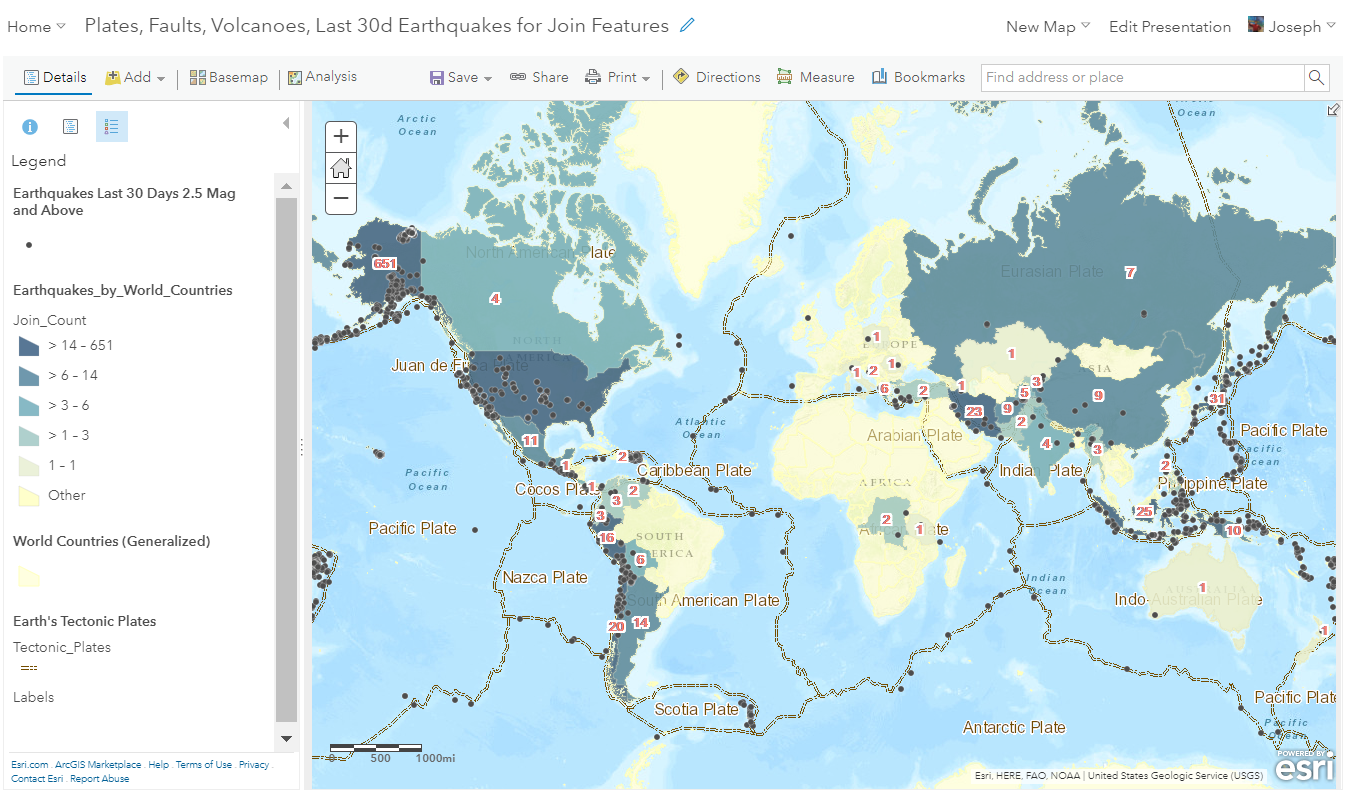

Spatial Join 9



Try the Join Tables to ArcGIS  on other data sets.  It can be accomplished in just a few steps but the results are powerful.  Think of ArcGIS  and the Living Atlas as a vast storehouse of data that you can join your own data to for rich analysis.

(3b)  Cholera investigation:

http://esrit3g.maps.arcgis.com/home/webmap/viewer.html?webmap=87c0f79108e246d49f97a6cfe4fce157

Steps:

1--Style data on number of cases.

2--Create heat map.

3--Buffer wells by 500 ft.

4--Summarize within - cholera cases within buffer.

5--Calculate route to each water pump.

(3c)  Use Arcade expressions on the following data set to enhance your capabilities in ArcGIS Online:

https://www.arcgis.com/home/webmap/viewer.html?useExisting=1&layers=c2d611adace94b488bfbf280dd591a7c

(4)  Survey123 Workshop:

Survey123_university_of_michigan.pdf - Box

(5)  Careers in GIS

career_advice_joseph_kerski_short.pdf - Box
