Yes, it is only for 3.3.

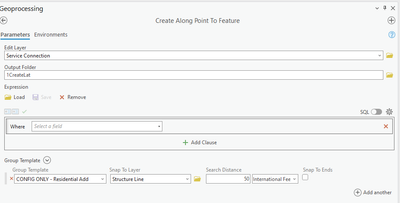

The GP tool is used to just create the attribute rule
Here is the AR rule that GP tool creates
Expects($feature, 'assetgroup', 'lifecyclestatus', 'assettype', 'terminalconfiguration', 'constructionstatus');
/*
Description: This rule finds the closet line and draws a line to the closest point on it. This can be used in a water or sewer network to draw the service line.
*/
var debug = [];
var laterals_rule_bit = 1;
if (($feature.dynamicvalue & laterals_rule_bit) != laterals_rule_bit) {
return;
}
var feature_template_value_lookup = [
{
"assettype": 3,
"assetgroup": 7,
"terminalconfiguration": "Default",
"lifecyclestatus": 2,
"constructionstatus": 6
},
{
"assettype": 1,
"assetgroup": 7,
"terminalconfiguration": "Default",
"lifecyclestatus": 2,
"constructionstatus": 6
}
];
var feature_to_template = [
{
"search_settings": {
"search_distance": 30.480060960121925,
"extend_to_class": "SewerLine",
"extend_to_sql": "ASSETGROUP = 1",
"extend_to_oid_field": "OBJECTID"
},
"start_at_feature": true,
"utility_network_settings": {
"use_associations": true
},
"points_at_start": [],
"points_at_end": [
{
"class_name": "SewerDevice",
"attributes": {
"assettype": 1,
"assetgroup": 21,
"terminalconfiguration": "Default",
"lifecyclestatus": 2,
"constructionstatus": 6
},
"is_proportional": 0,
"offset_distance": 0,
"side": 0,
"vertex_before_offset": true,
"distance": 3.048
},
{
"class_name": "SewerJunction",
"attributes": {
"assettype": 54,
"assetgroup": 20,
"lifecyclestatus": 2,
"constructionstatus": 6
},
"is_proportional": 0,
"offset_distance": 0,
"side": 0,
"vertex_before_offset": true,
"distance": 0
}
],
"lines": [
{
"class_name": "SewerLine",
"attributes": {
"assettype": 1,
"assetgroup": 3,
"lifecyclestatus": 2,
"material": "XXX",
"constructionstatus": 6
},
"two_point": true
}
]
},
{
"search_settings": {
"search_distance": 30.480060960121925,
"extend_to_class": "SewerLine",
"extend_to_sql": "ASSETGROUP = 1",
"extend_to_oid_field": "OBJECTID"
},
"start_at_feature": true,
"utility_network_settings": {
"use_associations": true
},
"points_at_start": [],
"points_at_end": [
{
"class_name": "SewerDevice",
"attributes": {
"assettype": 1,
"assetgroup": 30,
"terminalconfiguration": "Default",
"lifecyclestatus": 2,
"constructionstatus": 6
},
"is_proportional": 0,
"offset_distance": 0,
"side": 0,
"vertex_before_offset": true,
"distance": 3.048
},
{
"class_name": "SewerJunction",
"attributes": {
"assettype": 54,
"assetgroup": 20,
"lifecyclestatus": 2,
"constructionstatus": 6
},
"is_proportional": 0,
"offset_distance": 0,
"side": 0,
"vertex_before_offset": true,
"distance": 0
}
],
"lines": [
{
"class_name": "SewerLine",
"attributes": {
"assettype": 1,
"assetgroup": 3,
"lifecyclestatus": 2,
"material": "XXX",
"constructionstatus": 6
},
"offset_distance": 0,
"side": 0,
"vertex_before_offset": true,
"two_point": false
}
]
}
];
var round_Z_value_factor = 6;
// Lines less than this length, will not be processed, value is in meters
var min_line_length = 0;
function find_template_index() {
for (var i in feature_template_value_lookup) {
var valid_template = True;
for (var k in feature_template_value_lookup[i]) {
if ($feature[k] != feature_template_value_lookup[i][k]) {
valid_template = False;
break;
}
}
if (valid_template){
return i;
}
}
return -1;
}
function featureset_by_name_switchyard(class_name) {
if (class_name == 'SewerLine'){
return FeatureSetByName($datastore, 'main.SewerLine', ['OBJECTID'], true);
}
}
function get_point_along_location(pull_back, is_proportional, from_start) {
//This only works on 2 point lines
// Calculate the location of the distance, using percentage. Return the point and the distance from the start
var percent_along;
if (is_proportional == true || is_proportional == 1) {
percent_along = pull_back / 100;
} else {
percent_along = Min([1, pull_back / lateral_line_length]);
}
var a = start_point;
var b = end_point;
var x1 = a.X;
var y1 = a.Y;
var z1 = a.Z;
var x2 = b.X;
var y2 = b.Y;
var z2 = b.z;
var dx = (x2 - x1) * percent_along;
var dy = (y2 - y1) * percent_along;
var dz = (z2 - z1) * percent_along;
if (from_start) {
return [Point({
x: x1 + dx,
y: y1 + dy,
z: z1 + dz,
spatialReference: spat_ref
}), lateral_line_length * percent_along];
} else {
return [Point({
x: x2 - dx,
y: y2 - dy,
z: z2 - dz,
spatialReference: spat_ref
}), lateral_line_length - (lateral_line_length * percent_along)];
}
}
function find_closest_line(fs, search_distance) {
var candidates = Intersects(fs, Buffer($feature, search_distance, 'meters'));
var shortest = [Infinity, null];
for (var line in candidates) {
var d = Distance($feature, line);
if (d < shortest[0]) {
shortest = [d, line];
}
}
return shortest[-1];
}
function create_line(point_list) {
var path_coords = [];
for (var i in point_list) {
var pnt = point_list[i];
Push(path_coords, [pnt.X, pnt.Y, pnt.Z]);
}
return Polyline({
"paths": [path_coords],
"spatialReference": spat_ref
});
}
// Used to check different empty null states, override of core IsEmpty
function IsEmptyButBetter(data) {
if (IsEmpty(data)) return true;
for (var x in data) return false;
return true;
}
function pDistance_with_ZM(x, y, x1, y1, z1, m1, x2, y2, z2, m2) {
// adopted from https://stackoverflow.com/a/6853926
var A = x - x1;
var B = y - y1;
var C = x2 - x1;
var D = y2 - y1;
var dot = A * C + B * D;
var len_sq = C * C + D * D;
var param = -1;
if (len_sq != 0) //in case of 0 length line
param = dot / len_sq;
var line_length = Sqrt(len_sq);
var xx, yy, zz, mm;
var is_vertex = true;
mm = null;
if (param < 0) {
//Start of the line
xx = x1;
yy = y1;
zz = z1;
mm = m1;
} else if (param > 1) {
//End of the line
xx = x2;
yy = y2;
zz = z2;
mm = m2;
} else {
xx = x1 + param * C;
yy = y1 + param * D;
dx = xx - x1;
dy = yy - y1;
var distance_to_coord = Sqrt(Abs(dx * dx + dy * dy));
zz = Round((z2 - z1) * (distance_to_coord / line_length), round_Z_value_factor);
if (m1 == null || IsNan(m1) || m2 == null || IsNan(m2)) {
mm = null;
} else {
mm = (m2 - m1) * (distance_to_coord / line_length);
}
is_vertex = false;
}
var dx = x - xx;
var dy = y - yy;
// Note, this distance is the distance the point away from the line
return [Sqrt(dx * dx + dy * dy), [xx, yy, zz, mm], is_vertex];
}
function coordinate_to_xyzm(coordinate, hasZ, hasM) {
var x, y;
var z = 0;
var m = null;
if (TypeOf(coordinate) == 'Point') {
x = coordinate.x;
y = coordinate.y;
if (hasZ) {
z = coordinate.z;
}
if (hasM) {
m = coordinate.m;
}
} else {
x = coordinate[0];
y = coordinate[1];
if (hasZ) {
z = coordinate[2];
}
if (hasM && hasZ) {
m = coordinate[3];
} else if (hasM) {
m = coordinate[2];
}
}
return [x, y, z, m];
}
function get_location_info(line_geometry, X, Y) {
// Check if the line has already been converted to a dict
var line_shape = null;
var hasZ, hasM;
if (TypeOf(line_geometry) == 'Dictionary') {
line_shape = line_geometry;
} else {
// As of 3.2, can remove the call to Text
line_shape = Dictionary(Text(line_geometry));
}
hasZ = line_geometry['hasZ'];
hasM = line_geometry['hasM'];
var min_distance = Infinity;
var segment_id = [];
var line_path = line_shape['paths'];
for (var i in line_path) {
var current_path = line_path[i];
// Loop over vertex, exit when at last vertex
for (var j = 0; j < Count(current_path) - 1; j++) {
var from_coord = coordinate_to_xyzm(current_path[j], hasZ, hasM);
var to_coord = coordinate_to_xyzm(current_path[j + 1], hasZ, hasM);
var shortest = pDistance_with_ZM(X, Y, from_coord[0], from_coord[1], from_coord[2], from_coord[3], to_coord[0], to_coord[1], to_coord[2], to_coord[3]);
var dist = shortest[0];
var coordinates = shortest[1];
var isVertex = shortest[2];
if (dist <= min_distance) {
segment_id = [i, j, coordinates, isVertex, dist];
min_distance = dist;
}
}
}
if (IsEmptyButBetter(segment_id)) {
return [];
}
// return just the new coordinate
return segment_id;
}
function process_points(template_list, from_start) {
for (var i in template_list) {
var edit_template = template_list[i];
var dist = 0;
var is_proportional = false;
var feature_geo;
var distance_down;
var results;
if (HasValue(edit_template, "distance")) {
dist = edit_template.distance;
}
if (HasValue(edit_template, "is_proportional")) {
is_proportional = edit_template.is_proportional;
}
if (dist != 0) {
results = get_point_along_location(dist, is_proportional, from_start);
feature_geo = results[0];
distance_down = results[1];
} else {
feature_geo = iif(from_start == true, start_point, end_point);
distance_down = iif(from_start == true, 0, lateral_line_length);
}
// Convert distance to text to use as key of dict, round at text to number can change precision
distance_down = Text(Round(distance_down, 4));
if (!HasKey(new_feature_at_distance, distance_down)) {
new_feature_at_distance[distance_down] = [];
}
Push(new_feature_at_distance[distance_down],
{
"class_name":edit_template.class_name,
"geometry": feature_geo,
'attributes': edit_template.attributes
});
}
}
function add_vertex_to_extend_to_class(line_geometry, oid) {
// Add a vertex to the closets line if needed
if (at_vertex) {
return;
}
// At 3.2, we can remove the call to text
var line_geo_dict = Dictionary(Text(line_geometry));
Insert(line_geo_dict['paths'][path_index], segment_index + 1, snapped_loc);
if (!HasKey(updated_features, edit_template_info.search_settings.extend_to_class)) {
updated_features[edit_template_info.search_settings.extend_to_class] = [];
}
Push(updated_features[edit_template_info.search_settings.extend_to_class],
{
'objectID': oid,
'geometry': Polyline(line_geo_dict)
});
}
function process_lines(template_list, line_geo) {
var edit_template;
for (var i in template_list) {
edit_template = template_list[i];
if (!HasKey(new_features, edit_template.class_name)) {
new_features[edit_template.class_name] = [];
}
if (edit_template.two_point == true || edit_template.two_point == 1) {
for (var j = 0; j < Count(line_geo.paths[0]) - 1; j++) {
var two_point_geo = create_line(Slice(line_geo.paths[0], j, j + 2));
Push(new_features[edit_template.class_name],
{
"geometry": two_point_geo,
'attributes': edit_template.attributes
});
}
} else {
Push(new_features[edit_template.class_name],
{
"geometry": line_geo,
'attributes': edit_template.attributes
});
}
}
}
function sort_new_features(feat_dict, from_start) {
var keys = [];
for (var v in feat_dict) {
Push(keys, Number(v));
}
keys = Sort(keys);
if (!from_start) {
keys = Reverse(keys);
}
var sorted_features = {};
var vertices_list = [];
var tag_list = [];
for (var i in keys) {
var new_feat_list = feat_dict[Text(keys[i])];
// Loop over all the features at that location and add them to the new features dict. tag them so we can make associations later if needed
for(var j in new_feat_list) {
var new_feat = new_feat_list[j];
var assoc_tag = i + "::" + j;
if (!HasKey(sorted_features, new_feat.class_name)) {
sorted_features[new_feat.class_name] = [];
}
var n_d = {
"geometry": new_feat.geometry,
'attributes': new_feat.attributes,
'tag': assoc_tag
};
if (i == 0 && j ==0 && create_assoc){
n_d.associationType = 'connected';
}
Push(sorted_features[new_feat.class_name], n_d);
Push(tag_list, [assoc_tag, new_feat.class_name]);
}
if (i != 0 && i != lateral_line_length){
// store only the first feat if there are more than one at a location
Push(vertices_list, new_feat_list[0].geometry)
}
}
return [sorted_features, vertices_list, tag_list];
}
var template_index = find_template_index();
if (template_index == -1) {
return;
}
var edit_template_info = feature_to_template[template_index];
if (IsEmptyButBetter(edit_template_info)) {
return;
}
var create_assoc = edit_template_info.utility_network_settings.use_associations;
// Convert the input point to xyzm
var point_geo = Geometry($feature);
var point_coords = coordinate_to_xyzm(point_geo, point_geo.hasZ, point_geo.hasM);
var spat_ref = point_geo.spatialReference;
point_geo = Point({
x: point_coords[0],
y: point_coords[1],
z: point_coords[2],
m: point_coords[3],
spatialReference: spat_ref,
hasM: true,
hasZ: true
});
var fs = featureset_by_name_switchyard(edit_template_info.search_settings.extend_to_class);
if (edit_template_info.search_settings.extend_to_sql != null) {
fs = Filter(fs, edit_template_info.search_settings.extend_to_sql);
}
var closest = find_closest_line(fs, edit_template_info.search_settings.search_distance);
if (closest == null) {
return;
}
var closet_line_geo = Geometry(closest);
var snapped_info = get_location_info(closet_line_geo, point_geo.X, point_geo.Y);
if (IsEmptyButBetter(snapped_info)) {
return;
}
var path_index = snapped_info[0];
var segment_index = snapped_info[1];
var snapped_loc = snapped_info[2];
var at_vertex = snapped_info[3];
// Generate the line connecting the point to the line
var snapped_point = Point({
x: snapped_loc[0],
y: snapped_loc[1],
z: snapped_loc[2],
spatialReference: spat_ref
});
// Create the line from $feature to the snap point in the orientation specified in the edit template
var start_point;
var end_point;
var from_start = edit_template_info['start_at_feature'];
if (from_start) {
start_point = point_geo;
end_point = snapped_point;
} else {
start_point = snapped_point;
end_point = point_geo;
}
if (Equals(start_point, end_point)) {
return;
}
// Create the line, this is used to determine the point locations along
var lateral = create_line([start_point, end_point]);
var lateral_line_length = Length(lateral, 'meters');
// If line is less than min required length, exit
if (lateral_line_length < min_line_length) {
return;
}
// Create dicts to hold new and updated features
var new_feature_at_distance = {};
// Process all the points along, these are the points from end and beginning
process_points(edit_template_info.points_at_start, true);
process_points(edit_template_info.points_at_end, false);
var updated_features = {};
// Sort the new points along by their distance
var sorted_features_vertices = sort_new_features(new_feature_at_distance, from_start);
var new_features = sorted_features_vertices[0];
var vertices = sorted_features_vertices[1];
var assoc_tags = sorted_features_vertices[2];
// Recreate the line geometry
// Insert the start and end points
Insert(vertices, 0, start_point);
Push(vertices, end_point);
lateral = create_line(vertices);
// Process all line templates
process_lines(edit_template_info.lines, lateral);
// To connect the new features to the exiting, a vertex is require, add one if needed.
add_vertex_to_extend_to_class(closet_line_geo, closest[edit_template_info.search_settings.extend_to_oid_field]);
// create the return edit payload
var return_edits = [];
for (var k in new_features) {
Push(return_edits, {'className': k, 'adds': new_features[k]});
}
for (var k in updated_features) {
Push(return_edits, {'className': k, 'updates': updated_features[k]});
}
if (create_assoc){
var assoc_rows = []
for (var i =0; i< Count(assoc_tags) -1; i++){
var from_assoc_tag = assoc_tags[i][0];
var from_assoc_cls = assoc_tags[i][1];
var to_assoc_tag = assoc_tags[i+1][0];
var to_assoc_cls = assoc_tags[i+1][1];
Push(assoc_rows,{
"fromClass":from_assoc_cls,
"fromGlobalId":from_assoc_tag,
"toClass": to_assoc_cls,
"toGlobalId": to_assoc_tag,
"associationType": "connectivity"
})
}
Push(return_edits, {'className': '^UN_Association', 'adds': assoc_rows});
}
//console(debug);
return {
'result': {
'attributes':
{
'dynamicvalue': $feature.dynamicvalue ^ laterals_rule_bit
}
},
"edit": return_edits
}
by
I have a question about this tool.
I am pointing it to the Water Junction layer (tool won't take inputs from the UN feature service) and the group template I have is identical to the one in the editing map that has the service valve and meter.
I am getting this error upon execution:
[2024-12-05 12:07:05] iar 0.3.4
[2024-12-05 12:07:06]
line 143, in get_data_path_from_layer
TypeError: unsupported operand type(s) for /: 'NoneType' and 'str'
Failed script Create Along Point To Feature...
Failed to execute (CreateAlongPointToFeature).
Does this need to be a subtype group layer pointing to the DB (not the feature service)? Or can it be a FeatureLayer referencing the FC without the subtype. I have also seen some attribute rules on the github for creating laterals. Any help is much appreciated! Thanks as always!
by
by
