Hello community,
I would like to load a GLTF on a map using its orignal symbology.
Following this documentation (https://developers.arcgis.com/javascript/latest/visualization/3d-visualization/visualizing-points-3d...), I am able to convert a GLTF into a single geometry and add it to a map.
But the symology of the loaded geometry is not the same as the original.

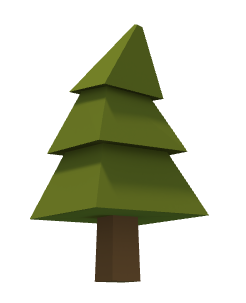

Original (expected) | Loaded |
What I do is to add the geometry without specifying any symbology. Maybe it is incorrect?
Mesh.createFromGLTF(location, "https://developers.arcgis.com/javascript/latest//sample-code/geometry-mesh-elevation/live/pine_tree.glb")
.then(function (geometry) {
geometry.scale(1, { origin: location });
geometry.rotate(-90, 0, 0);
const graphic = new Graphic({geometry});
view.graphics.add(graphic);
})
.catch(console.error);
As you can see in my sample code (https://codepen.io/blecuona/pen/ZEVxXxN), colors are automatically modified.
I am doing something wrong? Is there any solution to my problem?
Thanks for your help.
Solved! Go to Solution.
Hello, Benjamin!
You are correct in that you would need to specify symbology when creating a geometry object.
This modification of your code provides the result you are looking for:
const graphic = new Graphic({
geometry,
symbol: {
type: "mesh-3d",
symbolLayers: [{
type: "fill",
material: {
colorMixMode: "tint"
}
}]
}});
Hope this helps! 🙂
Hello, Benjamin!
You are correct in that you would need to specify symbology when creating a geometry object.
This modification of your code provides the result you are looking for:
const graphic = new Graphic({
geometry,
symbol: {
type: "mesh-3d",
symbolLayers: [{
type: "fill",
material: {
colorMixMode: "tint"
}
}]
}});
Hope this helps! 🙂
I didn't saw your answer, so thank you it is perfect!
Specifiy material.colorMixMode is not necessary, default values are enough.
