Javier,
when i run the program i put in some write statements:
from tkinter import *
from tkinter import messagebox
import Tkinter, arcpy
myMap = arcpy.mapping.MapDocument("C:/GISMAPS/LUS Map.mxd")
#myMap = arcpy.mapping.MapDocument("CURRENT")
geodatabase = "C:\gismaps\LusData.mdb"
dataset = "ElectricData"
feature_class = "PriOHElectricLineSegment"
window = Tk()
window.title("Feeders Selection")
window.geometry("680x500")
window.iconbitmap('C:/GISMAPS/lus.ico')
#Define the frame for the feeders to be displayed
frame = Frame(window)
frame.grid(row=1, column=1, padx=15, pady=5)
listNodes = Listbox(frame, width=10, height=10, font=("Helvetica", 10))
listNodes.pack(side="left", fill="y")
#Define the scrollbar in frame window
scrollbar = Scrollbar(frame, orient="vertical")
scrollbar.config(command=listNodes.yview)
scrollbar.pack(side="right", fill="y")
listNodes.config(yscrollcommand=scrollbar.set)
#Add the selection of all feeders
for item in [2050, 2051, 2052,
3050, 3051, 3052, 3550,
4050, 4051, 4052,
5050, 5051, 5052]:
listNodes.insert(END, item)
feeder = listNodes.get(ACTIVE)
#Define all of the checkboxes
prioh_var = IntVar()
priug_var = IntVar()
secoh_var = IntVar()
secug_var = IntVar()
fuse_var = IntVar()
switch_var = IntVar()
sp_var = IntVar()
cap_var = IntVar()
rec_var = IntVar()
pinhook_var = IntVar()
mall_var = IntVar()
peck_var = IntVar()
pri_oh = Checkbutton(window, text = "Primary Overhead", variable = prioh_var,onvalue = 1, offvalue = 0, height=2, width = 20).place(x=2, y=175)
pri_ug = Checkbutton(window, text = "Primary Underground", variable = priug_var,onvalue = 1, offvalue = 0, height=2, width = 20).place(x=12, y=200)
sec_oh = Checkbutton(window, text = "Secondary Overhead", variable = secoh_var,onvalue = 1, offvalue = 0, height=2, width = 20).place(x=8, y=225)
sec_ug = Checkbutton(window, text = "Secondary Underground", variable = secug_var,onvalue = 1, offvalue = 0, height=2, width = 20).place(x=18, y=250)
fuse = Checkbutton(window, text = "Fuse", variable = fuse_var,onvalue = 1, offvalue = 0, height=2, width = 20).place(x=400, y=10)
switch = Checkbutton(window, text = "Switch", variable = switch_var,onvalue = 1, offvalue = 0, height=2, width = 20).place(x=405, y=35)
servicepoint = Checkbutton(window, text = "Service Point", variable = sp_var,onvalue = 1, offvalue = 0, height=2, width = 20).place(x=420, y=88)
capacitor = Checkbutton(window, text = "Capacitor", variable = cap_var,onvalue = 1, offvalue = 0, height=2, width = 20).place(x=412, y=60)
recloser = Checkbutton(window, text = "Recloser", variable = rec_var,onvalue = 1, offvalue = 0, height=2, width = 20).place(x=409, y=87)
pinhook = Checkbutton(window, text = "Pinhook", variable = pinhook_var, state = DISABLED, onvalue = 1, offvalue = 0, height=2, width = 20).place(x=175, y=15)
mall = Checkbutton(window, text = "Mall", variable = mall_var, state = DISABLED, onvalue = 1, offvalue = 0, height=2, width = 20).place(x=165, y=45)
peck = Checkbutton(window, text = "Peck", variable = peck_var, state = DISABLED, onvalue = 1, offvalue = 0, height=2, width = 20).place(x=165, y=75)
#Commit all of the options
def commit():
#my_label = IntVar()
feeder = listNodes.get(ACTIVE)
print feeder
#my_label = Label(window, text=prioh_var.get()).pack()
#check to see which inputs have been selected
if prioh_var.get() == 1:
print("pri_oh = 1")
# show primary overhead feeder where feederid = feeder -ie: [FEEDERID] = "2050"
print "Primary_OH"
Primary_OH_path = r"{0}\{1}\{2}".format(geodatabase, dataset, feature_class)
Primary_OH = arcpy.MakeFeatureLayer_management(Primary_OH_path, "Primary_OH_layer2")
print Primary_OH
else:
print("pri_oh = 0")
# do not display primary overhead feeder for [FEEDERID] = "2050"
if priug_var.get() == 1:
print("pri_ug = 1")
arcpy.SelectLayerByAttribute_management(Primary_UG, "", "[FEEDERID] = '2050'")
else:
print("pri_ug = 0")
Button(window, text="commit", command=commit).place(x=300, y=350)
#Quit the program
Button(window, text="Quit", command=window.destroy).place(x=400, y=350)
window.mainloop()

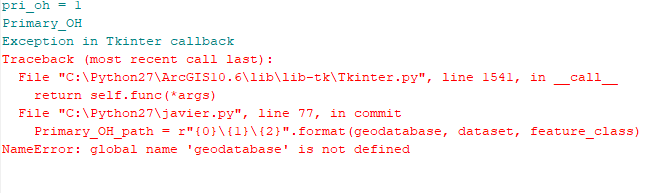

for the print statement on line 83 the output is: Primary_OH_layer2. Should it show the feeder number which is 2050? Line 73 does print the correct number
Since the program gives an error when i run it a second time because the layer has been created, how do i modify the code so that this will not happen. Do i need to change the MakeFeatureLayer_management?
