Raster to Polygon GP Tool Creating Offset Vector Output

302
1
06-23-2022 07:48 AM
AliWertheim2
New Contributor

I am trying to use the Raster to Polygon geoprocessing tool to vectorize polygons from an image, but the output polygon layer does not line up with the original image layer. I've ensured that the projection for both layers are the same, and cannot seem to figure out why this is happening. I've encountered this same error multiple times with different images, in many versions of ArcPro. Hoping someone has a simple fix that I'm missing. Here are my steps outlined below:

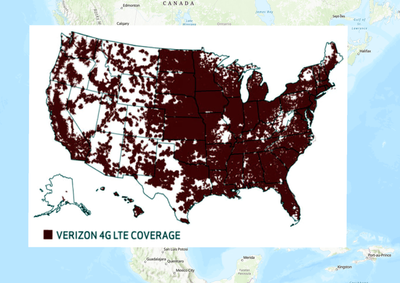

1. Georeference screenshot of an image "Verizon_polys.jpg"

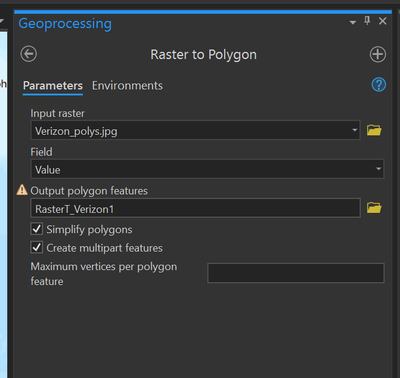

2. Run 'Raster to Polygon' on the georeferenced image


3. Isolate the values which contain the red data from the map, which are the polygons I am trying to extract


4. Export those values as a feature class (Blue = exported polygon feature class)

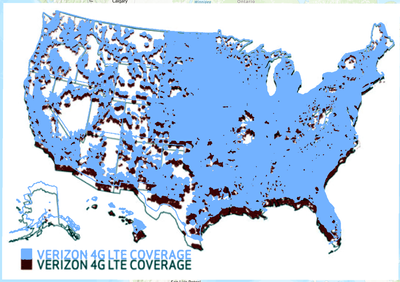

As is shown in the last image, at the top of the feature class the data aligns perfectly. As it moves towards the bottom it becomes more and more offset from the original raster image. Any help here is appreciated!



0 Kudos
1 Reply
by Anonymous User
Not applicable

Hi:

Can you describe exactly how you are georeferencing your jpg and how you are exporting the selected polygons?

Instead of working with a screenshot, you might be interested in this FCC web site which provides shapefiles for provider coverage areas.

https://us-fcc.app.box.com/s/f220avmxeun345o6gzr7rwcnp1wslocf



Regards,

-James TenBrink

spatial analyst team
