Distance and angle

[KathyLeonard]

Does anyone have a tool to calculate distance and angle at the same time

[AlixVezina]

Hi @KathyLeonard ,

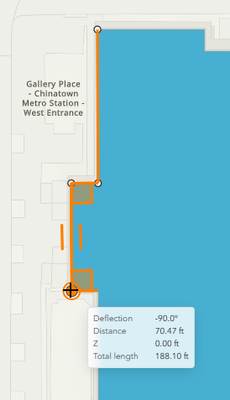

The Draw tool in Experience Builder may provide what you need out-of-the-box? You can also enable snapping in the widget so you can snap along features as you draw to see the measurements.

Here's a sample: Draw widget and measurements

Press Tab on your keyboard while drawing to enter values and change the type of angle.

[shodge_fsu]

For those of you wondering, this must be a new feature for the draw widget.  1.16 developer edition does not have this ability.  I did not see any description of this in the "What's New"  that came out February 2025.

[AlixVezina]

In the What's New from the February 2025 release, these are referred to as the Tooltips. You'll find the same functionality in the Edit widget.

[shodge_fsu]

Thank you @AlixVezina  for the clarification.  The toggle for the tooltips is found by clicking on the new settings icon when the widget is activated.
