Get Started with ArcGIS Image for ArcGIS Online
ArcGIS Image for ArcGIS Online, is a complete SaaS offering that provides capabilities for hosting, analyzing, and streaming imagery and raster collections in the cloud. It provides a new option for performing image analysis in the cloud without the need to install any software. For those who are teaching, this product provides an easy way for the students to learn image analysis and exploration.
Following is a list of topics and resources to help you getting started and get familiar with ArcGIS Image for ArcGIS online.
Webinar: Introducing ArcGIS Image for ArcGIS Online: Access to recording | Slide deck
Enabling ArcGIS Image for ArcGIS Online
The following steps need to be executed by ArcGIS Online Administrator
- Sign-in to your ArcGIS Online org as Administrator
- Choose Organization > Licenses

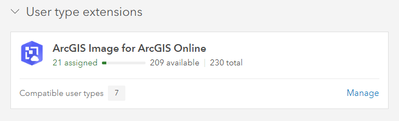

- Scroll down and find section for User type extensions
- Click Manage
- Assign the extension to the members who will need to use the extension
Notes: If you are using custom role for your members, in addition to enable user type extension, the following privileges (in Settings) need to be turned on:
|
Publish imagery layers
All imagery files must be published into hosted imagery layers in ArcGIS Online. There are two types of hosted imagery layers supported in ArcGIS Online.
Tiled imagery layers
Tiled imagery layers – Analysis and rendering are done on the client machine, and imagery is processed as static tiles for faster rending. It is still maintained full pixel fidelity. Tiled imagery layers can be used for analysis, and support different bands, bits, and multiple dimensions. It is fast and performant, takes less credits to use, and better in handling many requests. Tiled imagery layers support all sharing options, including Public.
Resources to learn more about tiled imagery layers:
- Create Tiled Imagery (2:11 video)
- Work with Tiled Imagery (3:01 video)
Dynamic imagery layers
Dynamic imagery layers – Analysis and rendering are done one the ArcGIS Online server machines, and image collections are supported, maintaining the original image file formats. It is based to serve for overlapping, multiresolution, multitemporal imagery or image collections (analogous to mosaic datasets). Dynamic imagery layers cost more credits to serve and at this release, dynamic imagery layers cannot be served publicly.
Resources to learn more about dynamic imagery layers:
- Create Dynamic Imagery (1:59 video)
More on the topic: Your Guide to Sharing Imagery & Raster Data
Best practices: We recommend using Tiled imagery layers first, as it is powerful, faster performance, can be used for analysis, and takes less credits for storing and performing analysis. If it does not work for your workflow, then try Dynamic imagery layers. |
Performing Raster Analysis
Once you have your imagery published to your organization, you can use raster analysis tools and raster functions accessible from Map Viewer (Classic). Inputs and output can be from tiled or dynamic imagery layers.

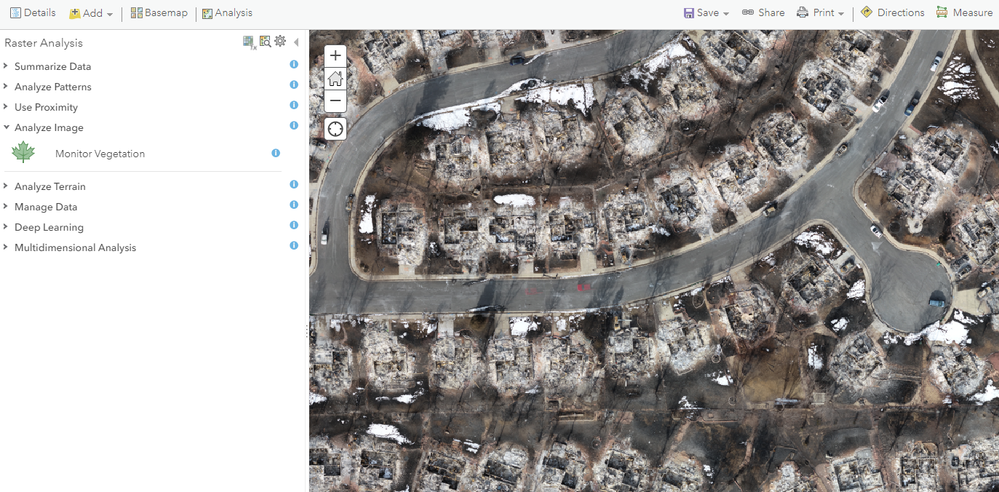

Raster Analysis Tools
In the current release, there are 20 + Raster Analytics tools, from simpler tools such as Extract Raster and Calculate Slope to more advance tools such as detect Objects Using Deep Learning and Aggregate Multidimensional Raster.
Resources to learn about raster analysis in ArcGIS Online:
Note: For all Raster analysis tools, ArcGIS Online will prompt for confirmation when more than 50 credits will be required for analysis.
Raster Functions

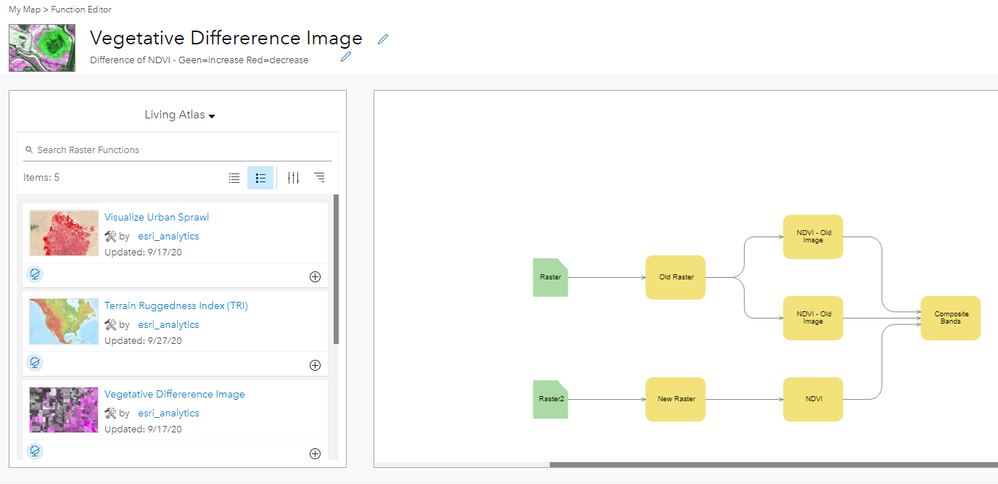

In additional to ready-to-use raster analysis tools, there are 150 + Raster Functions available to use, together with Raster Function Editor, a visual programming interface for building imagery and raster analysis processing chains, that further can be saved as raster function templates.
Resources to learn about raster function in ArcGIS Online:
Access for developers
Access to imagery layers and raster analysis can also through ArcGIS Python libraries:
- ArcGIS API for Python: A simple and lightweight library for managing imagery and raster data, managing Web GIS, and performing advanced image analysis
- ArcPy: A comprehensive and powerful library for imagery and raster analysis, data management and conversion
Use ArcGIS Notebooks in ArcGIS Online or ArcGIS Pro as the IDE for working with these libraries.
- NEW LESSON: Analyze imagery with ArcGIS Notebooks
Best Practices
Some best practices to consider for working with ArcGIS Image for ArcGIS Online for teaching or research:
- Set credits limit for each member working imagery data and analysis, enough for them to work comfortably (e.g set for 1000 – 3000 credits to start with). Administrator can add more credits if necessary
- For teaching, recommended workflow is for the Instructor to publish the raster dataset into Imagery layer (preferably Tiled Imagery Layer) and share with the students. In that way, each student does not need to upload and host the same data, instead use the shared imagery layer for analysis.
- Clean up (delete) any raster imagery items or intermediate result items that are no longer needed after the class (or in research) to save storage costs
Additional Resources
Get overview of the capabilities of ArcGIS Image for ArcGIS Online by watching this video.
- ArcGIS Image for ArcGIS Online Implementation Guide
- Get to know ArcGIS Image for ArcGIS Online
- Lesson:
- Blogs:
- Raster Analytics and Deep Learning in ArcGIS Online
- Actionable Information from Imagery
- Direct Publishing of Airbus Imagery to ArcGIS Image for ArcGIS Online using ArcGIS Notebooks
ArcGIS Image for ArcGIS Online – Bringing Imagery and GIS analysis together
- Control the visualization of your imagery with dynamic imagery layers
- How can tiled imagery layers from ArcGIS Image for ArcGIS Online make your imagery more useful?
- ArcGIS Image for ArcGIS Online advantages for your organization
Contact Canserina Kurnia (ckurnia@esri.com) if you need more information or need assistance in using ArcGIS Image for ArcGIS Online in your classroom or research.
