Coincident Lines - No Error

423
3
09-01-2022 06:45 AM
G_Dillenger
Occasional Contributor

Hi,

I created duplicate line data by accident. The utility network did not pick it up. I thought the topology engine would know when coincident line data is here, similar to stacked points.

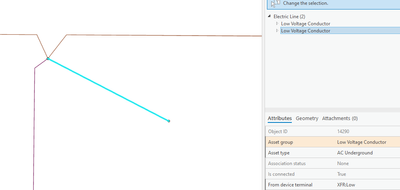

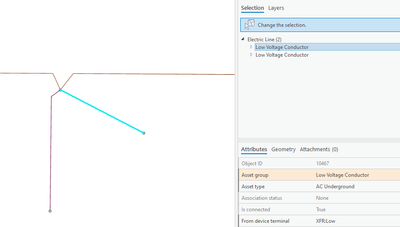

I recreated the example in the sample data above. Both features have the same terminals and subnetwork name. Pro 2.9.4, UN V5, FGDB

I found this odd since this was a problem we had in the geometric network. I'm hoping I'm doing something wrong. Is this expected?



0 Kudos
3 Replies
Jens_Dalsgaard
Frequent Contributor

What you report as an error could very well be a real-world scenario - parallel connections (overhead lines / cables) between two point in the network.

You'll likely have to do your own analysis to find line features with duplicate geometries.

Jens Dalsgaard
Principal Product Owner
Power Grid, V O L U E
jens.dalsgaard&@volue.com
Volue Technology Denmark A/S
Alfred Nobels Vej 27
9220 Aalborg Øst, Denmark
volue.com
G_Dillenger
Occasional Contributor

I appreciate your response Jens. Perhaps so, but I would expect an offset if parallel. No worry of a loop condition here with a radial network? Not tested that yet.

0 Kudos
G_Dillenger
Occasional Contributor

I done more testing around coincident lines. What I found is that at the real world scenario you mentioned actually does not work in the utility network, as the subnetwork stops where coincident lines occurs. I was hoping that the utility network was going to help me finding these situations and mark it as an error.

Here is my example:

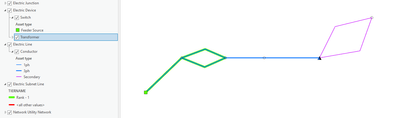

Highlight green is my subnetwork. I spread the lines apart for visualization, but the result is the same when coincident. My previous example had it at an place where it was supposed to stop.

A warning during subnetwork building would be greatly appreciated!
