Append Selected object network Diagram

1261
5
02-07-2021 02:27 AM
GIS_Solutions
Frequent Contributor

Hello everybody


I Want to append network elements currently selected in the active map to a network diagram. But There is a message saying "there is no valid maps"

How can i append this object?

Thank you.

Tags (1)
0 Kudos
5 Replies
GIS_Solutions
Frequent Contributor

?

0 Kudos
AYBlin
by
Emerging Contributor

Hello

My apologies for the late reply.

Indeed, you can't append network features to the open diagrams in the following situations:

  • There are unsaved edits
  • The All Layers mode is not turned on on the diagram map to which you want to append new network features
  • This diagram is based on a template that doesn’t allows to extend diagrams
  • The diagram is historical and is considered as read-only
  • Another limitation is when working with a database connection to a utility network in an enterprise geodatabase; the Append to Diagram command only applies to a network diagram layer that is from either a network in a file geodatabase or a utility network service.

You must make sure that you are out of all these situations

Thanks

0 Kudos
bhaskarsingh1se
Emerging Contributor

Hello @AYBlin ,

I am also facing the same issue. I have already checked all above options.

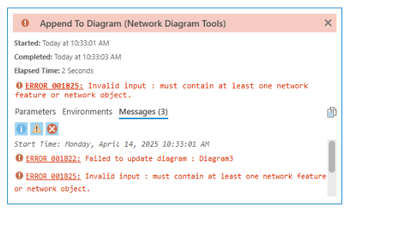

but I am getting this error.

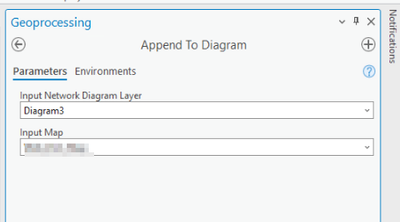

Do you know what its asking for. I am running GP Tool because this tools never worked for me.




0 Kudos
bhaskarsingh1se
Emerging Contributor

@GIS_Solutions  Did you ever figure out what the main issue is here?

0 Kudos
AnneYvonneBlin
Esri Contributor

Hello @bhaskarsingh1se

This message means that the Append operation didn't find any network features/objects currently selected in the specified/active network map.
Please check the following points
- Do you already select the network features/objects you want to append to your diagram?

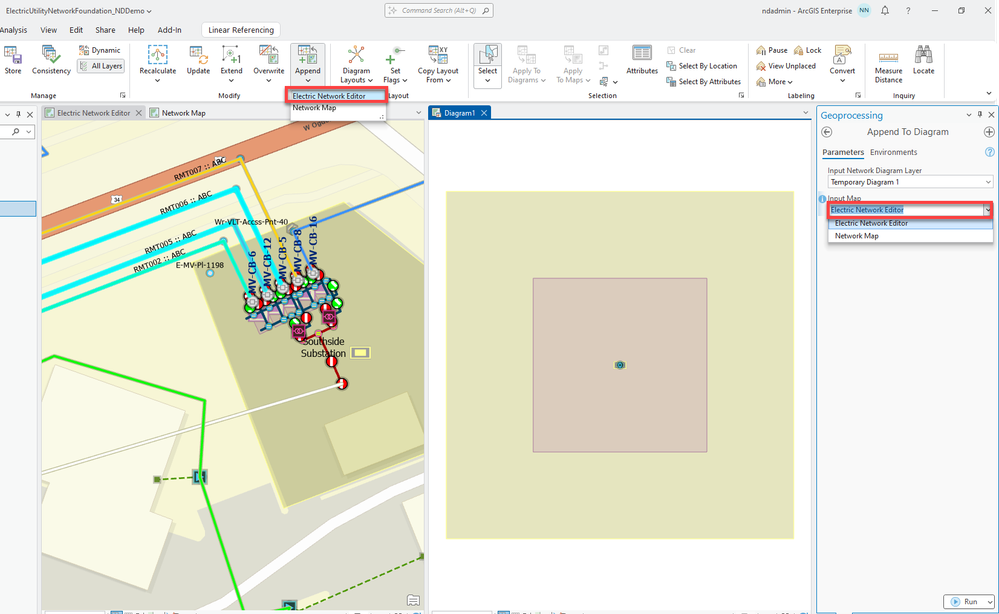

- If yes, in which network map is this selection set ? Did you specify that input network map so the append command searches for these input selected features/objects; that is, did you select the right map from the Input Map drop down list in the tool, or from the list under the Append button in the Network Diagram ribbon?




Please also make sure that the features/objects selected in this map are "network" features/objects; that is,  they are related to network source classes.
Any selected feature/object that doesn't belong to any network source class cannot be used to create any diagram, nor to be appended to any existing diagram.
