Percent Coverage of overlapping polygons

[RyanBohan]

Hi Community,

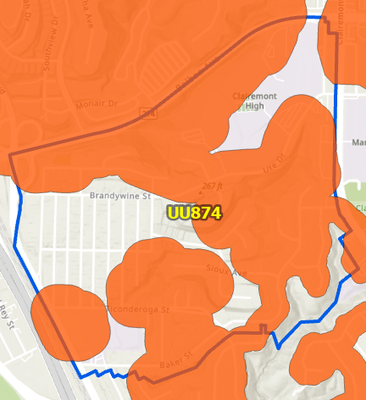

I am working to update a model.  My goal is to find the Percent Coverage of the District Boundary (Blue polygon) that is covered by the High Fire Zone (Red Polygon).  Ideally, I would like to add a field to the District Boundary with the percentage coverage ie 50%.  The logic will be used in a model throughout the city.

• Previously model ran an intersection ran between the two polygons and divided the High Fire Zone Shape_Area by District Boundary Shape_Area.  I might have been in GIS too long, and I don't fully trust the Shape_Area is automatically updated as units are edited.

[IssyAmis · Accepted solution]

Hi @RyanBohan

I believe to achieve this you should be able to use either of the following tools if you want to look into these:

Summarize Within (Analysis)—ArcGIS Pro | Documentation

Tabulate Intersection (Analysis)—ArcGIS Pro | Documentation

From the looks of your description, I think one of those tools should fit your workflow nicely but do let me know if you'd like any further help with specifics.

Thanks,

Issy

[RyanBohan]

@IssyAmis Thank you,

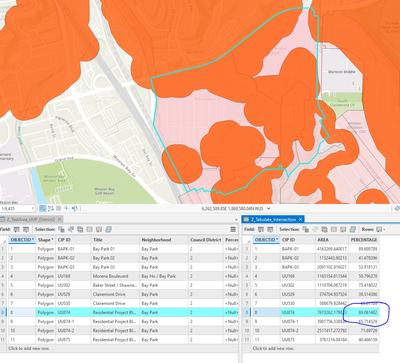

The Tabulate Intersections is exactly what I was looking for.  Easy to generate table, quick join and field calculation and I know the percent coverage of High Fire Zone.
