'Ghost' line between polygons after merging

1082
2
Jump to solution
02-10-2024 10:12 PM
HanliePetoors
Frequent Contributor

Hi,

I'm working on Windows 10, ArcGIS Pro 3.2.2 in a file gdb.

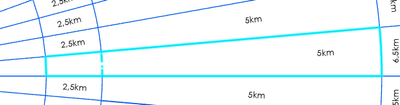

After merging two polygons I get this 'ghost' line between the two previous polygons. In the illustration below I have merged only one polygon.


When I identify or select I get the whole polygon but the ghost lines are still visible:


I've run repair geometry on the feature class but that fixed nothing.

Anyone come across this before? What do those ghost lines mean and how do I get rid of them?

Thanks

Hanlie

Tags (1)
0 Kudos
1 Solution

Accepted Solutions

The first thing I can think to troubleshoot is to hit "Edit Vertices" and see what you get.

This almost looks like it's being stored as a multi-part polygon that happens to be contiguous.



Quick fix, you can delete the offending vertices if they are there.  But the bigger issue is likely in the base dataset: Did you allow multipart polygons?  Should you have?  Is there some other reproducible bug?

------------------------------
M Reed
"The pessimist may be right oftener than the optimist, but the optimist has more fun, and neither can stop the march of events anyhow." — Robert A. Heinlein, in Time Enough for Love

View solution in original post

2 Replies

The first thing I can think to troubleshoot is to hit "Edit Vertices" and see what you get.

This almost looks like it's being stored as a multi-part polygon that happens to be contiguous.



Quick fix, you can delete the offending vertices if they are there.  But the bigger issue is likely in the base dataset: Did you allow multipart polygons?  Should you have?  Is there some other reproducible bug?

------------------------------
M Reed
"The pessimist may be right oftener than the optimist, but the optimist has more fun, and neither can stop the march of events anyhow." — Robert A. Heinlein, in Time Enough for Love
HanliePetoors
Frequent Contributor

Hi @MErikReedAugusta ,

You're right, I could fix the problem by editing the vertices and deleting the ones that were causing the 'ghost' lines.

I think the original polygons had slight gaps or overlaps and that is what caused the problem. The original was supplied by a client and so I'm not in control of how they created that.

Good lesson for the future: check first for slivers/gaps!

Regards

Hanlie
