Hi all,

I have a set of lines that denote a direction of movement.  I would like to create 45 degree sectors that are centred on each line (i.e.) 22.5 degrees on either side of the existing line.  I've tried the distance and direction tool but not sure if it's the correct tool for the job or if I'm not using it correctly - any suggestions?

Tags (1)
0 Kudos
2 Replies
DanPatterson
MVP Esteemed Contributor

Basic code

import numpy as np

def _arc_sector(radius=100, start=0, stop=1, step=0.1, xc=0.0, yc=0.0):
    """Create an arc from a specified radius, centre and start/stop angles

    Requires:
    ---------
    `radius` : number
        cirle radius from which the arc is obtained
    `start`, `stop`, `step` : numbers
        angles in degrees
    `xc`, `yc` : number
        center coordinates in projected units

    Returns:
    --------
      points on the arc
    """
    start, stop = sorted([start, stop])
    angle = np.deg2rad(np.arange(start, stop, step))
    x_s = radius*np.cos(angle)         # X values
    y_s = radius*np.sin(angle)         # Y values
    pnts = np.c_[x_s, y_s]
    cent = np.array([xc, yc])
    pnts = pnts + cent
    sector = np.concatenate((cent[None, :], pnts, cent[None, :]), axis=0)
    return sector

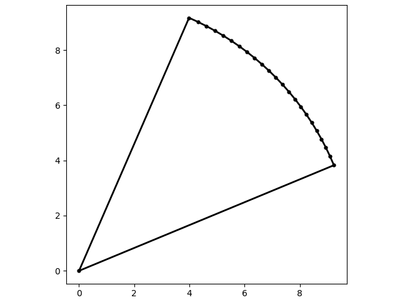

Sample to give you an idea

radius = 10.
x_c, y_c = 0., 0.

line_ang = 45.  # your line angle/direction...

start, stop = line_ang - 22.5, line_ang + 22.5  # start and stop relative to it

ar = _arc_sector(radius=10, start=start, stop=stop, step=2.0, xc=x_c, yc=y_c)



... sort of retired...
0 Kudos
DavidMercer
Occasional Contributor

Thanks!  I'll give this a try
