ArcPro legend layer transparency

4013
10
02-07-2018 06:02 AM
NigelBerjak
Occasional Contributor II

Is there a way to turn off the simulated symbol transparency in the legend? In ArcMap it is done simply via the dataframe properties via the 'Simulate layer transparency in legend' checkbox, but I've looked everywhere and I cannot locate it in ArcPro.

Thanks,

Nigel

0 Kudos
10 Replies
AdrianWelsh
MVP Honored Contributor

Nigel,

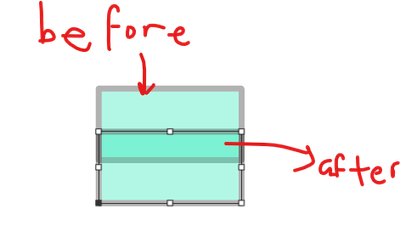

I'm not sure if this is the same thing as what you are looking for but, go into the Color Properties of the symbol and you can adjust the transparency in there:
