Can't view "Related Records" option using a webservice
Hi,

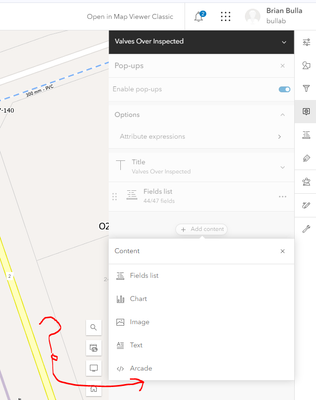

I'm trying to show related records in a pop-up. According to this blog ( https://www.esri.com/arcgis-blog/products/arcgis-online/mapping/rolling-out-related-records-in-map... ) article, I should be able to do this, but for some reason I do not have the option to "Add Content - Related Records". See screenshot below. Can anyone explain what might be going wrong here??
Here are the details on the webservice I am using. I can view the features, and modify the features fields in the pop-up. Just no access to the related table for some reason.
| ArcGIS REST Services Directory | Login | Get Token |
| Home > services > Works > Valves_Over_Inspections (MapServer) | Help | API Reference |
| JSON | SOAP |
Works/Valves_Over_Inspections (MapServer)
View Footprint In: ArcGIS Online Map Viewer
Service Description:
Map Name: Valves Over Inspections
Legend
All Layers and Tables
Dynamic Legend
Dynamic All Layers
Layers:Tables:Description:
Copyright Text:
Spatial Reference: 26917 (26917)
Single Fused Map Cache: false
Initial Extent:
- XMin: 670900.4892873524
- YMin: 4861540.759367962
- XMax: 671264.1504525405
- YMax: 4861797.333926209
- Spatial Reference: 26917 (26917)
Full Extent:
- XMin: 632250.5783000002
- YMin: 4845167.040200001
- XMax: 706521.8962000003
- YMax: 4932435.0529
- Spatial Reference: 26917 (26917)
Units: esriMeters
Supported Image Format Types: PNG32,PNG24,PNG,JPG,DIB,TIFF,EMF,PS,PDF,GIF,SVG,SVGZ,BMP
Document Info:
- Title: Map
- Author:
- Comments:
- Subject:
- Category:
- Keywords:
- AntialiasingMode: Fast
- TextAntialiasingMode: Force
Supports Dynamic Layers: true
MaxRecordCount: 2000
MaxImageHeight: 4096
MaxImageWidth: 4096
Supported Query Formats: JSON, geoJSON, PBF
Supports Query Data Elements: true
Min Scale: 0
Max Scale: 0
Supports Datum Transformation: true
Child Resources: Info Dynamic Layer
Supported Operations: Export Map Identify QueryDomains QueryLegends Find Return Updates

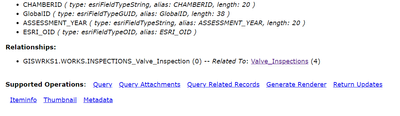

Yes, both the Valves Over and the Valves Under have a related table:

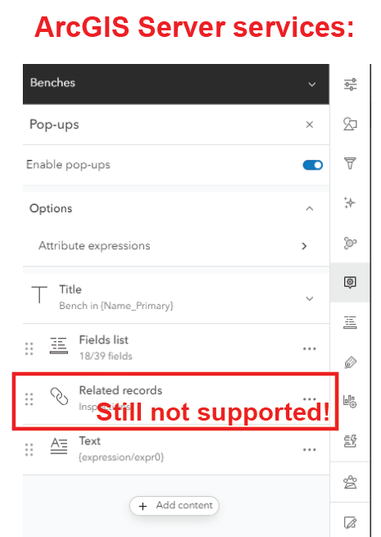

@BrianBulla @KenBuja Related records from ArcGIS Server services are still not supported in the map viewer, surprisingly and unbelievably! You still have to use the classic map viewer to do so.

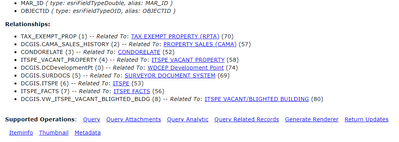

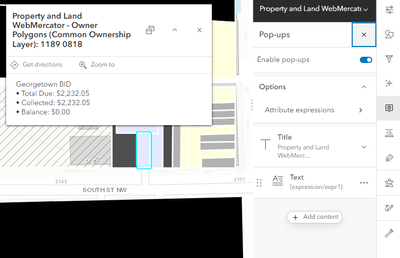

I can view related records in a popup using the Map Viewer. For example, using the service in my previous message, I built a popup to show the information from a related table.
var rec = First(FeatureSetByRelationshipName($feature, "DCGIS.ITSPE", ['BIDNAME', 'BIDTOTALDUE', 'BIDCOLLECTED', 'BIDBALANCE']));
if (IsEmpty(rec.BIDNAME)) return 'Not a BID';
return `${rec.BIDNAME}
• Total Due: ${Text(rec.BIDTOTALDUE, '$#,###.00')}
• Collected: ${Text(rec.BIDCOLLECTED, '$#,###.00')}
• Balance: ${Text(rec.BIDBALANCE, '$#,###.00')}`
@KenBuja Sure, you have to use arcade expressions to do so, but then the related records aren't interactive like they are with hosted feature layers (below):
Hi Ken,
Just troublehsooting this now, and even the Arcade is not working. So with your example, when you're in the AGOL webmap and you click on "Tables" on the left hand side, do you see all of your related tables available? In mine I see nothing. But maybe related tables don't show up here anyways....I'm just curious.
