How do you activate a ARCGIS layer with a button?
2947
18
09-26-2023 09:52 AM
by
by
by
by
and1
Below is the entire script that I am using, it was slightly modified from the API sample (SampleAPIMapCreator.cs) script.
The API sample scene is located in here for your reference:
The SampleAPIMapCreator.cs script is located here:
So you would set up an empty GameObject and call it "ExampleScript" , and also create a UI button like what is shown below:

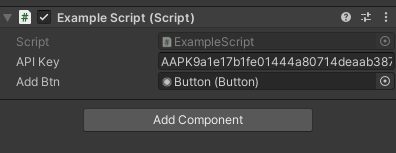

Select the "ExampleScript" GameObject, click "Add Component" to add the "ExampleScript.cs" to it, and then enter your API key, and attach that UI button you just created.

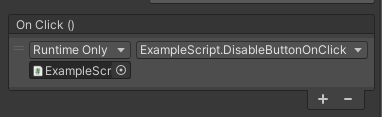

Now select the UI button in the Hierarchy window, and navigate to the Inspector window and find On Click (), attach the script to it and select the "DiableButtonOnClick" method.
Now you should be good to go.
Noticed that line 150 is where I added that onclick listener that I mentioned from previous posts. Hope this helps and let me know if you still have trouble.
// Copyright 2023 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// ArcGISMapsSDK
using Esri.ArcGISMapsSDK.Components;
using Esri.ArcGISMapsSDK.Samples.Components;
using Esri.ArcGISMapsSDK.Utils.GeoCoord;
using Esri.GameEngine.Extent;
using Esri.GameEngine.Geometry;
using Esri.Unity;
using UnityEngine.UI;
// Unity
using Unity.Mathematics;
#if UNITY_EDITOR
using UnityEditor;
#endif
using UnityEngine;
// System
using System;
// This sample code demonstrates the essential API calls to set up an ArcGISMap
// It covers generation and initialization for the necessary ArcGISMapsSDK game objects and components
// Render-In-Editor Mode
// The ExecuteAlways attribute allows a script to run both in editor and during play mode
// You can disable the run-in-editor mode functions by commenting out this attribute and reloading the scene
// NOTE: Hot reloading changes to an editor script doesn't always work. You'll need to restart the scene if you want your code changes to take effect
// You could write an editor script to reload the scene for you, but that's beyond the scope of this sample script
// See the Unity Hot Reloading documentation to learn more about hot reloading: https://docs.unity3d.com/Manual/script-Serialization.html
[ExecuteAlways]
public class ExampleScript : MonoBehaviour
{
private ArcGISMapComponent mapComponent;
private ArcGISCameraComponent cameraComponent;
public string APIKey = "";
public Button addBtn;
private ArcGISPoint geographicCoordinates = new ArcGISPoint(-74.054921, 40.691242, 3000, ArcGISSpatialReference.WGS84());
// This sample event is used in conjunction with a Sample3DAttributes component
// It passes a layer to a listener to process its attributes
// The Sample3DAttributes component is not required, so you are free to remove this event and its invocations in both scripts
// See ArcGISMapsSDK/Samples/Scripts/3DAttributesSample/Sample3DAttributesComponent.cs for more info
public delegate void SetLayerAttributesEventHandler(Esri.GameEngine.Layers.ArcGIS3DObjectSceneLayer layer);
public event SetLayerAttributesEventHandler OnSetLayerAttributes;
private void Start()
{
CreateArcGISMapComponent();
CreateArcGISCamera();
CreateArcGISMap();
}
// The ArcGISMap component is responsible for setting the origin of the map
// All geographically located objects need to be a parent of this object
private void CreateArcGISMapComponent()
{
mapComponent = FindObjectOfType<ArcGISMapComponent>();
if (!mapComponent)
{
var mapComponentGameObject = new GameObject("ArcGISMap");
mapComponent = mapComponentGameObject.AddComponent<ArcGISMapComponent>();
}
mapComponent.OriginPosition = geographicCoordinates;
mapComponent.MapType = Esri.GameEngine.Map.ArcGISMapType.Local;
// To change the Map Type in editor, you can change the Map Type property of the Map component
// When you change the Map Type, this event will trigger a call to rebuild the map
// We only want to subscribe to this event once after the necessary game objects are added to the scene
mapComponent.MapTypeChanged += new ArcGISMapComponent.MapTypeChangedEventHandler(CreateArcGISMap);
}
// ArcGIS Camera and Location components are added to a Camera game object to enable map rendering, player movement and tile loading
private void CreateArcGISCamera()
{
cameraComponent = Camera.main.gameObject.GetComponent<ArcGISCameraComponent>();
if (!cameraComponent)
{
var cameraGameObject = Camera.main.gameObject;
// The Camera game object needs to be a child of the Map View game object in order for it to be correctly placed in the world
cameraGameObject.transform.SetParent(mapComponent.transform, false);
// We need to add an ArcGISCamera component
cameraComponent = cameraGameObject.AddComponent<ArcGISCameraComponent>();
// The Camera Controller component provides player movement to the Camera game object
cameraGameObject.AddComponent<ArcGISCameraControllerComponent>();
// The Rebase component adjusts the world origin to accound for 32 bit floating point precision issues as the camera moves around the scene
cameraGameObject.AddComponent<ArcGISRebaseComponent>();
}
var cameraLocationComponent = cameraComponent.GetComponent<ArcGISLocationComponent>();
if (!cameraLocationComponent)
{
// We need to add an ArcGISLocation component...
cameraLocationComponent = cameraComponent.gameObject.AddComponent<ArcGISLocationComponent>();
// ...and update its position and rotation in geographic coordinates
cameraLocationComponent.Position = geographicCoordinates;
cameraLocationComponent.Rotation = new ArcGISRotation(65, 68, 0);
}
}
// This function creates the actual ArcGISMap object that will use your data to create a map
// This is the only function from this script that will get called again when the map type changes
public void CreateArcGISMap()
{
if (APIKey == "")
{
Debug.LogError("An API Key must be set on the SampleAPIMapCreator for content to load");
}
// Create the Map Document
// You need to create a new ArcGISMap whenever you change the map type
var map = new Esri.GameEngine.Map.ArcGISMap(mapComponent.MapType);
// Set the Basemap
map.Basemap = new Esri.GameEngine.Map.ArcGISBasemap(Esri.GameEngine.Map.ArcGISBasemapStyle.ArcGISImagery, APIKey);
// Create the Elevation
map.Elevation = new Esri.GameEngine.Map.ArcGISMapElevation(new Esri.GameEngine.Elevation.ArcGISImageElevationSource("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer", "Terrain 3D", ""));
// Create ArcGIS layers
var layer_1 = new Esri.GameEngine.Layers.ArcGISImageLayer("https://tiles.arcgis.com/tiles/nGt4QxSblgDfeJn9/arcgis/rest/services/UrbanObservatory_NYC_TransitFrequency/MapServer", "MyLayer_1", 1.0f, true, "");
// Remove a layer
//map.Layers.Remove(map.Layers.IndexOf(buildingLayer));
// Add a layer with a button listener
addBtn.onClick.AddListener(delegate { map.Layers.Add(layer_1); });
// You can update an ArcGISLayer's name, opacity, and visibility without needing to rebuild the map
// Update properties
layer_1.Opacity = 0.9f;
// If the map type is local, we will create a circle extent and attach it to the map's clipping area
if (map.MapType == Esri.GameEngine.Map.ArcGISMapType.Local)
{
// Set this to true to enable an extent on the map component
mapComponent.EnableExtent = true;
var extentCenter = new Esri.GameEngine.Geometry.ArcGISPoint(-74.054921, 40.691242, 3000, ArcGISSpatialReference.WGS84());
var extent = new ArcGISExtentCircle(extentCenter, 10000);
try
{
map.ClippingArea = extent;
}
catch (Exception e)
{
Debug.Log(e.Message);
}
}
// We have completed setup and are ready to assign the ArcGISMap object to the View
mapComponent.View.Map = map;
#if UNITY_EDITOR
// The editor camera is moved to the position of the Camera game object when the map type is changed in editor
if (!Application.isPlaying && SceneView.lastActiveSceneView != null)
{
SceneView.lastActiveSceneView.pivot = cameraComponent.transform.position;
SceneView.lastActiveSceneView.rotation = cameraComponent.transform.rotation;
}
#endif
}
// Disable the button after it's being clicked
public void DisableButtonOnClick()
{
addBtn.interactable = false;
}
}
