BaseTileLayer does not show up correctly in WGS84 projection.

imsolost · ‎10-15-2024

I am attempting to display a downloaded basemap in my angular app. The map does appear, however spatial reference seems to be off, although I am manually setting the spatial reference anywhere I can. The system in use for the map is WGS84 (EPSG 4326). What happens as shown in the screenshot is that the y-axis extends well beyond what it should, and the x-axis completely cuts off any part of the map that does not fit inside the red box. The red box is drawn to outline the coordinates x = -180 to 180 and y = -90 to 90. It seems that because of this, fetchTile in BaseTileLayer.createSubclass is not grabbing the correct columns. Since it would seem that I am setting the spatical reference to the same spatial reference as my offline basemap I'm not sure why the map isn't being mapped to the proper coordinates. The basemap I am using is in .gpkg format. Any ideas on why it isn't showing up properly? Thanks for any help you can offer!

How I set my Spatial Reference:

export const SPATIAL_REFERENCE: SpatialReference = SpatialReference.WGS84;

The code for getting the tiles:

private updateBasemapToGeopackage(): void {
// @ts-ignore
const GeoPackageTileLayer = BaseTileLayer.createSubclass({
properties: {
geoPackage: null, // This will hold the opened GeoPackage

tileDao: null, // This will hold the Tile DAO (Tile Data Access Object)
},

fetchTile: function (level: number, row: number, col: number) {
const tileDao: TileDao<TileRow> = this.tileDao;

const canvas = document.createElement('canvas');

const context = canvas.getContext('2d');

return new Promise((resolve, reject) => {
// Step 3: Fetch the tile from the GeoPackage for the given zoom level, column, and row
const tile = tileDao.queryForTile(col, row, level);
console.log('COL: ', col, ' ROW: ', row, ' LEVEL: ', level);
if (tile) {
// Create an Image element
const image = new Image();

// Step 4: Draw the image onto the canvas when it loads
image.onload = function () {
canvas.width = image.width;
canvas.height = image.height;
if (context) {
context.drawImage(image, 0, 0);
}
resolve(canvas); // Resolve the canvas as the tile
};

// Handle error if tile data cannot be loaded
image.onerror = function () {
reject(new Error('Tile image could not be loaded'));
};

// Set the tile source as the raw tile data in a Blob format
const blob = new Blob([tile.tileData], { type: 'image/png' });
image.src = URL.createObjectURL(blob);
} else {
// If no tile exists for this level/col/row, return null (empty tile)
resolve(null);
}
});
},
});

fetch('./test.gpkg')
.then((response) => response.arrayBuffer())
.then((data) => {
// return (window as any).GeoPackage.open(data);
return GeoPackageAPI.open(new Uint8Array(data));
// return GeoPackageAPI.open(data as Uint8Array);
})
.then((geoPackage: GeoPackage) => {
const tileTables = geoPackage.getTileTables();
console.log(tileTables);
// Use the first tile table (you can adapt this to load multiple if needed)
if (tileTables && tileTables.length) {
const tileDao = geoPackage.getTileDao(tileTables[0]);
// Step 6: Create an instance of the custom tile layer
const tileLayer = new GeoPackageTileLayer({
geoPackage: geoPackage,
tileDao: tileDao,
spatialReference: SPATIAL_REFERENCE,
tileInfo: TileInfo.create({
spatialReference: SPATIAL_REFERENCE,
}),
});

// Step 7: Add the tile layer to the map
// this.map.add(tileLayer);

const basemap = new Basemap({
baseLayers: [tileLayer],
title: 'Put the title here',
});
this.map.basemap = basemap;
const line = new Polyline({
paths: [
[
[-180, -90],
[-180, 90],
],
[
[-180, 90],
[180, 90],
],
[
[180, 90],
[180, -90],
],
[
[180, -90],
[-180, -90],
],
],
spatialReference: SPATIAL_REFERENCE,
});

const lineGraphic = new Graphic({
geometry: line,
symbol: symbolUtils.getPolylineSymbol(false, '#FF0000'),
});
this.mapView.graphics.add(lineGraphic);
}
});
}

How I'm setting up the MapView and such:

constructor() {
esriConfig.request.interceptors?.push({
urls: [],
before: (params: any) => {
params.requestOptions.withCredentials = true;
},
});
esriConfig.log.level = 'info';

// Handle 2D <-> 3D transformation
effect(() => {
const sharedProps = {
map: this.map,
container: 'viewDiv',
spatialReference: SPATIAL_REFERENCE,
popup: {
dockEnabled: false,
visibleElements: {
closeButton: false,
collapseButton: false,
},
dockOptions: {
buttonEnabled: false,
breakpoint: true,
},
},
};

if (this.isViewInitialized()) {
let savedGraphics: Graphic[] = [];
let currentMapViewExtent: Extent | null = null;
let currentSceneCamera: Viewpoint | null = null;
if (this.view) {
savedGraphics = this.view.graphics.toArray();
if (this.isMap2d()) {
currentSceneCamera = (this.view as SceneView).viewpoint.clone();
} else {
currentMapViewExtent = this.view.extent;
}
}
if (this.isMap2d()) {
this.view = new MapView({
...sharedProps,
zoom: 10,
extent: {
xmin: -180000,
ymin: -90,
xmax: 180000,
ymax: 90,
spatialReference: SPATIAL_REFERENCE,
},
constraints: {
snapToZoom: false,
rotationEnabled: false,
minZoom: 2,
},
});
this.view.constraints.geometry = this.view.extent.clone();

this.goToView(currentSceneCamera);
} else {
this.view = new SceneView({
...sharedProps,
environment: {
lighting: {
type: 'virtual',
},
},
});

this.goToView(currentMapViewExtent);
}

this.updateAllGraphicDimensionChanges(savedGraphics);
this.handleViewSetup();
}
});
}

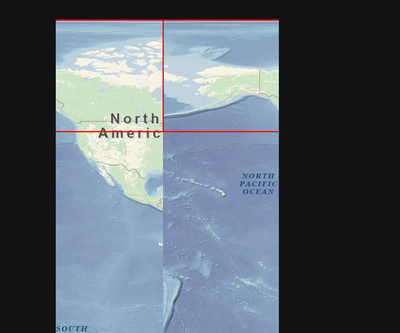

How my Map looks:

JoelBennett · ‎10-15-2024

Are you accounting for the fact that those tiles are (likely) 512x512, as opposed to the "standard" 256x256?

imsolost · ‎10-17-2024

The tiles are 256x256.

MatteoRizzi1 · ‎10-17-2024

Hi @imsolost,

it would be helpful to have a demo code to dig into your issue and better understand how you're setting up the app.

I know that sharing a sample with an Angular app can be challenging, but perhaps you could create a simplified version on StackBlitz (or another browser-based IDE) and then share the link here (feel free to send it through a private message directly to me).

imsolost · ‎10-28-2024

I just sent you a PM with the link. Thanks in advance!

imsolost · ‎01-17-2025

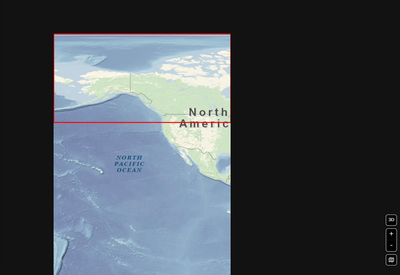

Here is a stackblitz example. Please be aware that the map is only shown for one zoom level due to the fact that stackblitz will not allow me to upload a file with multiple zoom levels because the file size is too big without a paid subscription. When it starts up you will only see half of the map (from roughly -180 to 0 longitude), however the entire longitude is present in the geopackage.

https://stackblitz.com/edit/stackblitz-starters-xaacuv?file=src%2Fapp%2Fapp.component.ts
