Display Resolution Issues: Map Image Layers BREAKS on larger display

[RYANCARL]

Hello all,

I am really hoping there is a good solution to this.

I am having screen size / resolution issues with Map Image Layers that are associated with my experience. When the computer screen is in the 1920 X 1080 resolution everything works perfectly, but when I switch to 2560 X 1440 the Map Image Layer is completely broken.

This image is the screen resolution at 1920 X 1080:

As you can see this is working perfectly.

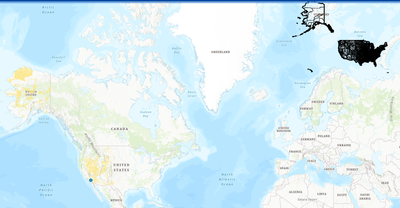

This image is the screen resolution at 2560 X 1440:

As you can see something is very wrong here.

Any help or insight with this issue is very appreciated.

EDIT: This issue is effecting only 2D maps.

[JonathanMcDougall]

@RYANCARL

Hi, I've added a couple of  image layers to a 2d map and have tried to replicate this, but have not been able to.

As I build experiences I use a plugin for Chrome/Edge called Windows Resizer to make sure I keep things usable for a 1080, 1050, or 900 user as I work off 1440p.

In this case I've used the plugin as well as changing my screen res to the lower 1080, 1050, and 900 - no joy. I'm going to surmise that your issue is browser redraw and cache based more than ExpB or the map widget as you've got a lot of information in that layer - I think it's just taking a long time for your browser to update.

Are you able to share the map, even if it's just fired into a simple ExpB so we can try to replicate?

[NicolasGIS]

Hi,

Faced the same issue.

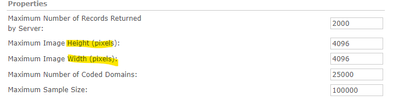

It can be fixed by increasing the Maximum Image Height and Width in pixels at the Map Service level:

The fact that it is shifted in the JS API is due to the fact that it asks for an image size that satisfies these limit s though it does not cover the full screen once generated.

Phenomena observed using ESRI Maps SDK for javascript 4.27.
