Reg. Arc-GIS 10 architecture / sketch of its components

542
1
03-09-2021 05:52 AM
vishnuRajendran
New Contributor

Hi ,

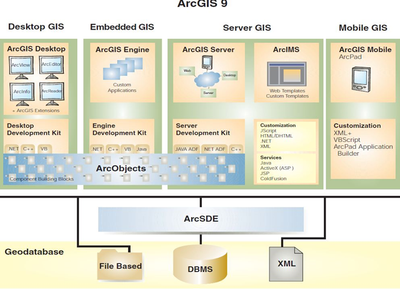

can anyone get me the architecture for arc-gis application architecture? I have the figure for the Arc-GIS 9 but not for 10. I need to know what are the upgraded things in 10 and above. PFA the image. I need similar to it.




0 Kudos
1 Reply
CraigRussell
Esri Contributor

Hi Vishnu

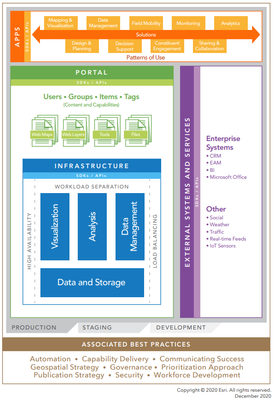

Architecting the ArcGIS System (esri.com) provides excellent coverage for this topic, including a modern ArcGIS Conceptual Reference Architecture diagram:
