Hello,
I can't get my 3D Scene (created in ArcGIS Pro) to display in 3D in the Scene Viewer. I'm using a the 'Gebco Tiled Elevation' and 'TopoBathy 3D' layers as Ground elevation layers then draping my custom high resolution elevation and reference layers on top.

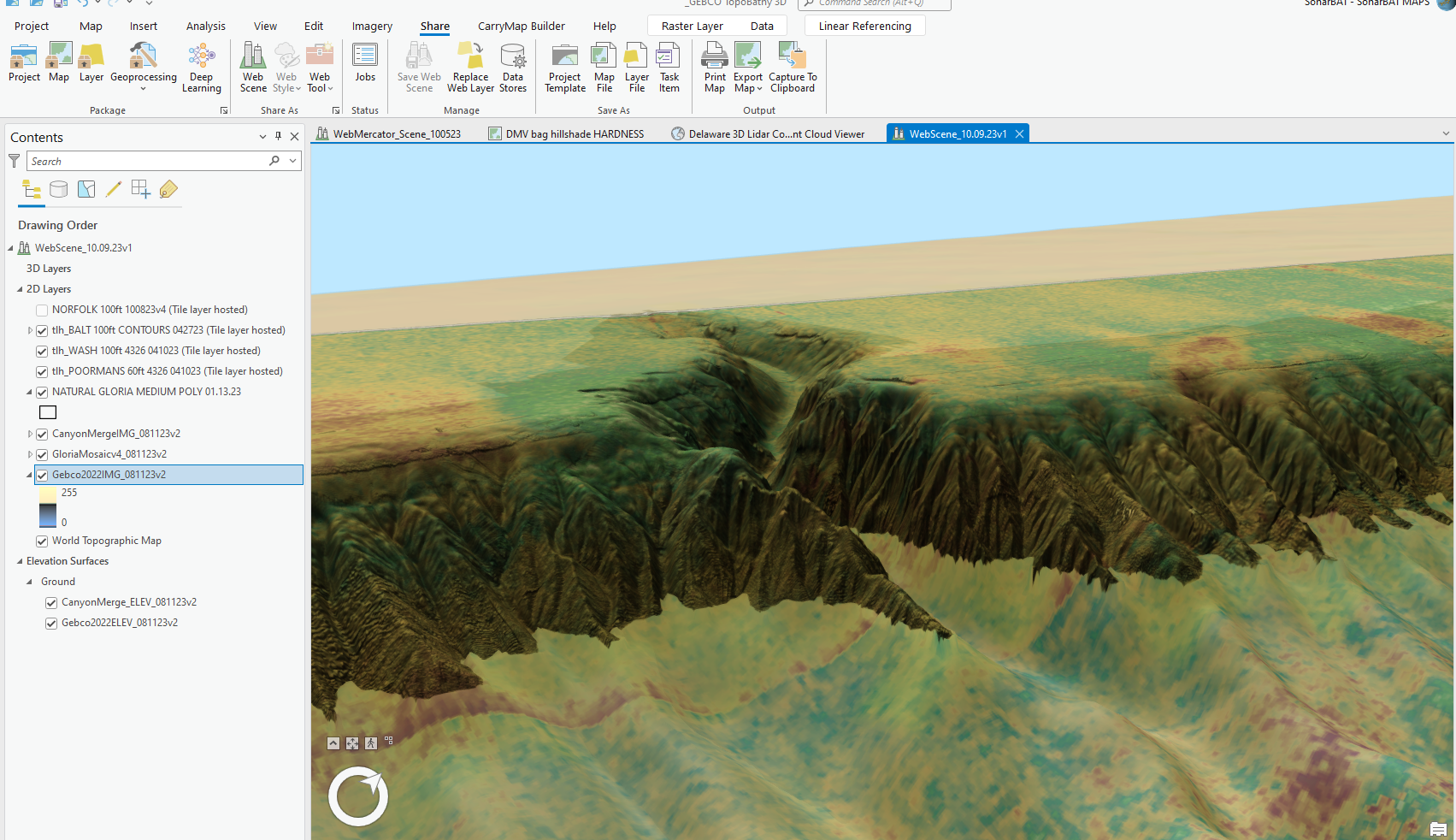

Here's how the scene displays in ArcGIS Pro (image #1):

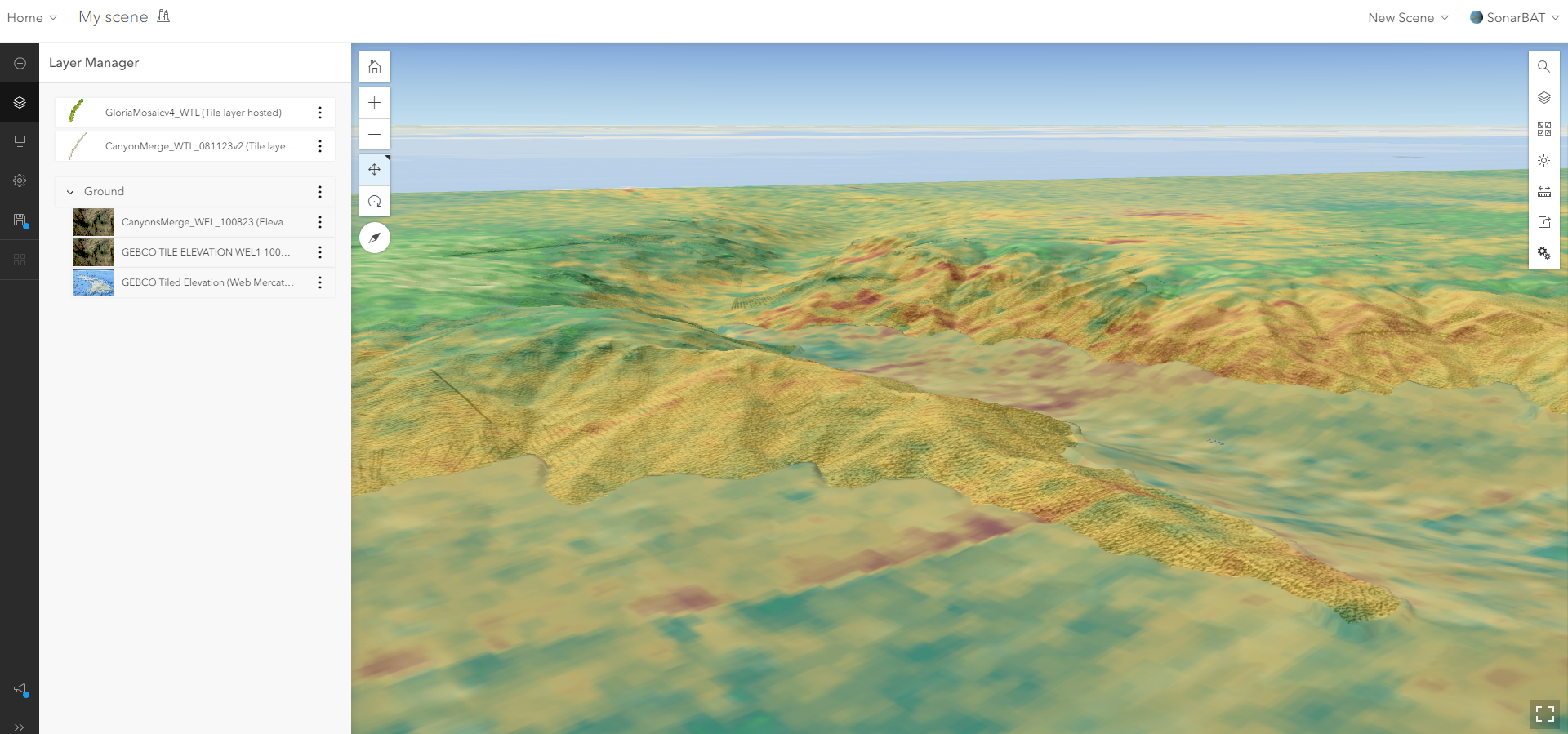

Here's how the same Scene dataset (which works in ArcGIS Pro) displays in Scene Viewer: (image #2):

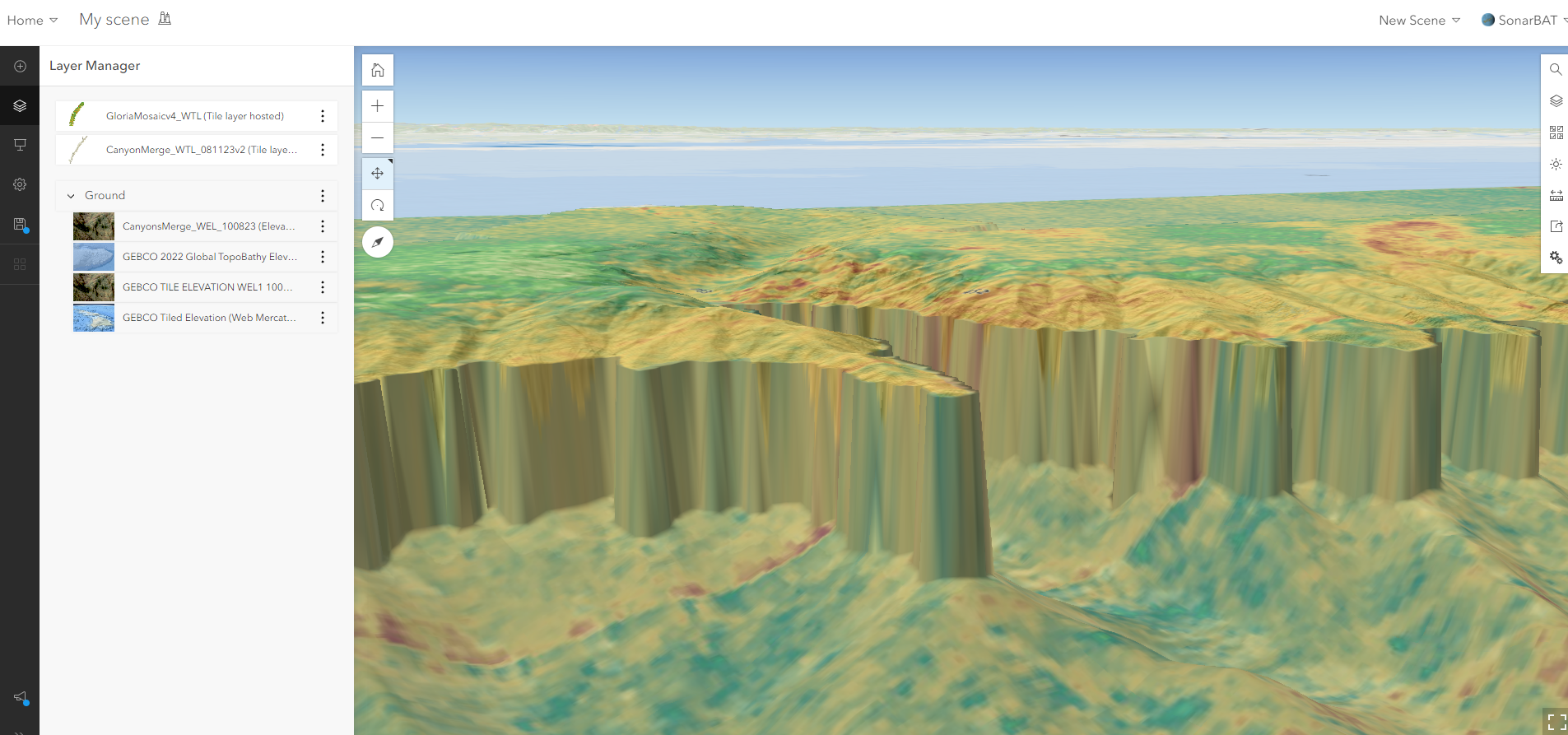

The screenshot below shows how Scene Viewer displays when I changed the base Ground elevation layer from 'Gebco Tiled Elevation' to 'GEBCO 2021 Global TopoBathy Elevation at 3.5x Vertical Exaggeration':
~ Why does my custom elevation layer sit up on top an extruded platau instead draping over top of the Gebco TopoBathy 3.5 Exaggeration elevation layer?
~ Why does Scene Viewer honor the exaggerated elevation attributes shown in the Gebco TopoBathy Exaggeration elevation layer but the elevation attributes are ingored in all other types of elevation layers? (including the Ersi hosted Gebco Tiled Elevation and TopoBathy 3D for example)? (image #3)
Seeing if there was an issue with hosted Ground elevation layers in Scene Viewer, I went to the Gebco site and downloaded gridded bathymetry data in GeoTiFF and Esri ASCII formats. I created base elevation layers using the downloaded Gebco gridded datasets and went through these steps to test a custom base Ground elevation Gebco layer:
1. Imported Gebco custom elevation layer (as Ersi Grid format) into ArcGIS Pro local scene -> Ground elevation group. (matching CRS with ArcGIS Pro local scene CRS).
2. Replaced hosted Gebco elevation layer (Gebco Tile Elevation) with custom Gebco elevation layer.
3. Inspected Scene, confirmed Elevation is applied to custom Gebco elevation layer and Scene displays as expected.
4. Created Tile Cache using the 'Manage Tile Cache' Geoproceesing tool.
- Selected 'Elevation Tiling Scheme' from Input Tiling Scheme dropdownoption.
- Scaled tile cache from Level 7 - Level 20.
5. Created Tile Package (tpkx) using the 'Export Tile Package' Geoprocessing tool.
6. Created Web Elevation Level in ArcGIS Online using the 'Share Package' Geoprocessing tool.
7. Selected Web Elevation layer in ArcGIS the selected 'View in Scene Viewer'
8. Loaded custom Gebco Web Elevation into the Scene Viewer -> Ground Elevation group (and removed default elevation Terrain 3D layer)
9. Loaded custom high-resolution bathymetry layers into Scene viewer from my ArcGIS Online account.
Results: The Scene compiled using all custom elevation layers displays without the base elevation attibutes applied to the 3D base elevation layers in Scene Viewer. There's no difference in how the Scene displays whether the base elevation layers used is a hosted Ersi elevation service, or a custom elevation layer created from scratch using Gebco gridded data that was downloaded from Gebco.
I searched Living Atlas and the ArcGIS Online site for Scenes that others have developed which feature 3D bathymetry or 3D terrain features. I found the Scenes below which seem to display elevated bathymetry or elevated terrain features.
~ How are these Scenes able to display extruded 3D bathymetry and terrain, whereas I cannot??

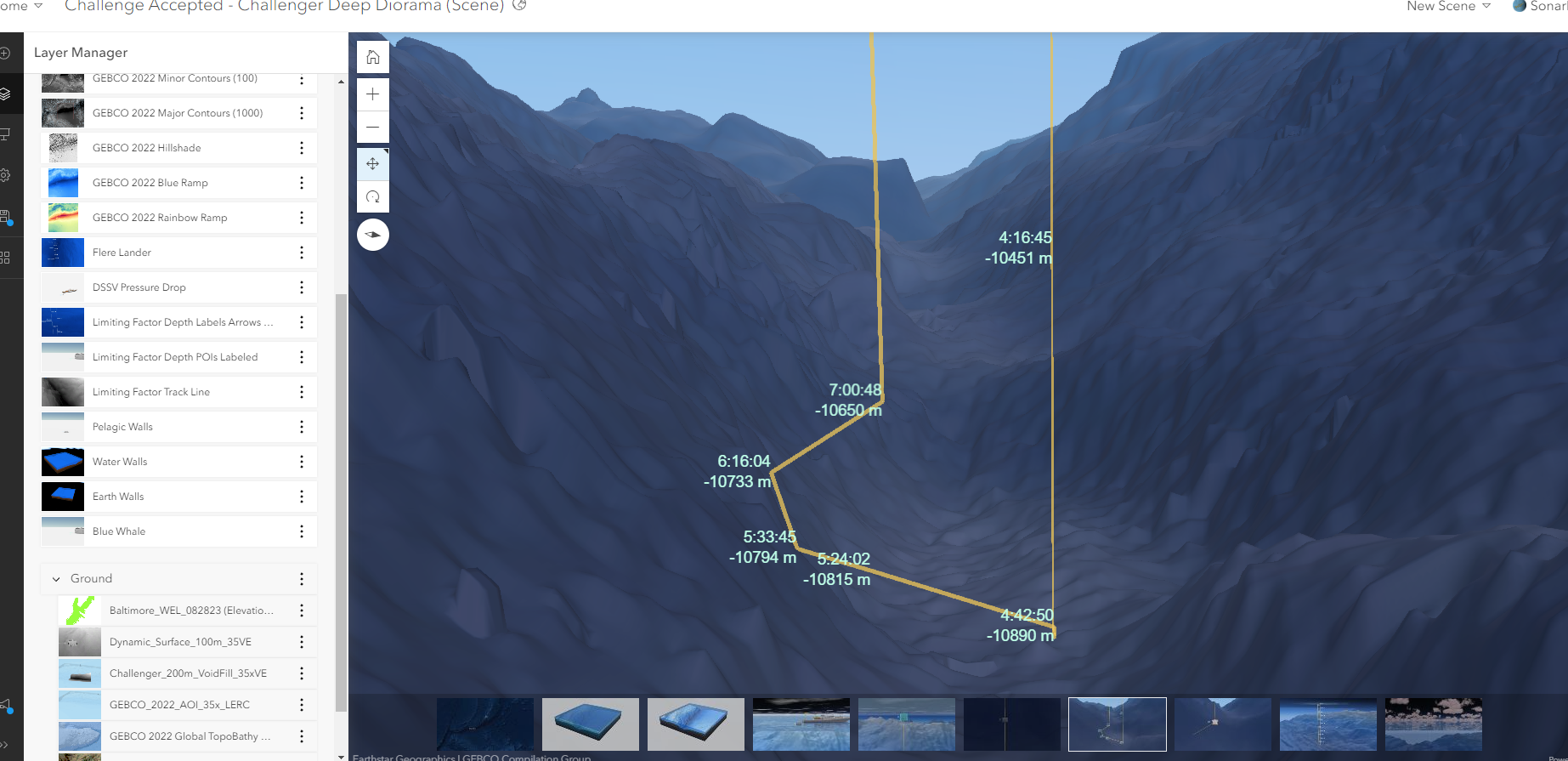

Challenge Accepted - Challenger Deep Diorama Scene: (image #4)

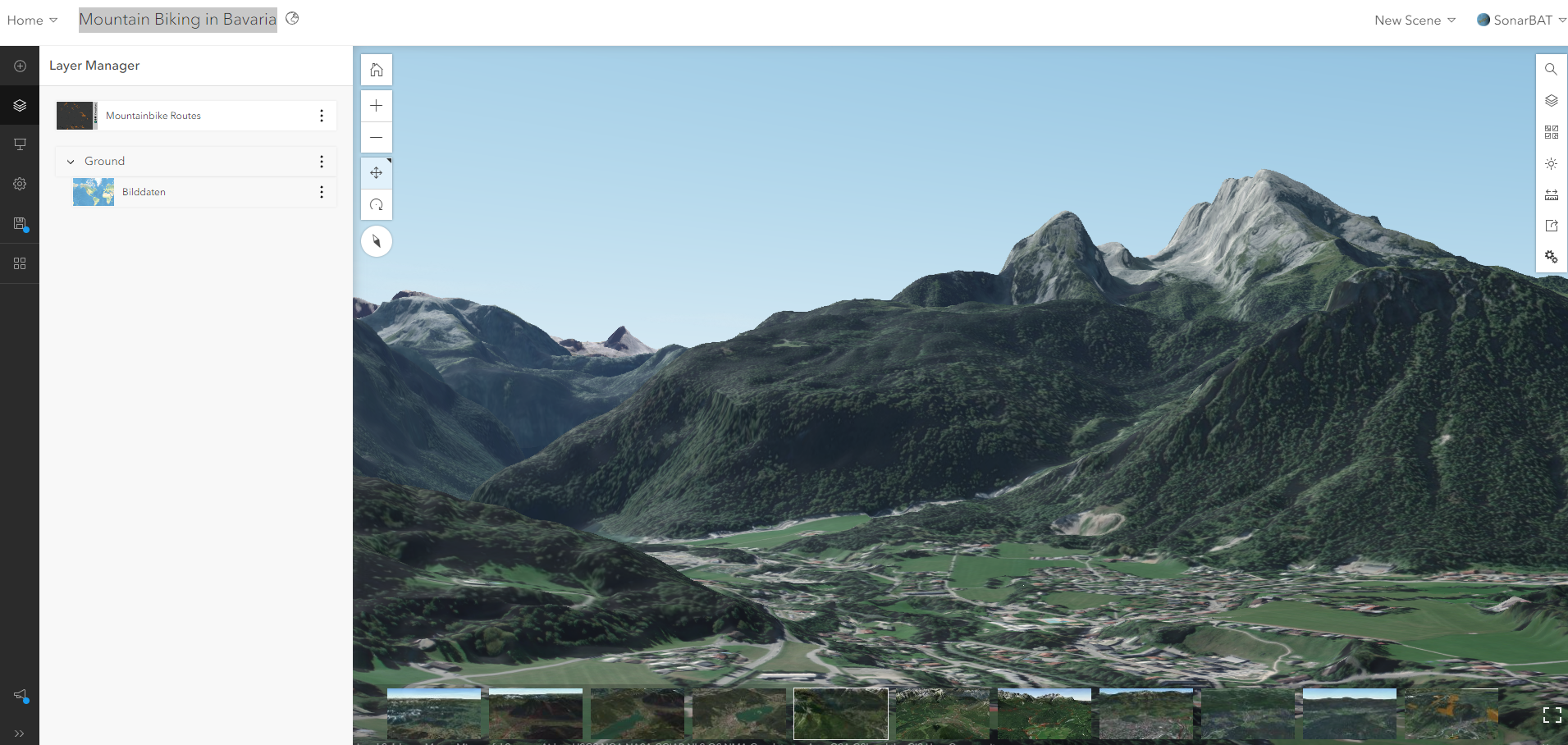

Mountain Biking in Bavaria Scene: (image #5)

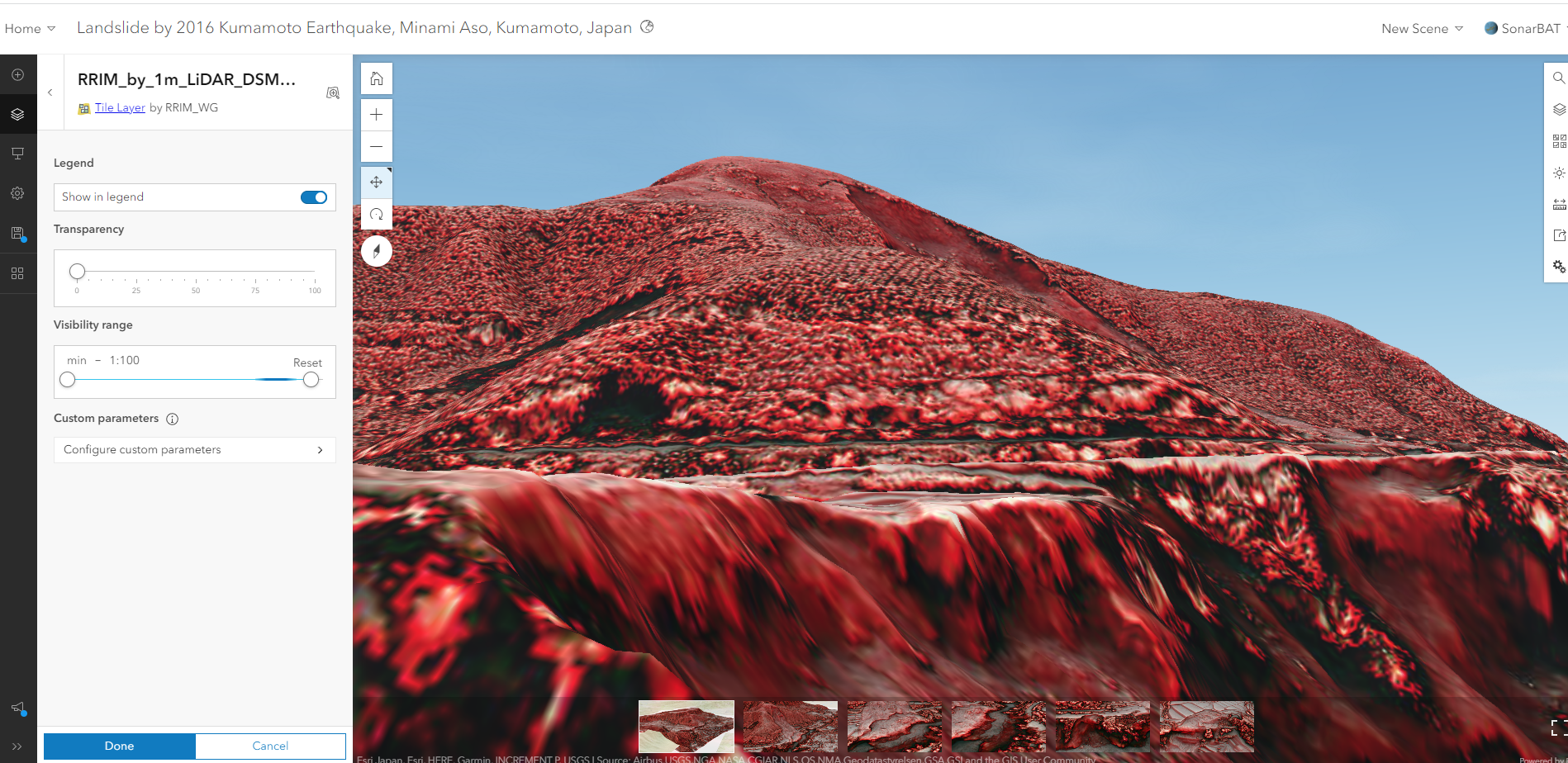

Landslide Scene: (image #6)
The Gebco 3.5x, 5x and 10x display exaggerated 3D bathymetry and terrain layers in Scene Viewer. However, my elevation and reference layers cannot be draped over the Gebco exaggerated elevation layer without an extrude plateau being generated.
What am doing wrong that's preventing my perfectly functional 3D ArcGIS Pro Scene from displaying in 3D once loaded into Scene Viewer?
I've been trying to get this issue resolved for almost a year now, including having an Esri Support case open since mid-July '23 with no resolution or workarounds offered to date.
Thanks in advance for any guidance, it would be greatly appreciated.
Matt
Hi Matt @SonarBATStructureMAPS
Do I understand it correctly that the layers which give unexpected results in Scene Viewer are all exaggerated? Or do also the not-exaggerated layers show up differently when viewed on the web?
Hi again,
Thanks for letting me know about your support case. With this information, we can suggest an appropriate workflow for your specific case.
For anyone else following this Community post, please note that vertical exaggeration is not yet supported and prioritized in our backlog. However, you can achieve a similar visualization on the web by following this knowledge base article as a workaround:
Regards,
Grete
Thank you for the response Grete. I will review the suggested workaround and report back with the results.
Matt
