Symbology Drew Order with arcpy

786
3
Jump to solution
04-21-2022 01:11 AM
OrrGvili
Occasional Contributor

working on Geoprocessing tool, part of the process is saving pdf

cant find how to change the multi ring buffer symbology drawing order when working with the

"UniqueValueRenderer

I really try to avoid splitting the polygons to individual layers

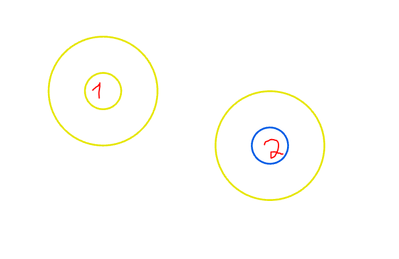

i need the outcome to look like 2 and not 1
using only the outline of the polygon with no color inside






ArcGIS Pro 2.7 ArcPy





0 Kudos
1 Solution

Accepted Solutions
RhettZufelt
MVP Notable Contributor

If you are wanting to change the default draw order, that is based on the order the features are saved in the data table.  If you use the sort GP tool, and sort the FC on Area field, Descending, then all the smaller polygons will draw on top of the larger ones as they will be at the bottom of the table.

Though, not sure this will help with multirings.  might have to explode first.

R_

View solution in original post

3 Replies
DanPatterson
MVP Esteemed Contributor

What do you have now? and what do you want it to look like?

UniqueValueRenderer—ArcGIS Pro | Documentation

You may find converting from multiring simpler after reading the above


... sort of retired...
0 Kudos
RhettZufelt
MVP Notable Contributor

If you are wanting to change the default draw order, that is based on the order the features are saved in the data table.  If you use the sort GP tool, and sort the FC on Area field, Descending, then all the smaller polygons will draw on top of the larger ones as they will be at the bottom of the table.

Though, not sure this will help with multirings.  might have to explode first.

R_

OrrGvili
Occasional Contributor

thanks
Sorting by Descending on the buffer field solved it
