MapServer layer labels are not displayed on iOS application

YashvitNaik · ‎10-25-2021

I want to display Mapserver Layer on my iOS application(v 100.7), the layer has a symbol and label. On my iOS application, only the symbol is visible but the label is not displayed whereas on Javascript Web Application both the Symbol and Label are visible. Even on zoom level, the labels are not displayed on the iOS application.

javascript web app

iOS application

Layer JSON data:

{
  "currentVersion": 10.81,
  "id": 10,
  "name": "Drop Inlets",
  "type": "Feature Layer",
  "description": "",
  "geometryType": "esriGeometryPoint",
  "sourceSpatialReference": {
    "wkid": 102642,
    "latestWkid": 2226
  },
  "copyrightText": "",
  "parentLayer": null,
  "subLayers": [

  ],
  "minScale": 20000,
  "maxScale": 0,
  "drawingInfo": {
    "renderer": {
      "type": "simple",
      "symbol": {
        "type": "esriPMS",
        "url": "04daf6dba482f0b89551c272e8e441ea",
        "imageData": "iVBORw0KGgoAAAANSUhEUgAAAAgAAAAICAYAAADED76LAAAAAXNSR0IB2cksfwAAAAlwSFlzAAAOxAAADsQBlSsOGwAAAB9JREFUGJVjYWBgYGAo8f3PgAOw4JIYggp6NjPiUgAA9ecDIdUlArEAAAAASUVORK5CYII=",
        "contentType": "image/png",
        "width": 6,
        "height": 6,
        "angle": 0,
        "xoffset": 0,
        "yoffset": 0
      },
      "label": "",
      "description": ""
    },
    "transparency": 0,
    "labelingInfo": null
  },
  "defaultVisibility": true,
  "extent": {
    "xmin": 6666683.263543308,
    "ymin": 1849480.0979458094,
    "xmax": 6792364.348794803,
    "ymax": 2030044.241738066,
    "spatialReference": {
      "wkid": 102642,
      "latestWkid": 2226
    }
  },
  "hasAttachments": false,
  "htmlPopupType": "esriServerHTMLPopupTypeAsHTMLText",
  "displayField": "NEXGEN_ID",
  "typeIdField": null,
  "subtypeFieldName": null,
  "subtypeField": null,
  "defaultSubtypeCode": null,
  "fields": [
    {
      "name": "OBJECTID",
      "type": "esriFieldTypeOID",
      "alias": "OBJECTID",
      "domain": null
    },
    {
      "name": "FAC_ID",
      "type": "esriFieldTypeString",
      "alias": "FAC_ID",
      "length": 254,
      "domain": null
    },
    {
      "name": "CITY",
      "type": "esriFieldTypeString",
      "alias": "CITY",
      "length": 2,
      "domain": null
    },
    {
      "name": "DRPINTYP",
      "type": "esriFieldTypeString",
      "alias": "DRPINTYP",
      "length": 8,
      "domain": null
    },
    {
      "name": "SWQEMB",
      "type": "esriFieldTypeString",
      "alias": "SWQEMB",
      "length": 1,
      "domain": null
    },
    {
      "name": "IN_CURB_RADIUS",
      "type": "esriFieldTypeString",
      "alias": "IN_CURB_RADIUS",
      "length": 1,
      "domain": null
    },
    {
      "name": "SHAPE",
      "type": "esriFieldTypeGeometry",
      "alias": "SHAPE",
      "domain": null
    },
    {
      "name": "WRD_SERVICE_AREA",
      "type": "esriFieldTypeString",
      "alias": "WRD_SERVICE_AREA",
      "length": 16,
      "domain": null
    },
    {
      "name": "WATERSHED",
      "type": "esriFieldTypeString",
      "alias": "WATERSHED",
      "length": 50,
      "domain": null
    },
    {
      "name": "NAME",
      "type": "esriFieldTypeString",
      "alias": "NAME",
      "length": 50,
      "domain": null
    },
    {
      "name": "SUP_DISTRICT",
      "type": "esriFieldTypeString",
      "alias": "SUP_DISTRICT",
      "length": 16,
      "domain": null
    },
    {
      "name": "DTBUILT",
      "type": "esriFieldTypeDate",
      "alias": "DTBUILT",
      "length": 8,
      "domain": null
    },
    {
      "name": "last_edited_user",
      "type": "esriFieldTypeString",
      "alias": "last_edited_user",
      "length": 255,
      "domain": null
    },
    {
      "name": "last_edited_date",
      "type": "esriFieldTypeDate",
      "alias": "last_edited_date",
      "length": 8,
      "domain": null
    },
    {
      "name": "NEXGEN_ID",
      "type": "esriFieldTypeInteger",
      "alias": "NEXGEN_ID",
      "domain": null
    },
    {
      "name": "created_user",
      "type": "esriFieldTypeString",
      "alias": "created_user",
      "length": 255,
      "domain": null
    },
    {
      "name": "created_date",
      "type": "esriFieldTypeDate",
      "alias": "created_date",
      "length": 8,
      "domain": null
    }
  ],
  "geometryField": {
    "name": "SHAPE",
    "type": "esriFieldTypeGeometry",
    "alias": "SHAPE"
  },
  "indexes": [
    {
      "name": "R510_pk",
      "fields": "OBJECTID",
      "isAscending": true,
      "isUnique": true,
      "description": ""
    },
    {
      "name": "S496_idx",
      "fields": "SHAPE",
      "isAscending": true,
      "isUnique": true,
      "description": ""
    }
  ],
  "subtypes": [

  ],
  "relationships": [

  ],
  "canModifyLayer": true,
  "canScaleSymbols": false,
  "hasLabels": true,
  "capabilities": "Map,Query,Data",
  "maxRecordCount": 1000,
  "supportsStatistics": true,
  "supportsAdvancedQueries": true,
  "supportedQueryFormats": "JSON, geoJSON",
  "isDataVersioned": false,
  "ownershipBasedAccessControlForFeatures": {
    "allowOthersToQuery": true
  },
  "useStandardizedQueries": true,
  "advancedQueryCapabilities": {
    "useStandardizedQueries": true,
    "supportsStatistics": true,
    "supportsHavingClause": true,
    "supportsCountDistinct": true,
    "supportsOrderBy": true,
    "supportsDistinct": true,
    "supportsPagination": true,
    "supportsTrueCurve": true,
    "supportsReturningQueryExtent": true,
    "supportsQueryWithDistance": true,
    "supportsSqlExpression": true
  },
  "supportsDatumTransformation": true,
  "dateFieldsTimeReference": null,
  "supportsCoordinatesQuantization": true
}

MichaelBranscomb · ‎10-25-2021

Can you share the code that shows how you're adding the layer to the map/mapview?

The layer's JSON you shared shows the "labelingInfo": null which suggests the labels in the JavaScript might be defined client-side?

YashvitNaik · ‎10-25-2021

This is my code On the iOS application

private async Task LoadFeatureTable(MapLayerVM layer)
        {
            try
            {
                var serverType = layer.FeatureService ? "/FeatureServer/" : "/MapServer/";
                var DataSourceDefinition = await AddAuthentication(layer.EsriUsername, layer.EsriPassword, layer.DataSourceDefinition, layer.TokenUrl, layer.ArcGisOnline);

                var blockGroupsUri = new Uri(DataSourceDefinition + "/" + layer.ResourceDefinition + serverType + layer.ShapeFileID);
                var featureTable = new ServiceFeatureTable(blockGroupsUri);

                featureTable.FeatureRequestMode = FeatureRequestMode.OnInteractionNoCache;
                await featureTable.LoadAsync();
                featureTables.Add(featureTable);

                var lyr = new FeatureLayer(featureTable);
                lyr.Opacity = 0.70;
                lyr.LabelsEnabled = true;

                myMap.OperationalLayers.Add(lyr);
            }
            catch (Exception)
            {
                throw;
            }
        }

YashvitNaik · ‎10-25-2021

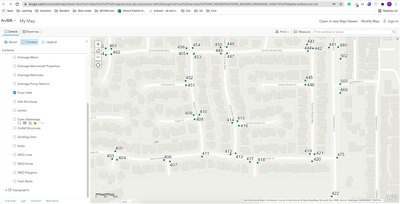

ArcGIS Online Map Viewer

The labels are also visible on ArcGIS Online Map Viewer. So JavaScript applications don't have client-side code to show labels.

MichaelBranscomb · ‎10-27-2021

The ArcGIS Online Map Viewer is a web app built with the ArcGIS API for JavaScript, therefore the behavior may different from the out-of-the-box ArcGIS API for JavaScript map control.

Regarding displaying labels in your ArcGIS Runtime app, because the service definition does not contain a label definition you will need need to add in code. For a sample see: https://developers.arcgis.com/net/wpf/sample-code/show-labels-on-layers/.
