Sample attribute rule to enforce subtype domains

[Bud]

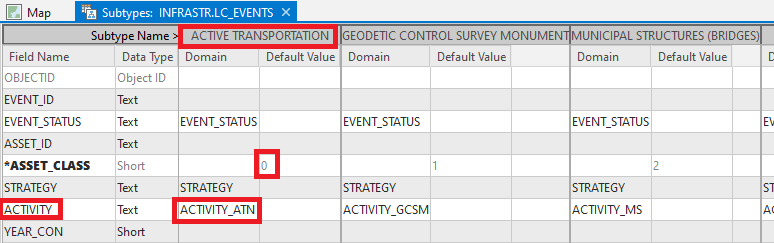

For a table that has a subtype:

The subtype fields have domains.

For example, when the ASSET_CLASS subtype value  = 0 (ACTIVE_TRANSPORTATION), the ACTIVITY field uses the ACTIVITY_ATN domain.

Problem:

Just like with regular domains, subtype domains can be easily overridden via the Field Calculator and other mechanisms.

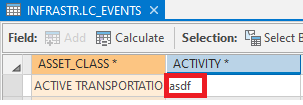

For example, 'asdf' is not a valid ACTIVITY_ATN domain code, but I can still enter that value via the Field Calculator.





Idea:

In ArcGIS, hard-enforcing subtypes and domains isn't supported, and likely won't be supported any time soon.

As a workaround, could Esri provide a sample attribute rule for enforcing subtype domains? (in the Esri Arcade GitHub)

Thanks.

[HusseinNasser2]

I think I wrote a blog when we first introduced `Domain` Arcade function on how to do that.

https://www.esri.com/arcgis-blog/products/arcgis-pro/data-management/domain-subtypes-and-the-schema-...

The code is subtype agnostic but you should be able to get the Domain at the subtype level by passing the subtype code.

[SSWoodward]

@Bud

Did the documentation provided by @HusseinNasser2 help you get to a solution here?

[Bud]

@SSWoodward

The short answer is: I'm not good enough with Arcade code to get that working for subtype domains.

It would be ideal to have a sample script that is specifically for enforcing a domain that comes from a subtype.
