Create Network Diagram for Diverse Paths

410
3
02-25-2021 04:44 PM
Matt_Milligan
Esri Contributor

Hi All,

I have a water utility network setup in an enterprise geodatabase.

I would like to know if it is possible to combine the output of 2 traces into a single diagram.

For instance, I am running a shortest pat trace between 2 points in the network. The first trace finds the shortest path and I create a network diagram from that selection. I then add those selected features as barriers for a second shortest path trace that I run so I can find an alternative "diverse" path in the network. I create a network diagram from that trace.

Now I would like to combine those 2 outputs into a single diagram, or have some mechanism to run the 2 traces and select all features to create a single unified diagram.

Does anyone know if this is possible?

Many thanks.

0 Kudos
3 Replies
PaulLeBlanc1
Esri Contributor

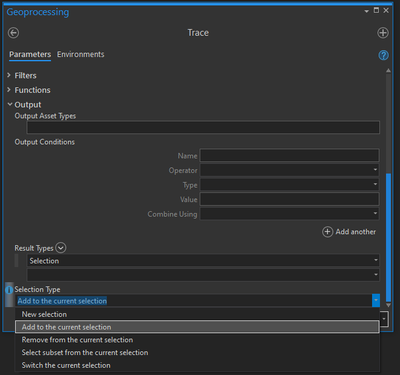

The various selection options on the Trace GP tool should do the trick (the default is new selection):




mattmilligan_esriau
New Contributor II

Hey Paul,

That worked a treat. Thanks for the suggestion.

0 Kudos
KeirenMarshall
Esri Contributor

HI @Matt_Milligan ,

Did you want this to still go into a diagram ( such as the network diagram)  or was the tracing sufficient?

Esri Australia Consultant and Business Analyst
0 Kudos
