How to colour in the spaces between two contour lines?

2826
4
Jump to solution
08-21-2020 11:18 AM
DevinHock
Emerging Contributor

Hello all,

I am attempting to clearly identify infrastructure that will be submerged if water levels rose above a specific height due to the construction of a beaver dam in a stream. In the case of the image I attached, I am assuming a dam would block a culvert going beneath a road and raising the water level up stream by one meter. To get a better idea, I thought I would try filling in the area within a contour (as seen below, with 1 metre contours). Is there a way of colouring in the space between two contour lines? And to highlight that elevation on the map and any points that might exist in the coloured space? Looking at the image I attached, I would want to colour in the space within the cyan contour line.

Thank you!

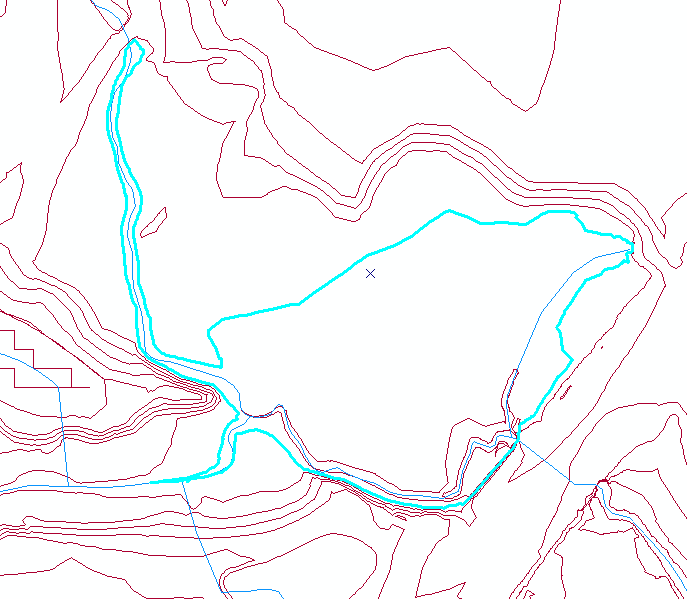

A contour map showing a highlighted contour.

Tags (2)
0 Kudos
1 Solution

Accepted Solutions
DanPatterson
MVP Esteemed Contributor
4 Replies
SteveLynch
Esri Regular Contributor

use the CONTOUR_POLYGON option

0 Kudos
DevinHock
Emerging Contributor

Is there a way to use the Contour_polygon tool without creating a new contour layer from scratch? When I use it, it asks for an Input Raster, but I'd rather use the contours that I already have.

0 Kudos
DanPatterson
MVP Esteemed Contributor
DevinHock
Emerging Contributor

This worked for the closed loop contours, thanks!
