Add a floating graphic to Map

[BrianBulla]

Hi,

Is it possible to add a graphic to the active Map that floats in space and doesn't change position when panning the map?  What I want to do is have a cross-hair type graphic centred around the centre of the map, and when the user pans around I will then use the Maps camera co-ordinate to do things with.

Hopefully that makes sense.  I've added graphics before, but they've always been tied to a specific location on the map, and hence move with the map when panning.  I kind of want the opposite effect.

[CharlesMacleod · Accepted solution]

you want a "MapViewOverlayControl". It is, essentially, a wrapper around a "standard" WPF User Control that u can add to the MapView control overlay. This overlay is used by Pro for user control content (as opposed to graphics elements content) - such as the Time slider, Edit sketch toolbar, Navigation tool "compass/navigator", and so on that sits "on top of" the map view.

To use it, create a user control - in this case it sounds like it will be something like a WPF canvas that contains your cross-hair image, centered. Wrap the user control with a MapViewOverlayControl and then add _that_ to the map view control overlay with mapView.AddOverlayerControl(....) : MapViewOverlayControl

You should also look at the scribble control sample - it uses the map view overlay to hold a scribble control allowing users to "scribble" or "annotate" markup directly on top of the mapview (via a MapViewOverlayControl wrapping the scribble control). https://github.com/Esri/arcgis-pro-sdk-community-samples/tree/master/Map-Exploration/ScribbleControl...

Your code to add the overlay control will look something like this:

var crossHairControl = new CrossHairControl(); //your user control
//do any required configuration upfront
crossHairControl.Foo = ....;
crossHairControl.Bar = ....;

//Create a MapViewOverlayControl.
var mapViewOverlayControl = new MapViewOverlayControl(
      crossHairControl, true, true,
      true, OverlayControlRelativePosition.Center, .5, .8);
//Add to the active map view
MapView.Active.AddOverlayControl(mapViewOverlayControl);

[Wolf]

Charlie's suggestion is the way to go, however, you have to compute the x/y ratios to position the user control in the middle of the screen.  For that you have the use the active mapview's GetViewSize().

if (MapView.Active == null) return;
var mapView = MapView.Active;
var crossHairControl = new CrossHairControl();
// use the active mapview to get the size of the mapview display
var xRatio = 0.0;
var yRatio = 0.0;
var viewSize = mapView.GetViewSize();
if (viewSize.Width != 0.0 && viewSize.Height != 0.0)
{
  var xPosition = viewSize.Width / 2;
  var yPosition = viewSize.Height / 2;
  // now offset for 1/2 of the user control's size
  xPosition -= 16;
  yPosition -= 16;
  xRatio = xPosition / viewSize.Width;
  yRatio = yPosition / viewSize.Height;
}
// Create a MapViewOverlayControl using the user control
var mapViewOverlayControl = new MapViewOverlayControl(
      crossHairControl, true, false,
      false, OverlayControlRelativePosition.Center, xRatio, yRatio);
//Add to the active map view
mapView.AddOverlayControl(mapViewOverlayControl);

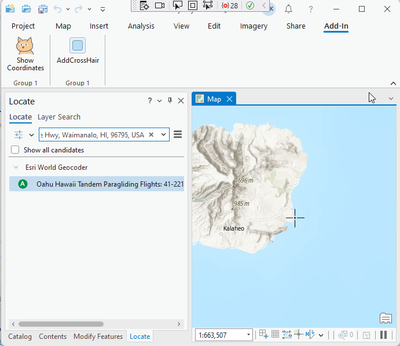

I attached my sample add-in, but the result should look like this:

[BrianBulla]

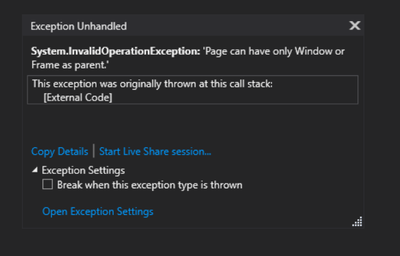

Thanks guys.  The sample code you both have given is a great help.  One issue I am having is adding the crosshair using a CheckBox in my WPF Dockpane.  The code seems to run, but then I get an exception saying "page can only have window or frame as parent".

In my Dockpane.xaml.cs I have this (basically the same as Wolf's code), and then the exception happens after the last line runs.  The code seems to be calculating the width/height ok so it seems like I can interact with the MapView.

Any help is appreciated.

private void chkCrossHair_Checked(object sender, RoutedEventArgs e)
        {
            //draw a cross-hair in centre of active map

            if (MapView.Active == null) return;

            var mapView = MapView.Active;
            var crossHairControl = new CrossHairControl();

            //use the active mapview to get the size of the mapview display
            var xRatio = 0.0;
            var yRatio = 0.0;
            var viewSize = mapView.GetViewSize();

            if (viewSize.Width != 0.0 && viewSize.Height != 0.0)
            {
                var xPosition = viewSize.Width / 2;
                var yPosition = viewSize.Height / 2;
                // now offset for 1/2 of the user control's size
                xPosition -= 16;
                yPosition -= 16;
                xRatio = xPosition / viewSize.Width;
                yRatio = yPosition / viewSize.Height;
            }

            // Create a MapViewOverlayControl using the user control
            var mapViewOverlayControl = new MapViewOverlayControl(
                  crossHairControl, true, false,
                  false, OverlayControlRelativePosition.Center, xRatio, yRatio);
            //Add to the active map view
            mapView.AddOverlayControl(mapViewOverlayControl);

        }

[Wolf]

Like Charles said we don't have enough code to see the problem, but i would also check your CrossHairControl and make sure that mapViewOverlayControl is defined.

[CharlesMacleod]

you have a threading issue. Usually an InvalidOperation exception is thrown when u create something on the _background_ thread that needs to be created on the UI thread (the reverse of most cases w the Pro SDK which do require u to use the QTR).

However it's not possible to tell from just this snippet. Make sure that the complete sequence occurs on the UI thread in this case.

[BrianBulla]

Thanks guys.  So the problem was with my CrossHairControl.  Once I deleted it and created a new one, all is good.  No issues with the threading.  Thanks for all your help with this!!
