Weird grids label

880
5
Jump to solution
02-07-2021 02:03 PM
Labels (1)
MingHan
New Contributor III

Hi Everyone

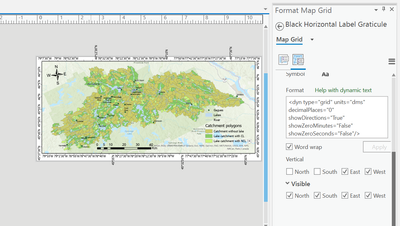

   How to fix this weird grid label?




Thanks

Ming

0 Kudos
1 Solution

Accepted Solutions
TomBole
Esri Regular Contributor

Hi Ming,

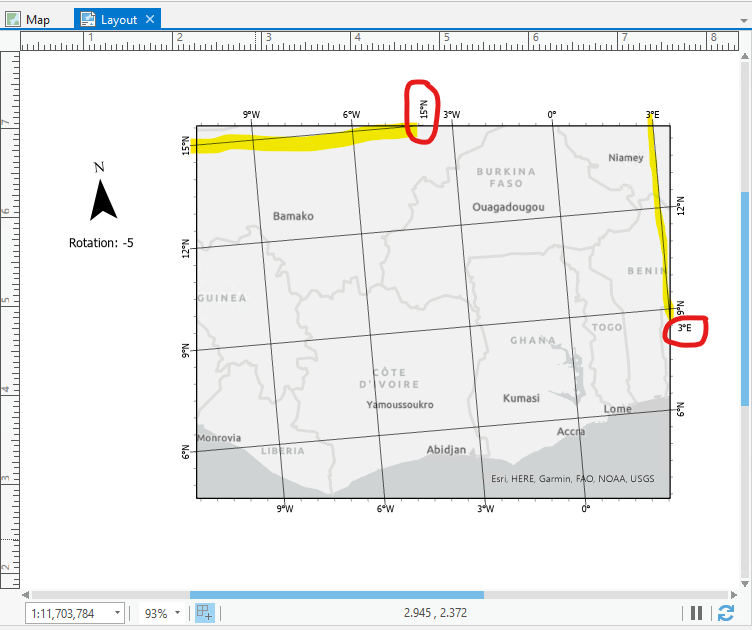

This is expected behavior. Fortunately, ArcGIS Pro allows you to control the visibility of labels for cases such as this. For example here is a map with a rotation of -5. As you can see there are grid label (and tick marks) that I may want to remove from the map (circled in red).


Step 1: Define the edges of your map frame

1. Open the Grid properties and in the Format Map Grid pane (Options tab)

2. Expand the group Edges and corners

3. Check both checkboxes.


Notice that the edges and corners of the map frame are designated with numbers (edges in blue).  These numbers can be used in deciding which labels (and tick marks) should be visible.

Step 2: Assign edge visibility

1. Click the Format Map Grid Components tab.

2. Select “Labels” from the Components list.

3. Expand the Visible group

4. Click Selected.

You should see the edge indicators on your map.

Now for the tricky part. The cardinal directions as indicated in the pane refer to the “intersection” of the gridline and the edge of map frame. In this example we want to remove the label (and tick mark) for “15 N”. It is at the east end of its associated grid line (marked in yellow highlight at the top).

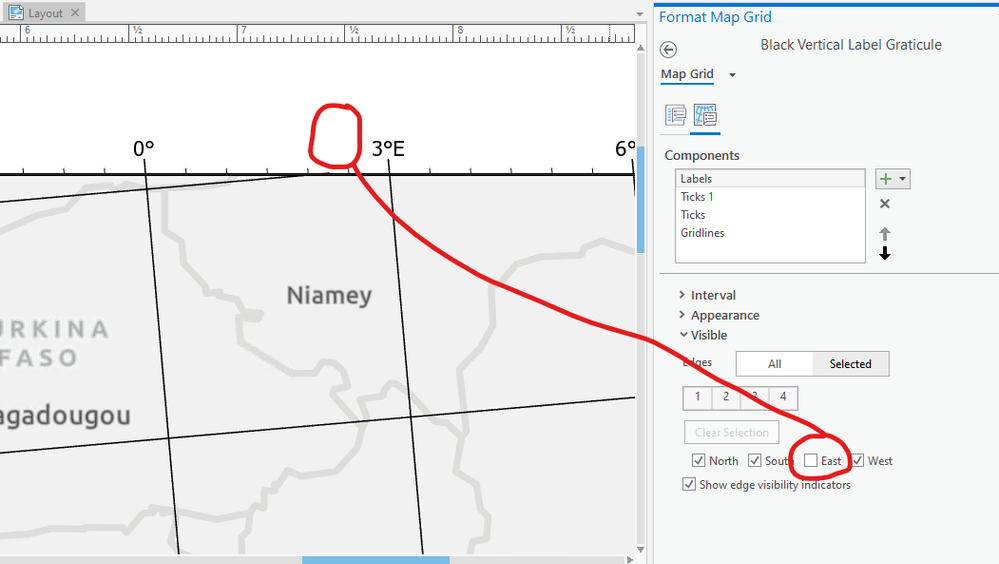

5. Click 1. We are now working with the visibility of "Labels" (the selected component) for edge "1".

Toggle the “East” checkbox. This will toggle off the visibility for edge 1 labels that are at the east end of the gridline.

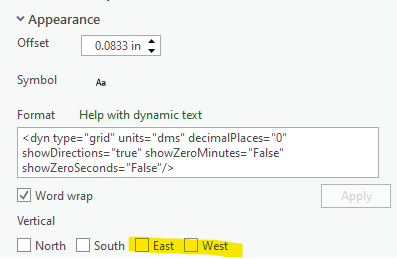

Note: There is an existing bug that incorrectly removed vertical placement for labels when the Selected button is clicked.  You may need to reassign vertical placement to the edges. You can do this under the Appearance group (as shown below). Check the boxes back on for the vertical alignment


For more information please see the help topic Graticules.

Hope this helps,

Tom

View solution in original post

5 Replies
jcarlson
MVP Frequent Contributor

I'd guess it's either your projection or your map has a rotation defined, but that happens when the grid lines cut across a corner, rather than to the other side of the frame.

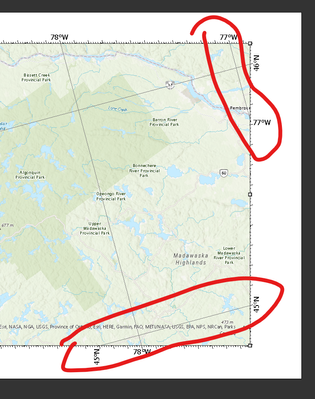

Notice in the grid label settings that you're setting the vertical text based on cardinal direction, as opposed to the top/bottom/left/right of the map frame element. It may be easier to show than tell, so here's a map with a 15 degree rotation, and similar grid label settings to yours. I've also left the grid lines on, as it's easier to see it that way.


The 77 W and 45 N labels get repeated on adjacent edges as opposed to opposite edges due to the map's rotation. Since the 45 N line runs east/west, its labels will respect my settings for the grid labels to be vertical, even though the "west" label itself doesn't show up on what I'd call my west edges of the frame.

In order to fix it, you'll just have to play around with the map's rotation and your grid's origin and interval settings to try and avoid grid lines that cut corners like that.

- Josh Carlson
Kendall County GIS
TomBole
Esri Regular Contributor

Hi Ming,

This is expected behavior. Fortunately, ArcGIS Pro allows you to control the visibility of labels for cases such as this. For example here is a map with a rotation of -5. As you can see there are grid label (and tick marks) that I may want to remove from the map (circled in red).


Step 1: Define the edges of your map frame

1. Open the Grid properties and in the Format Map Grid pane (Options tab)

2. Expand the group Edges and corners

3. Check both checkboxes.


Notice that the edges and corners of the map frame are designated with numbers (edges in blue).  These numbers can be used in deciding which labels (and tick marks) should be visible.

Step 2: Assign edge visibility

1. Click the Format Map Grid Components tab.

2. Select “Labels” from the Components list.

3. Expand the Visible group

4. Click Selected.

You should see the edge indicators on your map.

Now for the tricky part. The cardinal directions as indicated in the pane refer to the “intersection” of the gridline and the edge of map frame. In this example we want to remove the label (and tick mark) for “15 N”. It is at the east end of its associated grid line (marked in yellow highlight at the top).

5. Click 1. We are now working with the visibility of "Labels" (the selected component) for edge "1".

Toggle the “East” checkbox. This will toggle off the visibility for edge 1 labels that are at the east end of the gridline.


Note: There is an existing bug that incorrectly removed vertical placement for labels when the Selected button is clicked.  You may need to reassign vertical placement to the edges. You can do this under the Appearance group (as shown below). Check the boxes back on for the vertical alignment


For more information please see the help topic Graticules.

Hope this helps,

Tom

MilesSaunders
New Contributor

How is this functionality expected?  A large portion of GIS work is in cartographic design, and the easy dissemination of information.  By limiting the graticule label options to the cardinal direction limits the information available to the products enduser.  Label orientation should be referenced to the layout frame side and not the cardinal direction, specifically since maps are rarely North up.  Your solution for a clean design is to remove useful grid orientation information is in direct contrast to the information I need my enduser to see.  I need all labels on the left and right of the layout frame to be displayed vertical so the labels don't overrun other pertinent information.  Grid labels should be referenced to the layout frame, since the layout frame is the constraint used to display the data.  Vertical labels on left / right, Horizontal labels top / bottom

0 Kudos
TomBole
Esri Regular Contributor

Hi Miles,

Sorry that your experience with grid labeling is not what you'd hoped.  We have plans to provide an option to set ticks and labels parallel to the map frame edge. I'm hopeful we can have this available to cartographers like yourself within the next year.

If this is something you wish to keep track of I would highly recommend that you contact support and enter a bug. They can be contacted at https://support.esri.com/en/contact-tech-support. While posts like these are important feedback and do get read they do not have the same weight as an actual support issue that is being tracked in our system.

Thanks for spending the time to help us identify areas of the software that deficient.

Tom

0 Kudos
TomBole
Esri Regular Contributor

Hi everyone,

We have added a new property to grid labels - "Draw parallel to grid edges" and to ticks - "Draw perpendicular to grid edges". These properties are new with ArcGIS Pro 2.9. I hope these properties will help with your workflows.

Tom
