Show line dimensions while editing

452
2
Jump to solution
02-18-2021 10:46 AM
Labels (1)
LonSharp
Occasional Contributor II

In ArcMap, while creating a feature (or reshaping), there is a display at the bottom of the map showing the measurements of the current line segment with length & direction.    Is there an equivalent in Pro?   I've checked under Options-Editing (and everywhere else I can think of) but do not see any option for this.

If it doesn't exist, it would certainly be a good enhancement for the future.

0 Kudos
1 Solution

Accepted Solutions
Scott_Harris
Esri Regular Contributor

Hi @LonSharp You can turn on Dynamic Constraints to show segment direction (or deflection) and distance. It also works while reshaping. If you want to enter specific vales, you can hit TAB while sketching.


Turn it on at the bottom of the map:


Help topic:

https://pro.arcgis.com/en/pro-app/latest/help/editing/constrain-distance-for-a-segment.htm#ESRI_SECT...



-Scott

View solution in original post

2 Replies
Scott_Harris
Esri Regular Contributor

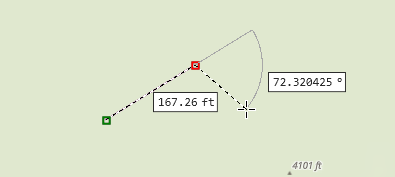

Hi @LonSharp You can turn on Dynamic Constraints to show segment direction (or deflection) and distance. It also works while reshaping. If you want to enter specific vales, you can hit TAB while sketching.

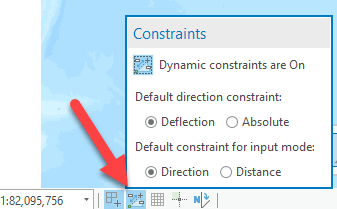

Turn it on at the bottom of the map:


Help topic:

https://pro.arcgis.com/en/pro-app/latest/help/editing/constrain-distance-for-a-segment.htm#ESRI_SECT...



-Scott

LonSharp
Occasional Contributor II

I knew it would be somewhere obvious!   Many thanks Scott.
