Remove overlap from buffer on same feature class

388
5
06-22-2021 08:02 AM
Labels (2)
AdCulver
New Contributor II

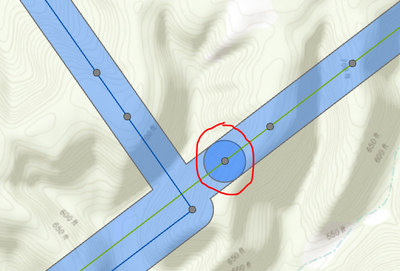

I am looking for a way to remove the overlapping portion of a rounded end buffer where 2 features meet. They are in the same feature class. I cannot use flat ends because of the jagged edges and slivers where the buffer is not wide enough (image 2 example).







0 Kudos
5 Replies
JayantaPoddar
MVP Esteemed Contributor

You could use Remove Overlap (Multiple) geoprocessing tool. Keep your Buffer layer as the only input. Keep the Method as default.



Think Location
0 Kudos
AdCulver
New Contributor II

Thank you @JayantaPoddar. It looks like it should be in the Analysis > Overlay Toolbox but yet I do not see it in my Pro session:




0 Kudos
JayantaPoddar
MVP Esteemed Contributor

This tool was introduced at ArcGIS Pro 2.7. What version do you have?





Think Location
AdCulver
New Contributor II

Our enterprise is using version 2.6.6. This is what the disconnect is. Thank you.

0 Kudos
JayantaPoddar
MVP Esteemed Contributor

Hmmm. Cool.

Check this method, then.

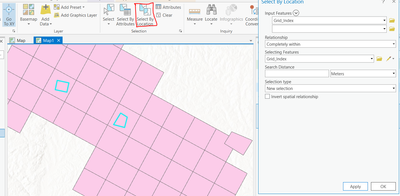

Use Select By Location tool > Use the buffer polygon as the Input and Selecting Features. Relationship = COMPLETELY WITHIN






This should select the overlapping polygons. You can delete it from the Edit tab.



Think Location
0 Kudos
