Hello, I am very green with ArcGIS Pro so I hope this is the correct place to ask. I would like to do some slope analysis on data I have downloaded from the HiRISE website (specifically this: https://www.uahirise.org/ESP_016671_1615). However when I run slope analysis on the JP2 file I download it comes out as a massive blob of colours. I've read that I would need to convert the .IMG file to something arc could read but I have no clue how to do this. Would anybody be able to help me?
Thanks 🙂

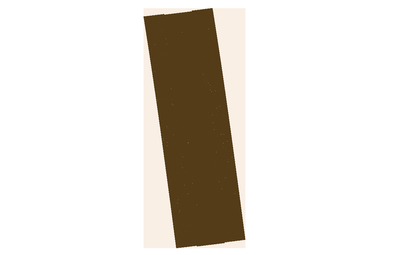

First image is what I have downloaded, seccond is... the blob
That looks like a hillshade product. You need a terrain model (showing actual elevation values at those locations) in order to do slope analysis.
Looks like they have some such models here:
https://www.uahirise.org/hiwish/maps/dtms.jsp
Once you have a DEM/DTM, you can add it to ArcGIS Pro and try the Slope tool on it.
You can convert raster file formats in Pro:
https://pro.arcgis.com/en/pro-app/3.1/help/data/imagery/export-or-convert-raster-datasets.htm
Hey Bob, just so I have this right, that would mean that I could only run slope analysis on the files they have DTMs of. There would be no way to convert the .IMG?
You can't run a slope analysis on imagery of different color band values (like a photo, or a landsat image). You need a raster that contains elevation values. If that image is a hillshade (it looks like it is), that implies that they have a corresponding DEM, because hillshades, like slopes are a product derived from a DEM.
It looks as though they have 1,079 DEMs hosted here:
Tools exist to create DEMs from stereo pairs of images, so if they don't have a DEM for this site (I'll bet they do), if they have stereo image pairs for the site, with additional software and training, you could make a DEM. That would be a much bigger lift than downloading an existing DEM and running a slope analysis.
Ahh right so a bit above the pay grade of an undergrad. Thanks for the help mate! 🙂
