Graphics and Text

05-12-2022 01:09 PM
Labels (1)
New Contributor

I recently received a call from an ArcGIS Pro user from my org asking how to add an arrow graphic to his map in Layout mode. For some reason, not all of the graphics were showing on his pro project but they were displaying on my pro project. Basically had to create a blank pro project, add a blank layout and add the line arrow that the user wanted and saved the project somewhere in our server where the user has access and then copy and paste the graphic to his layout as a workaround. Does anyone know why  some of the graphics are not displaying? I've attached a screenshot of the graphics on here.

0 Kudos
5 Replies
MVP Honored Contributor

Different version of Pro, perhaps?

- Josh Carlson
Kendall County GIS
0 Kudos
New Contributor III

I'm unable to view the jpg you've attached.

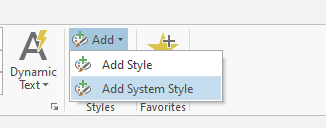

That being said it sounds like some of the system styles are not loading correctly. I would go to the Styles group in the Layout ribbon and click the down arrow on Add and then select Add System Styles:

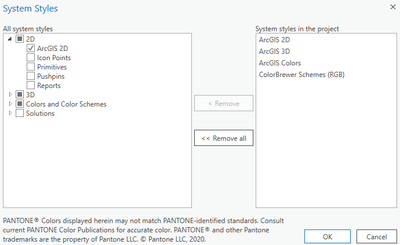

Then you'll get a popup that looks like this and add if they arent there and if they are remove them and save and then add them back:



0 Kudos
Esri Notable Contributor

Could be an earlier version of ArcGIS Pro as Josh mentioned or the user can do a "soft reset" of ArcGIS Pro by renaming the ESRI folder in the C:\users\<user_profile>\appdata\local and C:\users\<user_profile>\appdata\roaming to ESRI_OLD

0 Kudos
Esri Contributor

The arrow graphics were added to the layout gallery in ArcGIS Pro 2.9, so if you are using an earlier version you won't see them. However, the arrows are just line styles so you can save a style file with the arrow configuration of your choice and share it with your colleague.

0 Kudos
Frequent Contributor

The other day I worked on Graphics on my ArcGIS Pro 2.9.2 and it works just fine... so could be what others are telling you like old version, or maybe it show in a different color in the layout .  ie white over white background ...

0 Kudos
