Extract roof forms using rasters comes out as polygon

156
2
06-02-2021 11:31 AM
Labels (2)
EdwinLoughry
New Contributor

I am working with a set of LIDAR data collected at a local school with the objective of producing a 3D multipatch of the building. I am using the 3D Basemaps package to achieve this. I believe I have all the data needed and am following along with this video https://www.youtube.com/watch?v=IK4TFmPe2a8&ab_channel=EsriEventsEsriEvents


 After I am generating the DSM, DTM, and nDSM files requires for the "Extract Roof Form" tool, it comes out as a polygon after I apply the LOD2 symbology layer supplied by the 3D Basemaps folder.

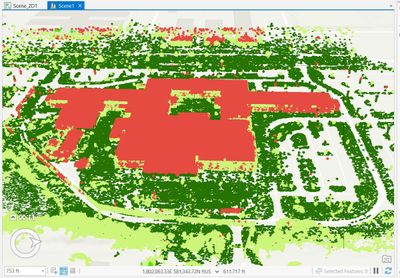

extract roof form issue.JPG

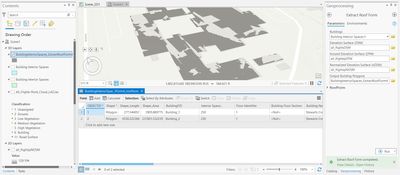

 It appears to have height values when I look at the attributes but I am not certain what is going wrong here. I am pretty new to ArcGis Pro so any help would be appreciated.

0 Kudos
2 Replies
DrVSSKiran
Occasional Contributor II

Hi, Can you disable the topographic elevation layer in the table of content and see how it looks.



0 Kudos
EdwinLoughry
New Contributor

It appears to be a 2d polygon.


0 Kudos
