ESRI GRID Raster Import Error 160180

787
7
Jump to solution
05-20-2021 03:35 PM
Labels (1)
billhcheese
New Contributor II

I cannot import an ESRI Grid File Raster Type into ArcGISPro. I am getting an error listed below:

ERROR 160180: The junction has invalid geometry (i.e., non-point or invalid location).
Failed to execute (CopyRaster).



As of now, I am importing the data using the Raster To Geodatabse Geoprocessing Tool. And then trying to map it from the Geodatabase.

Does anyone know how to fix this?

The raster data I'm trying to import is this data set from the United Nations http://www.fao.org/geonetwork/srv/en/main.home?uuid=221072ae-2090-48a1-be6f-5a88f061431a

Thanks!

0 Kudos
1 Solution

Accepted Solutions
JayantaPoddar
MVP Esteemed Contributor

I am sharing the file here. Just to ensure the downloaded data is fine.

Please download and extract it under a simple path (e.g. C:\MyProject\Data).

Try adding the data again. You may also reboot your machine, if the issue persists.



Think Location

View solution in original post

7 Replies
JayantaPoddar
MVP Esteemed Contributor

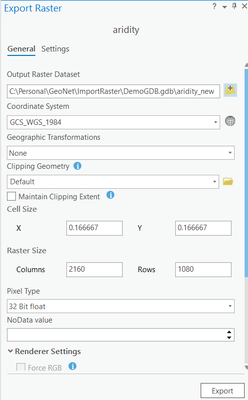

Could you add the original raster to ArcGIS Pro, and right-click Raster Layer > Data > Export Raster.

Save the Raster in a Geodatabase.









Think Location
billhcheese
New Contributor II

I think I just want to add the ESRI Grid file to ArcGIS Pro first, but don't know how. How did you add it?

0 Kudos
JayantaPoddar
MVP Esteemed Contributor

In used the Add Data Option




Could you confirm if you working on the "Aridity" Raster? This is how the zipped file looks for me (in Windows Explorer).






Think Location
0 Kudos
billhcheese
New Contributor II

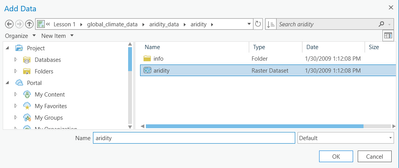

Yep! So I'm unzipping the aridity.zip file and using add data to select it shown in the screenshot below.

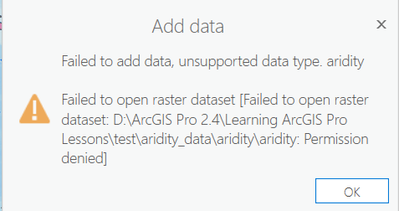

When I select the aridity Raster Dataset I get the error below.




0 Kudos
JayantaPoddar
MVP Esteemed Contributor

I am sharing the file here. Just to ensure the downloaded data is fine.

Please download and extract it under a simple path (e.g. C:\MyProject\Data).

Try adding the data again. You may also reboot your machine, if the issue persists.



Think Location
billhcheese
New Contributor II

That worked! I think it was because there were space characters in my file path. Thank a lot Jayanta!!

0 Kudos
JayantaPoddar
MVP Esteemed Contributor

Here is a nice blog for you to read. How To Name Things In ArcGIS

Cheers!



Think Location
