Displaying a raster in a 3D local scene in ArcGIS PRO

11-13-2018 07:53 AM
Occasional Contributor

I am trying to display a raster in 3d Local scene,  I can't drag the layer from the 2D layers to 3D Layers.

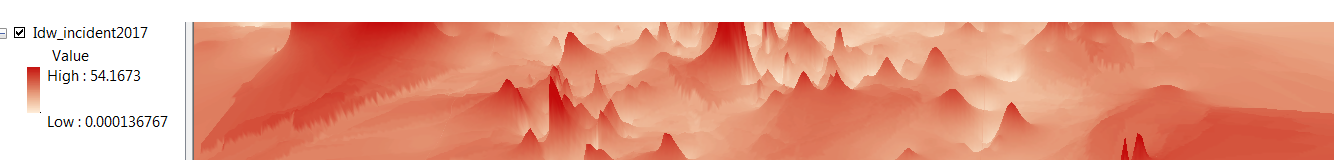

I am able to create the 3d in ArcScene see pic below -  is it possible to create the same Scene in ArcGIS PRO


Tags (2)
7 Replies
by Anonymous User
Not applicable

Hi Husham,

Rather than clicking and dragging the elevation raster in the 3D section, in ArcGIS Pro, we can define it as an elevation surface. Here's the documentation on that:

Elevation surfaces—Properties of maps | ArcGIS Desktop

Occasional Contributor III

Hi Lauren Dreyfuss‌,

What is the workflow to simultaneously view multiple surface rasters in 3D In the scene view in ArcGIS Pro?

Say we have 2 or 3 different surface datasets and we want to compare them?



0 Kudos
New Contributor III

Following here. We have subsurface rasters that we need to drop below surface. However, all rasters are displayed under 2D layers and not a clue anywhere why we can't make them into 3D. We don't need to make elevation surfaces out of them because they are not surfaces. But we do want to display them with all 3D elevations as per values embedded in the pixels.

New Contributor

I know this is from a while ago, but did you ever find a solution to this issue?  We're trying to do the same thing and haven't had much luck.

0 Kudos
New Contributor III

following this question. when i click "Layer -> Add Data -> Elevation Source Layer" and navigate to the folder containing my raster dataset, it says "This container is empty" and the dataset isn't available.

0 Kudos
New Contributor II

Was this ever solved? I also have a raster that I want to look at in 3d space. Its not meant to replace the land surface, its below the land surface, so i want to be able to see it at the same time as the land surface.

Its pretty frustrating that ESRI has taken what used to be a simple process and made it so cryptic that they can't seem to answer basic questions about it clearly.

New Contributor III

Hey Aaron, check out this post.
