Difference in rotation symbology map view and layout view

92
2
Jump to solution
11-10-2021 04:46 AM
RobinRutten_arc
New Contributor

For a project I want to visualize arrows pointing into the direction of the camera that took a picture. This is easily to visualize by using Vary Symbology By Attribute and use the rotation field. However, when switching to the lay-out view, the rotation does not change according to my layout rotation. See the illustrations below for a visual example:

To nicely visualize the train tracks, I rotated my layout view in such a way the tracks are horizontal. As you can see, the arrows change nice of location. But the direction the arrow is pointing to remains the same.

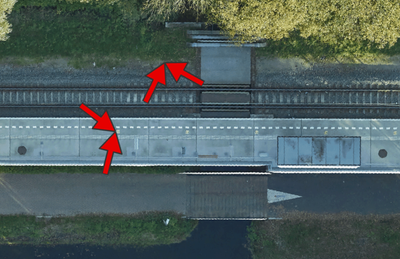

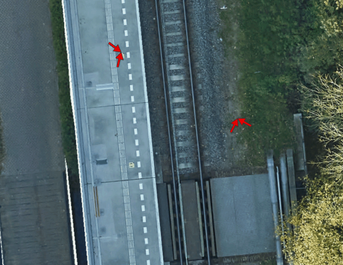

Map view:                                                                             Layout view:


Does anyone know a trick to overcome this problem?

0 Kudos
1 Solution

Accepted Solutions
CarlMorrison
Occasional Contributor

Robin,

Without testing this myself, have you tried changing the Angle Alignment setting under the Format Point Symbol/Properties/Symbol from Display to Map?

Carl

View solution in original post

0 Kudos
2 Replies
CarlMorrison
Occasional Contributor

Robin,

Without testing this myself, have you tried changing the Angle Alignment setting under the Format Point Symbol/Properties/Symbol from Display to Map?

Carl

0 Kudos
RobinRutten_arc
New Contributor

Hi Carl,

I have tried your suggestion and it worked! Thanks!
