Custom Grid Snapping to Clip Shape

04-19-2022 02:54 PM
Labels (1)
New Contributor III

I have two custom grids, one for PLSS Townships and the other for PLSS Ranges. When I add them to a layout and the map in the map frame is clipped to the boundary of a shape, the labels are displayed around the boundary of that clip shape.

When I use a built-in grid, like a UTM grid, there is an option to not use the map clip shape as the grid boundary, but there is no such option in the element properties for the custom grids.

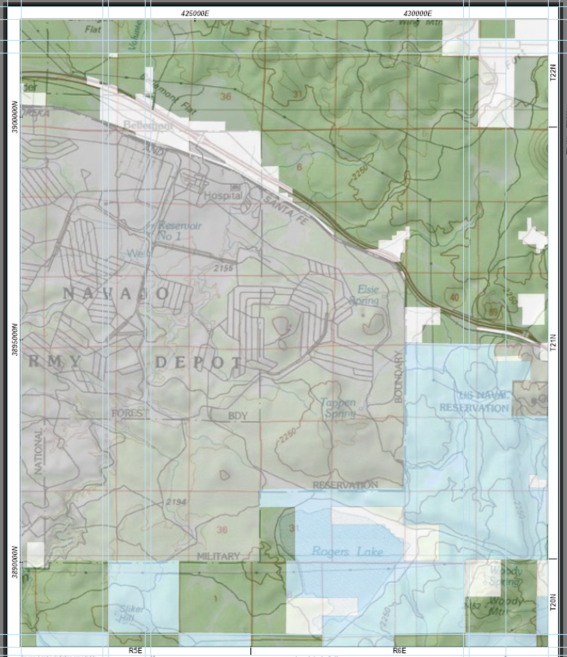

This is what the layout looks like when the map is not clipped (UTM grid at top and left, Township grid at right, Range grid at bottom):

PLSS Grid issue1.PNG

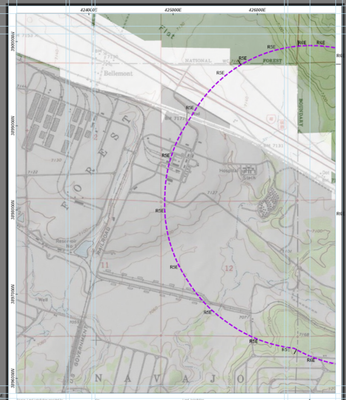

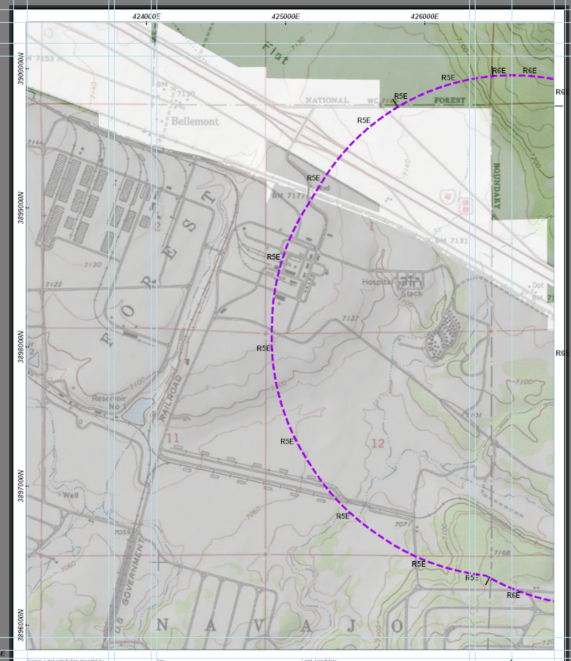

This is what the layout looks like when the map is clipped (UTM grid at top and left, Range grid all around the shape, no Township grid):

PLSS Grid issue2.PNG












Is there any way to have the custom grids use the Map Frame rather than the clip shape?

Tags (1)
0 Kudos
2 Replies
MVP Esteemed Contributor

Custom grids—ArcGIS Pro | Documentation only suggests converting grids to graphics

... sort of retired...
0 Kudos
New Contributor III

That's about the only thing I could find, too. We already have township and range labels in the layout template from when we were doing it manually, so converting the grid to graphics before clipping the map shape doesn't save any time, really, since there are always little tweaks to be made.



0 Kudos
