Construct Symbology using ArcGIS Pro application

282
2
Jump to solution
10-11-2021 05:34 AM
by Anonymous User
Not applicable

Hi,

I need to add a symbology to a feature layer using the labelling properties symbol option (or if there is another way), and I want to customize the symbology as shown in screenshot 2.

Could someone please show me how to create the same symbology using the Arcgis Pro application?

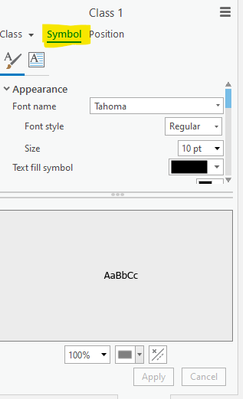

screenshot 1:

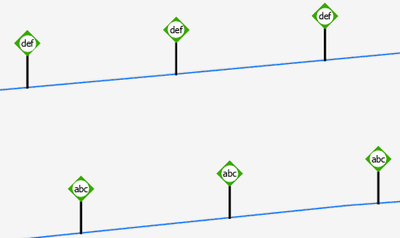

screenshot 2: Expected symbology


Thanks in advance.

0 Kudos
1 Solution

Accepted Solutions
JohannesLindner
MVP Regular Contributor

I'd do it with the symbology.

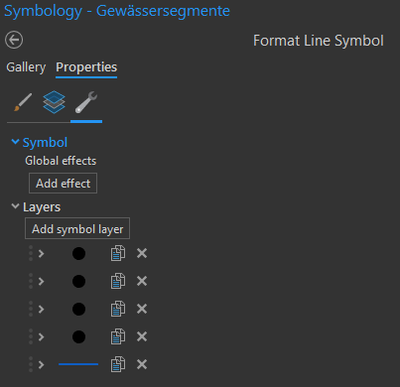

  • Go to the symbol's properties and add 4 marker layers:
  • 1st Marker:

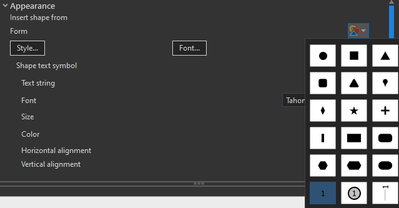

    • use this form:
    • activate symbol property connections and map the "Text string" variable to your text field
    • set font attributes
  • 2nd marker: set color to white, set size
  • 3rd marker: switch to square, set color to green, rotate by 45°, set size (size of second marker + 2 )
  • 4th marker: switch to line, set "Shape line symbol" to "Single stroke"

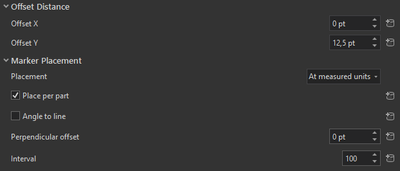

  • all markers: set "Offset Y" (4th marker to half of the others), uncheck "Angle to line", set "Placement" to something appropriate (I chose "At measured units" with an interval of 100m)
  • 4th marker: set size to the "Offset Y" of the other markers







Have a great day!
Johannes

View solution in original post

2 Replies
JohannesLindner
MVP Regular Contributor

I'd do it with the symbology.

  • Go to the symbol's properties and add 4 marker layers:
  • 1st Marker:
    • use this form:
    • activate symbol property connections and map the "Text string" variable to your text field
    • set font attributes
  • 2nd marker: set color to white, set size
  • 3rd marker: switch to square, set color to green, rotate by 45°, set size (size of second marker + 2 )
  • 4th marker: switch to line, set "Shape line symbol" to "Single stroke"
  • all markers: set "Offset Y" (4th marker to half of the others), uncheck "Angle to line", set "Placement" to something appropriate (I chose "At measured units" with an interval of 100m)
  • 4th marker: set size to the "Offset Y" of the other markers







Have a great day!
Johannes
by Anonymous User
Not applicable

Thank you very much, @JohannesLindner. It worked pretty well for me!



Cheers!
