Color Blind Color Palette - Pro

9065
6
Jump to solution
08-14-2020 06:36 AM
chadhickman
Occasional Contributor III

Does anyone which color palettes are color blind friendly in Pro? Thanks

1 Solution

Accepted Solutions
EdiePunt
Esri Contributor

Hello Chad,

One of the system styles included in the installation of ArcGIS Pro is called ColorBrewer Schemes (RGB). The schemes in it that are color blind friendly are tagged as such. When you review this style in a Catalog view, you can search on "color blind", and those schemes will be returned.

To search, open the style in a Catalog view, ensure the Details Panel is open (View tab, Options group), and enter your search in the bar at the top of the Details Panel.

Also included in the installation is a CMYK version of these schemes. If you need to work in CMYK instead, add this style: Insert tab, Styles group  > Add > Add System Style > Expand Colors and Color Schemes > check the CMYK style.

Edie

View solution in original post

6 Replies
DanPatterson
MVP Esteemed Contributor

According to

What's new in ArcGIS Pro 2.3—ArcGIS Pro | Documentation

Styles

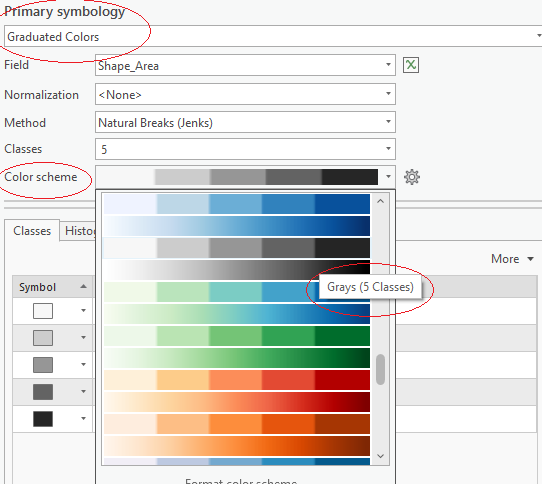

Now, make sure you click on the drop down to see the colors and check on Show Names and Show All

There might be more, but that will get you started hopefully


... sort of retired...
EdiePunt
Esri Contributor

Hello Chad,

One of the system styles included in the installation of ArcGIS Pro is called ColorBrewer Schemes (RGB). The schemes in it that are color blind friendly are tagged as such. When you review this style in a Catalog view, you can search on "color blind", and those schemes will be returned.

To search, open the style in a Catalog view, ensure the Details Panel is open (View tab, Options group), and enter your search in the bar at the top of the Details Panel.

Also included in the installation is a CMYK version of these schemes. If you need to work in CMYK instead, add this style: Insert tab, Styles group  > Add > Add System Style > Expand Colors and Color Schemes > check the CMYK style.

Edie

chadhickman
Occasional Contributor III

Thank you !

0 Kudos
ShaneR
by
New Contributor II

Hi Edie,

Is there any way to see the tags ("color blind safe") when searching through the actual symbology pane color scheme dropdown? It would be very helpful to not have to switch back to catalog window > styles in order to see tags every time you want to apply a color scheme to your symbology. Perhaps to show the tags when you hover over the color in the color schemes drop down. Thanks.






AmyRoust
Regular Contributor

I agree with you, ShaneR - switching between Catalog and Symbology is not user friendly. You should be able to filter your color scheme choices to color blind safe inside the Symbology pane. Anyone know if that is in ArcGIS Ideas?

0 Kudos
Anne-MarieDubois
Occasional Contributor

For those like me who are visual and get easily lost in the mayhem that is Pro sometimes, here is WHERE you can find what you are looking for:

1) Open Catalog View




2) It opens automatically on Project view. You need to change that for "Styles"


3) Double click ColorBrewer Scheme


4) ONLY THEN you can manage to use the search bar for color blind safe tags (or if you use French like me, "Spécial pour daltonien")
