Changing Patch Shape (ArcGIS Pro 2.8)

886
7
Jump to solution
07-06-2021 03:45 PM
Angus_Hunt
New Contributor III

Hi there,

I'm trying to change the patch type of legend elements that represent polygon features in an ArcGIS Pro (2.8) project. However, using the patch shape selector has not effect. Searching up about this functionality shows that back in 2016 and 2017 there wasn't any functionality for this. Is this still the case?

Images:

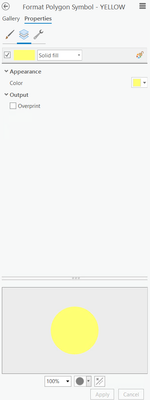

Supposedly, the patch shape has been altered.


As shown in the legend, this is not the case.



1 Solution

Accepted Solutions
DanPatterson
MVP Esteemed Contributor

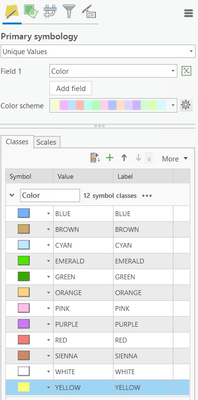

i could change the patch shape one at a time



... sort of retired...

View solution in original post

7 Replies
JayantaPoddar
MVP Esteemed Contributor

Check this out

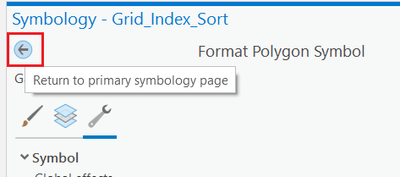

Return to primary symbology page

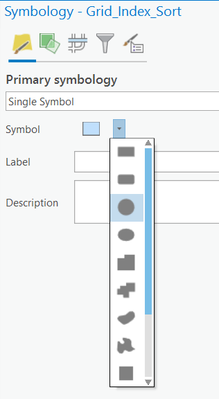

Change the patch shape from the drop-down as shown below.




This will change the shape not only in the Contents pane, but also in the Legends.



Think Location
Angus_Hunt
New Contributor III

Thanks Jayanta, but I need the primary symbology for the layer to be classed by unique values. The screenshots from before were from trying to manually change the symbol of certain classes, without success.


Ideally, all of these symbols would be circular.

0 Kudos
JayantaPoddar
MVP Esteemed Contributor

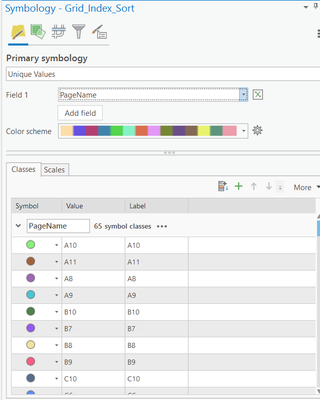

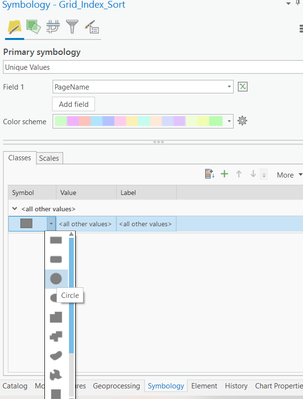

The only way it works with unique values symbology (apart from changing them individually), is to select the patch shape first (soon after changing the primary symbology to unique values).




Then select the field 1 or Add all values




You could check with the Esri Technical Support, why the Patch shape doesn't change (gets applied) when accessed from "Format All Symbols" option.





Think Location
0 Kudos
Angus_Hunt
New Contributor III

Many thanks, Jayanta! This is a great timesaver.

0 Kudos
DanPatterson
MVP Esteemed Contributor

i could change the patch shape one at a time



... sort of retired...
Angus_Hunt
New Contributor III

Thanks, Dan! The little highlighted dropdown arrow in your image was the giveaway that I needed. I am not sure whether using the shape selector in the 'properties' > 'layers' options of legend items is supposed to do anything, but I'm glad that at least this way works.

0 Kudos
DanPatterson
MVP Esteemed Contributor

little drop down arrows should flash ;)




... sort of retired...
0 Kudos
