Hi,

I have a dgn file which when viewed in Pro gives different level/layer names than when opened in Bentley View/Microstation.

The below images show the file opened from dgn in Pro, converted to a gdb using CAD2GDB in Pro and opened in Bentley View. You can see that the selected feature is assigned a different level/layer name.

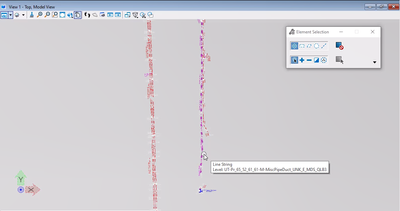

CAD opened in Bentley ViewCAD opened in Bentley View

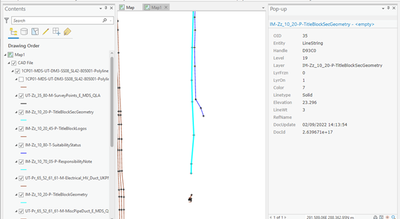

CAD opened in ProCAD opened in Pro

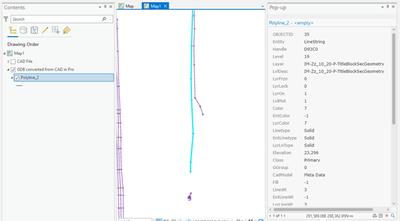

CAD converted to GDB in ProCAD converted to GDB in Pro





















Would anybody have any ideas why this may be happening? Obviously, it is causing me issues when trying to classify features using level names.
