# Arcade: What does "zero-dimensional geometry" mean?

529
7
03-08-2022 12:40 AM
by
Frequent Contributor

From the Arcade developer docs: Type System - Point:

A point is a zero-dimensional geometry.

What is meant by "zero-dimensional geometry"?

If anything, I would have thought that X, Y, Z would be the dimensions of geometry. How can there be zero dimensions?

1 Solution

Accepted Solutions
MVP Regular Contributor

Coordinates by themselves aren't dimensions. Points have no dimensions. Lines have a single dimension, length. Polygons are two dimensional, they have length and width, three dimensional geometries also have height or depth.

More specifically, the number of dimensions of an object is how many values or coordinates (note not coordinate pairs) are needed to locate a point on that object.  You don't need anything to locate a point on a point. You can locate a point along a line with a single x or y coordinate (or distance value). To locate a point in a polygon  or on a surface, you need both x and y. And to locate a point in a 3d object, say a cube, you need x, y and z coordinates.

7 Replies
MVP Regular Contributor

Coordinates by themselves aren't dimensions. Points have no dimensions. Lines have a single dimension, length. Polygons are two dimensional, they have length and width, three dimensional geometries also have height or depth.

More specifically, the number of dimensions of an object is how many values or coordinates (note not coordinate pairs) are needed to locate a point on that object.  You don't need anything to locate a point on a point. You can locate a point along a line with a single x or y coordinate (or distance value). To locate a point in a polygon  or on a surface, you need both x and y. And to locate a point in a 3d object, say a cube, you need x, y and z coordinates.

by
Frequent Contributor

Thanks. And I suppose the dimensions of the geometry are not to be confused with the dimensions of an array?

### Polyline

A polyline is a one-dimensional geometry. This may be created by passing JSON in the format described below to the Polyline() function or by passing a polyline feature to the Geometry() function.

Property Type Description

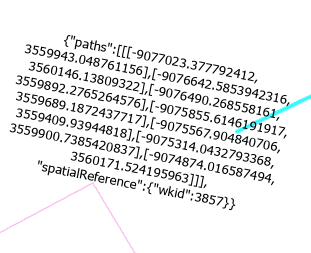

 type text Indicates the geometry type. This value is always  polyline. paths number[][][] A three-dimensional array of numbers. The inner-most array contains the x,y,z,m coordinates of a single point. The second dimension contains additional points making up a line segment. The third dimension allows the polyline to have multiple segments.

I find the description of the paths array confusing.

I wonder if an explanation like this would be better (although, it is similar to Esri's explanation):

- An outer array to hold the multi-parts.        [multiple parts here]
- A middle array of one or more multi-parts.[multiple parts: [p0]  [p1 ]
- An inner array that is the sets of vertices:    [multiple parts: [p0:  [X,Y], [X,Y], [X,Y] ]  [p:1  [X,Y], [X,Y]  ] ]

That explanation seems more intuitive to me.

Related: Idea - Improve Arcade polyline paths array documentation

MVP Regular Contributor

Multipart geometry confuses things, it's a bit of an artificial construct. Each part is a 1D line, but I guess a multipart line needs 2 values to locate a point on it, an x or y coordinate and the part number. So maybe it could be considered 2D......? To theoretical for me though!

I prefer the inner->outer Esri definition rather than the outer->inner order you describe. Just the way I think, building things up rather than picking it apart.

MVP Esteemed Contributor

Three-dimensional space - Wikipedia

Dimension - Wikipedia

There are other types of dimensional space, but Arcade won't be able to handle those

... sort of retired...
MVP Esteemed Contributor

No, the array can have more than one dimension, it is a different "dimension"  A multipart shape polyline or multipart polygon or multipoint doesn't alter the underlying geometry dimensionality.

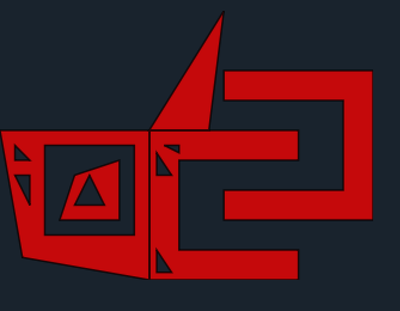

Simple multipart polygons with inner and outer rings as arrays (numpy arrays)

``````multi.prn_obj()

Array structure by sub-array.
0...
array([array([array([[ 10.00,  10.00],
[ 10.00,   0.00],
[  1.50,   1.50],
[  0.00,  10.00],
[ 10.00,  10.00]]), array([[  3.00,   9.00],
[  3.00,   3.00],
[  9.00,   3.00],
[  9.00,   9.00],
[  3.00,   9.00]]), array([[2.00,   7.00],
[  1.00,   7.00],
[  2.00,   5.00],
[  2.00,   7.00]]), array([[  2.00,   8.00],
[  1.00,   9.00],
[  1.00,   8.00],
[  2.00,   8.00]])],
dtype=object)                                                                                                ,
array([array([[  8.00,   8.00],
[  8.00,   4.00],
[  4.00,   4.00],
[  5.00,   7.00],
[  8.00,   8.00]]), array([[  6.00,   7.00],
[  5.00,   5.00],
[  7.00,   5.00],
[  6.00,   7.00]])], dtype=object)], dtype=object)
1...
array([array([[ 25.00,  14.00],
[ 25.00,   4.00],
[ 15.00,   4.00],
[ 15.00,   6.00],
[ 23.00,   6.00],
[ 23.00,  12.00],
[ 15.00,  12.00],
[ 15.00,  14.00],
[ 25.00,  14.00]]),
array([array([[ 20.00,  10.00],
[ 20.00,   8.00],
[ 12.00,   8.00],
[ 12.00,   2.00],
[ 20.00,   2.00],
[ 20.00,   0.00],
[ 10.00,   0.00],
[ 10.00,  10.00],
[ 14.00,  10.00],
[ 20.00,  10.00]]), array([[ 11.00,   9.00],
[ 12.00,   8.50],
[ 12.00,   9.00],
[ 11.00,   9.00]]), array([[ 10.50,   8.50],
[ 10.50,   7.00],
[ 11.50,   7.00],
[ 10.50,   8.50]]), array([[ 10.50,   2.00],
[ 10.50,   0.50],
[ 11.50,   0.50],
[ 10.50,   2.00]])],
dtype=object)                                                                                                ],
dtype=object)
2...
array([[ 14.00,  10.00],
[ 10.00,  10.00],
[ 15.00,  18.00],
[ 14.00,  10.00]])``````

... sort of retired...
by
Frequent Contributor

Related:

ST_Geometry SQL function reference (page 14)

Dimensionality

The dimensions of a geometry are the minimum coordinates (none, x, y) required to define the spatial extent of the geometry.

A geometry can have a dimension of 0, 1, or 2.

The dimensions are as follows:
• 0—Has neither length nor area
• 1—Has a length (x or y)
• 2—Contains area (x and y)

Point features have a dimension of 0, lines a dimension of 1, polygons a dimension of 2.

Dimension is important not only as a property of the subtype but also in determining the spatial relationship of two features. The dimension of the resulting feature or features determines whether or not the operation was successful. The dimensions of the features are examined to determine how they should be compared.

The coordinates of a geometry also have dimensions. If a geometry has only x- and y-coordinates, the coordinate dimension is 2. If a geometry has x-, y-, and z-coordinates, the coordinate dimension is 3. If a geometry has x-, y-, z- , and m-coordinates, the coordinate dimension is 4.

So it sounds like there are different concepts of “dimensions”:

• Geometry dimensions
• Coordinate dimensions
MVP Esteemed Contributor

lets not forget the often missing, and assumed fixed, temporal dimension

... sort of retired...
