Show the radius/area of a graphic circle when drawing a graphic circle

320
1
09-16-2021 04:56 AM
Status: Open
Labels (1)
DuncanHornby
MVP Frequent Contributor

ArcPro has the graphics layer which you can capture ad hoc graphics into.

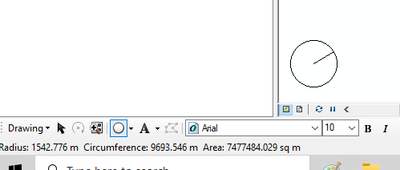

Something I do in ArcMap is draw a graphic circle in a map (not layout) out to an approximate radius and I can do this because ArcMap shows in the status bar this information as shown below




The tool for drawing a circle in a graphics layer does not show this important information, so you have no idea what the radius of your circle your are drawing is.

Please enable ArcPro to show this. If you use the measuring tool you get a little tool tip box that follows your cursor around. Either have something like that or report it in the status bar.



1 Comment
KoryKramer

Thank you, Duncan.  Just noting these down here as related requests...

Very related to this Editing idea:  Live total lenght mesurement of polyline when edit... - Esri Community

Somewhat related to  Pro: Auto Labeling Area and border Length during e... - Esri Community  as the fundamental request is to "obtain the border length and Area during polygon editing in real time"

And  Geometry Info (area, length, etc.) for Graphic Ele... - Esri Community  which is in the properties rather than displayed dynamically while drawing.
