How do I construct a polygon based on this type of information

302
4
Jump to solution
11-21-2019 03:51 PM
JakeRattner
New Contributor II

I'm pulling data from a website: http://www.arcgis.com/home/webmap/viewer.html?webmap=63f5ed7142a04d2486b75434511855b7&extent=-77.152...

or at least I'm trying to. I have a sense that the shapefile info can be extracted from this site.  I am open to any method, but noticed that when I inspect the element I can view some of the content of each section of the file.  The result looks something like this (see below).

Is it possible to convert such information into a shapefile (or any useable format)?  If yes, does anyone have any insight into how?

Thanks for any feedback in advance!
Jake

ill: none;
fill-opacity: 0;
stroke: rgb(0, 112, 255);
stroke-opacity: 1;
stroke-width: 1.33333;
stroke-linecap: butt;
stroke-linejoin: miter;
stroke-miterlimit: 4;
d: path("M 1036 922 L 1033 925 M 1024 898 L 1026 891 L 1023 885 M 1032 887 L 1035 882 M 1018 886 L 1018 882 M 1030 875 L 1024 879 M 1030 875 L 1035 876 M 1030 875 L 1023 874 M 1030 875 L 1033 871 M 1002 869 L 1005 864 M 989 869 L 989 868 M 1028 868 L 1022 869 M 1028 868 L 1029 867 M 1028 868 L 1021 866 M 1028 867 L 1032 865 M 989 868 L 991 869 M 989 868 L 989 865 M 1026 861 L 1019 862 M 1026 861 L 1030 861 M 1026 861 L 1028 859 M 997 860 L 996 861 L 996 860 M 1019 857 L 1022 851 L 1015 851 M 1004 854 L 1000 842 M 1010 851 L 1006 839 M 994 847 L 988 846 L 990 841 M 975 842 L 981 837 L 984 833 M 1007 837 L 1009 832 L 1003 829 M 978 834 L 972 838 M 984 831 L 981 824 M 998 830 L 993 819 M 969 829 L 966 832 M 1022 827 L 1026 829 M 990 828 L 987 821 M 980 828 L 972 827 L 975 822 M 967 822 L 965 825 M 998 819 L 1004 818 L 998 816 M 970 817 L 972 814 M 964 816 L 960 817 M 1001 812 L 996 815 M 1155 806 L 1153 808 M 975 809 L 977 813 M 982 807 L 982 812 M 982 807 L 986 809 M 982 807 L 984 800 M 967 805 L 971 807 M 967 805 L 958 804 M 967 805 L 970 801 M 996 794 L 989 796 M 964 795 L 957 792 M 957 792 L 955 793 M 957 792 L 955 792 M 976 787 L 978 782 L 983 785 M 993 787 L 987 789 M 971 785 L 969 790 M 971 785 L 976 788 M 971 785 L 970 780 M 963 780 L 955 786 M 963 780 L 967 779 M 963 780 L 955 779 M 982 774 L 986 771 L 980 771 M 961 773 L 964 774 M 961 773 L 955 772 M 961 773 L 963 770 M 1089 769 L 1093 767 L 1088 765 M 980 769 L 982 763 L 977 762 M 956 767 L 963 765 M 1038 765 L 1039 757 M 1080 761 L 1085 757 M 976 760 L 979 757 L 973 754 M 1028 759 L 1027 764 M 985 759 L 987 757 M 1095 755 L 1095 755 M 1073 755 L 1073 755 L 1071 753 M 949 758 L 947 759 M 949 758 L 948 761 M 949 758 L 947 756 M 1073 755 L 1072 760 M 959 757 L 961 757 M 1021 756 L 1020 759 M 1098 754 L 1098 754 M 982 755 L 987 752 M 973 754 L 976 748 L 970 745 M 1093 750 L 1089 754 M 953 753 L 961 751 M 981 748 L 984 747 M 978 747 L 984 744 M 952 746 L 960 745 M 963 742 L 956 738 M 976 739 L 980 734 M 964 738 L 966 740 M 956 738 L 952 744 M 956 738 L 949 734 M 957 733 L 960 733 L 960 730 M 952 730 L 947 731 M 952 730 L 955 731 M 952 730 L 954 727 M 947 728 L 951 722 L 945 718 M 975 726 L 977 726 M 966 719 L 962 720 M 943 716 L 950 714 M 974 714 L 980 717 M 974 714 L 982 713 M 974 714 L 972 713 M 1008 711 L 1010 715 M 1046 705 L 1044 705 M 1046 705 L 1046 706 M 1045 703 L 1046 705 M 945 705 L 940 708 M 945 705 L 948 705 M 945 705 L 945 703 M 981 704 L 984 712 M 981 704 L 988 707 M 981 704 L 980 698 M 1043 702 L 1042 703 M 1043 702 L 1043 704 M 1045 702 L 1043 702 M 1045 702 L 1045 703 M 1044 702 L 1045 702 M 995 702 L 991 703 M 1018 699 L 1019 698 M 1049 696 L 1045 703 M 1008 694 L 1011 692 M 928 695 L 926 701 M 928 695 L 931 701 M 928 695 L 931 692 M 928 695 L 926 692 M 922 695 L 923 701 M 936 694 L 937 699 M 957 689 L 951 695 L 954 686 M 992 687 L 991 682 M 1044 682 L 1042 687 M 952 684 L 946 689 L 951 681 M 945 683 L 949 680 M 936 682 L 934 684 M 947 680 L 940 679 L 940 672 M 929 677 L 927 678 M 1031 674 L 1028 674 M 938 671 L 933 673 L 934 666 M 922 670 L 920 672 M 1029 667 L 1031 664 M 984 667 L 986 674 M 984 667 L 987 666 M 984 667 L 984 663 M 975 664 L 977 664 L 977 661 M 923 665 L 930 665 M 1023 660 L 1018 661 M 1023 660 L 1023 668 M 1023 660 L 1028 660 M 1023 660 L 1025 658 M 1023 660 L 1023 656 M 915 662 L 913 664 M 1017 657 L 1010 657 M 1009 649 L 1007 652 M 999 646 L 996 649 M 1037 641 L 1037 638 M 993 579 L 997 578 M 882 537 L 883 532 M 873 524 L 879 524 M 1111 511 L 1114 502 L 1106 505 M 867 515 L 868 509 M 1143 505 L 1154 509 M 1103 500 L 1109 493 L 1099 495 M 979 502 L 981 504 M 1147 497 L 1151 501 M 1147 497 L 1138 497 M 1147 497 L 1155 493 M 1133 497 L 1131 509 L 1127 497 M 1078 498 L 1083 491 L 1087 497 M 878 502 L 883 503 M 1067 496 L 1067 489 L 1062 494 M 1031 494 L 1026 489 L 1024 494 M 1075 490 L 1076 497 M 1108 486 L 1102 481 L 1110 474 M 982 488 L 978 489 L 982 492 M 1095 485 L 1090 497 M 1095 485 L 1095 497 M 1095 485 L 1087 480 M 1061 485 L 1058 493 M 1131 481 L 1128 488 M 1138 481 L 1132 489 M 1138 481 L 1135 491 M 1138 481 L 1146 477 M 1028 483 L 1037 490 M 989 483 L 997 489 M 1056 479 L 1051 485 M 1003 479 L 998 473 M 980 477 L 977 481 L 982 483 M 1125 473 L 1117 480 M 1138 473 L 1138 481 M 1024 474 L 1016 477 M 1024 474 L 1030 473 M 1024 474 L 1028 468 M 1050 472 L 1049 480 M 1050 472 L 1061 466 M 1050 472 L 1056 460 M 998 473 L 993 476 M 998 473 L 1004 475 M 1128 468 L 1119 471 M 1128 468 L 1118 466 M 1128 468 L 1131 462 M 890 473 L 891 466 M 1105 467 L 1094 469 M 1105 467 L 1112 467 M 1105 467 L 1111 463 M 1105 467 L 1095 463 M 901 471 L 902 466 L 906 469 M 995 468 L 998 473 M 978 468 L 974 471 L 980 473 M 1007 466 L 1013 464 L 1009 468 M 891 466 L 895 460 M 891 466 L 888 459 M 941 464 L 943 459 L 945 451 M 1081 459 L 1075 465 M 1081 459 L 1079 466 M 1081 459 L 1085 458 M 1081 459 L 1085 455 M 997 460 L 1003 458 M 953 460 L 956 456 M 1038 458 L 1028 462 M 926 461 L 930 457 L 931 462 M 1104 456 L 1095 458 M 1104 456 L 1113 457 M 1104 456 L 1095 453 M 1104 456 L 1111 452 M 964 459 L 966 454 M 876 460 L 881 461 M 956 456 L 960 459 M 956 456 L 957 448 M 1073 453 L 1067 456 M 1073 453 L 1076 452 M 1073 453 L 1075 450 M 1033 452 L 1026 454 M 912 455 L 915 458 M 916 452 L 921 445 L 925 442 M 950 449 L 956 456 M 1109 445 L 1103 443 L 1107 438 M 929 448 L 930 453 L 933 450 M 1053 444 L 1053 450 M 1053 444 L 1061 448 M 1053 444 L 1048 442 M 1053 444 L 1052 439 M 964 446 L 966 447 L 962 448 M 1021 444 L 1026 444 L 1031 439 M 984 444 L 992 448 M 984 444 L 993 444 M 984 444 L 979 442 M 876 447 L 869 448 M 876 447 L 885 448 M 876 447 L 884 442 M 1011 441 L 1007 436 M 932 440 L 936 435 L 939 439 M 958 438 L 963 433 L 958 431 M 1103 434 L 1096 439 M 900 438 L 908 440 M 1090 430 L 1086 421 L 1081 417 M 1028 430 L 1029 434 M 1028 430 L 1032 430 M 1028 430 L 1023 423 M 940 432 L 945 431 M 1074 429 L 1075 439 M 1074 429 L 1079 435 M 1074 429 L 1069 427 M 1074 429 L 1073 423 M 876 433 L 871 437 M 876 433 L 884 437 M 876 433 L 871 431 M 876 433 L 884 428 M 908 432 L 917 434 M 908 432 L 902 430 M 908 432 L 915 427 M 1107 427 L 1101 425 L 1106 421 M 986 429 L 978 431 M 986 429 L 995 431 M 986 429 L 981 426 M 1083 426 L 1086 433 M 1053 424 L 1048 428 M 1053 424 L 1062 425 M 1053 424 L 1048 422 M 927 427 L 941 421 M 956 425 L 960 421 L 955 419 M 904 424 L 901 426 M 908 423 L 915 424 M 906 423 L 913 417 M 1033 418 L 1025 419 M 1033 418 L 1038 423 M 1033 418 L 1039 417 M 1033 418 L 1027 413 M 989 419 L 994 426 M 989 419 L 998 420 M 989 419 L 984 417 M 989 419 L 988 412 M 874 421 L 869 425 M 874 421 L 881 425 M 874 421 L 882 421 M 874 421 L 881 417 M 874 421 L 870 417 M 1009 417 L 1005 426 M 1009 417 L 1014 414 M 1009 417 L 1010 412 M 1059 415 L 1053 415 M 1059 415 L 1066 420 M 1059 415 L 1056 410 M 935 414 L 928 420 M 935 414 L 940 415 M 935 414 L 926 413 M 935 414 L 939 409 M 955 411 L 958 408 L 954 407 M 1065 408 L 1071 406 M 1065 408 L 1061 404 M 1065 408 L 1068 403 M 907 410 L 900 410 M 907 410 L 915 414 M 907 410 L 903 405 M 1093 405 L 1087 405 M 1093 405 L 1090 412 M 1093 405 L 1099 404 M 1093 405 L 1096 400 M 875 410 L 869 411 M 875 410 L 883 414 M 875 410 L 870 405 M 1006 406 L 1001 405 L 1003 401 M 933 403 L 924 404 M 933 403 L 927 410 M 933 403 L 938 403 M 933 403 L 935 397 M 952 402 L 957 398 L 951 396 M 1038 398 L 1042 409 M 1038 398 L 1048 402 M 1038 398 L 1032 397 M 1038 398 L 1036 393 M 913 399 L 917 407 M 913 399 L 906 398 M 913 399 L 911 394 M 880 399 L 885 408 M 880 399 L 889 402 M 880 399 L 874 397 M 880 399 L 877 393 M 1084 393 L 1076 394 M 1084 393 L 1079 400 M 1084 393 L 1089 392 M 1084 393 L 1086 388 M 991 394 L 982 397 M 991 394 L 987 403 M 991 394 L 996 393 M 991 394 L 993 389 M 1016 393 L 1013 387 L 1009 390 M 916 391 L 922 391 L 920 389 M 1048 387 L 1053 396 M 948 389 L 954 386 L 948 384 M 884 390 L 888 400 M 884 390 L 879 389 M 884 390 L 882 384 M 852 390 L 853 390 M 1018 386 L 1023 383 M 982 384 L 979 389 M 982 384 L 976 384 M 982 384 L 990 382 M 982 384 L 987 376 M 929 384 L 933 389 M 1055 381 L 1062 388 M 1055 381 L 1049 379 M 1055 381 L 1054 374 M 1075 380 L 1067 382 M 1075 380 L 1072 387 M 1075 380 L 1080 379 M 892 383 L 896 392 M 892 383 L 901 386 M 892 383 L 886 380 M 892 383 L 891 376 M 1036 379 L 1032 384 M 1036 379 L 1040 376 M 1036 379 L 1035 374 M 1020 379 L 1017 373 M 853 382 L 860 373 M 1007 378 L 1003 381 M 1007 378 L 1007 382 M 1007 378 L 1011 372 M 1022 376 L 1024 374 M 916 379 L 919 373 L 922 378 M 1093 374 L 1087 374 M 1093 374 L 1091 379 M 1093 374 L 1097 368 M 974 376 L 977 372 L 971 372 M 904 375 L 906 384 M 904 375 L 910 381 M 904 375 L 900 370 M 1078 370 L 1075 364 L 1071 361 M 996 372 L 999 370 L 1005 366 M 1083 369 L 1089 368 L 1095 364 M 881 373 L 878 378 M 1052 369 L 1058 363 L 1058 357 M 943 369 L 939 375 M 943 369 L 947 375 M 943 369 L 942 362 M 991 368 L 995 362 L 996 358 M 855 369 L 861 370 M 855 369 L 849 369 M 855 369 L 861 364 M 930 364 L 933 369 L 936 363 M 987 361 L 987 369 M 987 361 L 991 357 M 987 361 L 986 356 M 974 361 L 969 358 M 1021 359 L 1025 354 L 1024 346 M 887 361 L 879 366 M 887 361 L 889 369 M 887 361 L 880 359 M 913 360 L 908 364 M 913 360 L 921 364 M 913 360 L 908 359 M 1036 357 L 1032 352 L 1030 357 M 921 358 L 917 355 L 922 352 M 1089 354 L 1093 361 M 1089 354 L 1085 350 M 1089 354 L 1089 348 M 1069 353 L 1076 352 L 1081 347 M 1096 353 L 1095 360 M 1096 353 L 1098 361 M 1096 353 L 1093 349 M 1096 353 L 1098 348 M 1048 353 L 1042 360 M 1048 353 L 1054 351 M 1048 353 L 1048 347 M 1010 349 L 1004 350 M 1010 349 L 1009 355 M 1010 349 L 1016 343 M 982 349 L 977 351 L 968 346 M 907 349 L 916 348 L 909 342 M 1040 345 L 1037 349 L 1035 344 M 853 349 L 857 356 L 853 345 M 1067 344 L 1060 344 M 1067 344 L 1064 349 M 1067 344 L 1074 339 M 1067 344 L 1069 335 M 976 339 L 970 339 M 976 339 L 972 335 M 976 339 L 983 335 M 976 339 L 978 333 M 1002 338 L 997 339 M 1002 338 L 1010 341 M 1002 338 L 1008 335 M 1057 336 L 1056 340 M 1052 335 L 1058 335 L 1067 330 M 864 339 L 855 331 M 926 337 L 919 336 L 912 332 M 1016 334 L 1019 328 L 1022 333 M 919 335 L 912 330 M 858 336 L 854 335 M 1060 331 L 1061 325 M 998 331 L 997 327 L 993 331 M 883 334 L 891 330 L 884 329 M 1030 331 L 1028 334 M 1032 330 L 1034 333 M 861 331 L 865 328 M 1041 327 L 1037 332 M 1048 326 L 1043 330 M 1048 326 L 1048 332 M 1048 326 L 1054 324 L 1058 323 M 920 325 L 925 329 M 859 326 L 855 323 M 1037 321 L 1041 323 L 1041 321 M 892 325 L 896 328 M 892 325 L 887 322 M 892 325 L 896 321 M 1011 321 L 1008 326 L 1007 321 M 1001 321 L 997 325 L 995 319 M 862 323 L 857 321 M 1027 319 L 1021 322 M 1027 319 L 1033 320 M 1027 319 L 1031 314 M 931 320 L 939 309 M 886 317 L 894 311 L 898 316 M 903 316 L 906 311 L 904 305 M 923 315 L 927 320 M 911 313 L 911 316 M 1022 309 L 1014 311 M 1022 309 L 1018 316 M 1022 309 L 1027 311 M 1022 309 L 1028 307 M 876 307 L 879 313 M 876 307 L 882 301 M 876 307 L 878 299 M 868 307 L 869 312 M 864 307 L 859 311 M 853 305 L 854 309 M 853 305 L 855 309 M 853 305 L 857 300 M 866 304 L 863 297 M 1024 300 L 1019 300 L 1022 295 M 845 304 L 848 308 M 845 304 L 848 298 M 845 304 L 843 296 M 899 302 L 895 300 L 888 301 M 838 302 L 834 306 M 838 302 L 835 306 M 838 302 L 838 296 M 830 302 L 826 305 M 830 302 L 831 306 M 830 302 L 832 296 M 820 300 L 820 294");
stroke-dasharray: none;
}

Tags (1)
0 Kudos
1 Solution

Accepted Solutions
JuanSantos
Esri Contributor

Jake Rattner

I send you the steps using the ArcMap Desktop platform:



  • File > Sing In
  • File > ArcGIS Online > Search: Cross_Jurisdiction y distilled "only search in -organization name-"

  • Click Add and the Gdb will appear in the table of content

  • Right click on each shapefile > Data > Export Data
  • Locate the folder where the shapes will be saved

View solution in original post

4 Replies
JuanSantos
Esri Contributor

Hello Jake Rattner

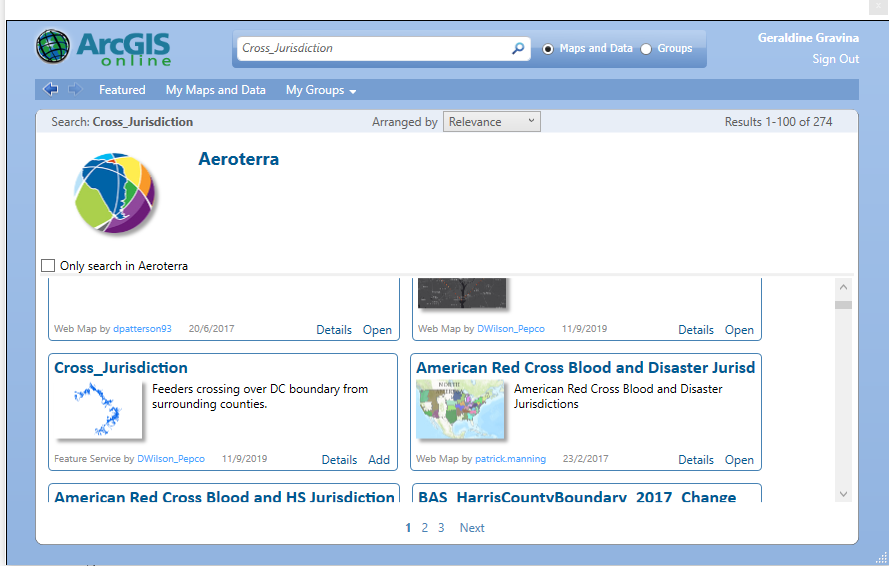

When reviewing the link, two line shapes appear to me; To extract the information, you can do it from the ArcMap, log in with your ArcGIS Online account, look for the indicated map (Cross Jurisdictional) and the data will appear within a Gdb, from there you export them to shapefile.

The only thing is that because they are of the line type, they are not closed to convert them to polygons.

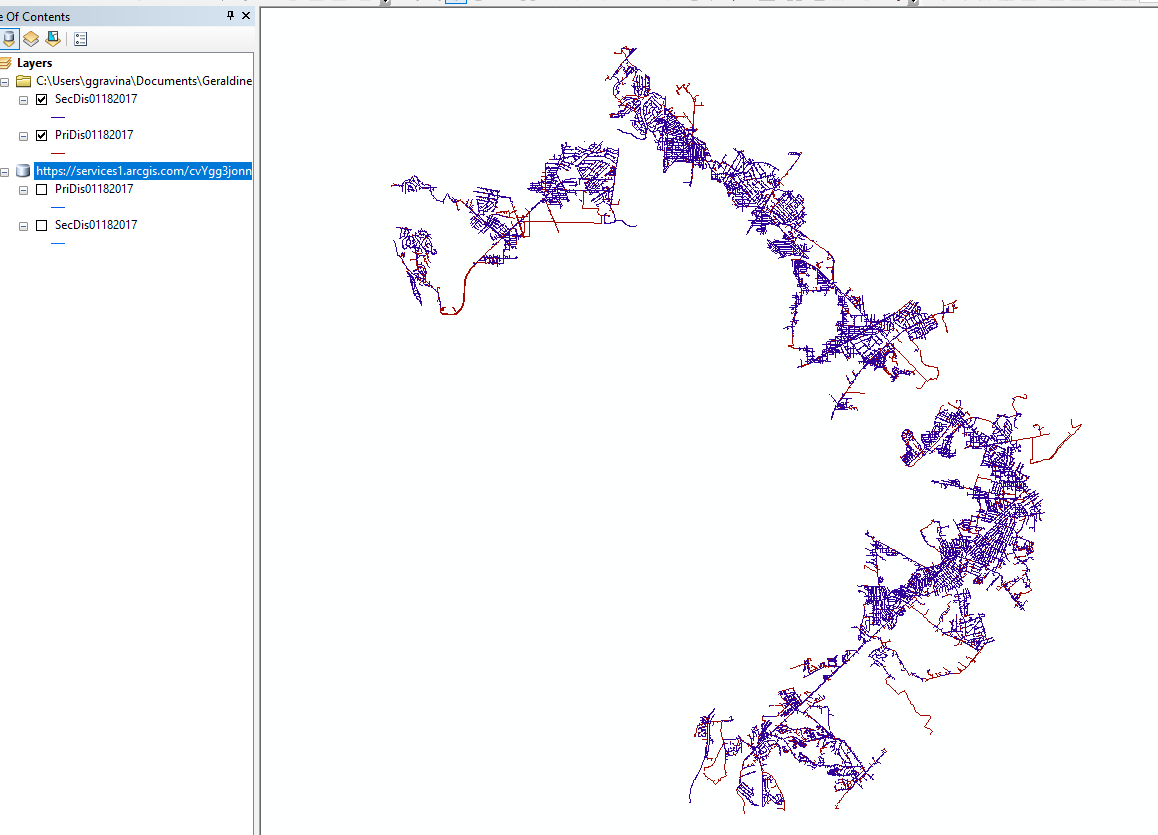

I leave you the capture of how I visualize it:

I hope I've helped

JakeRattner
New Contributor II

Hi Juan,

This is hugely helpful, however I'm getting slightly different results.  When I log in, I get a screen that look like this:

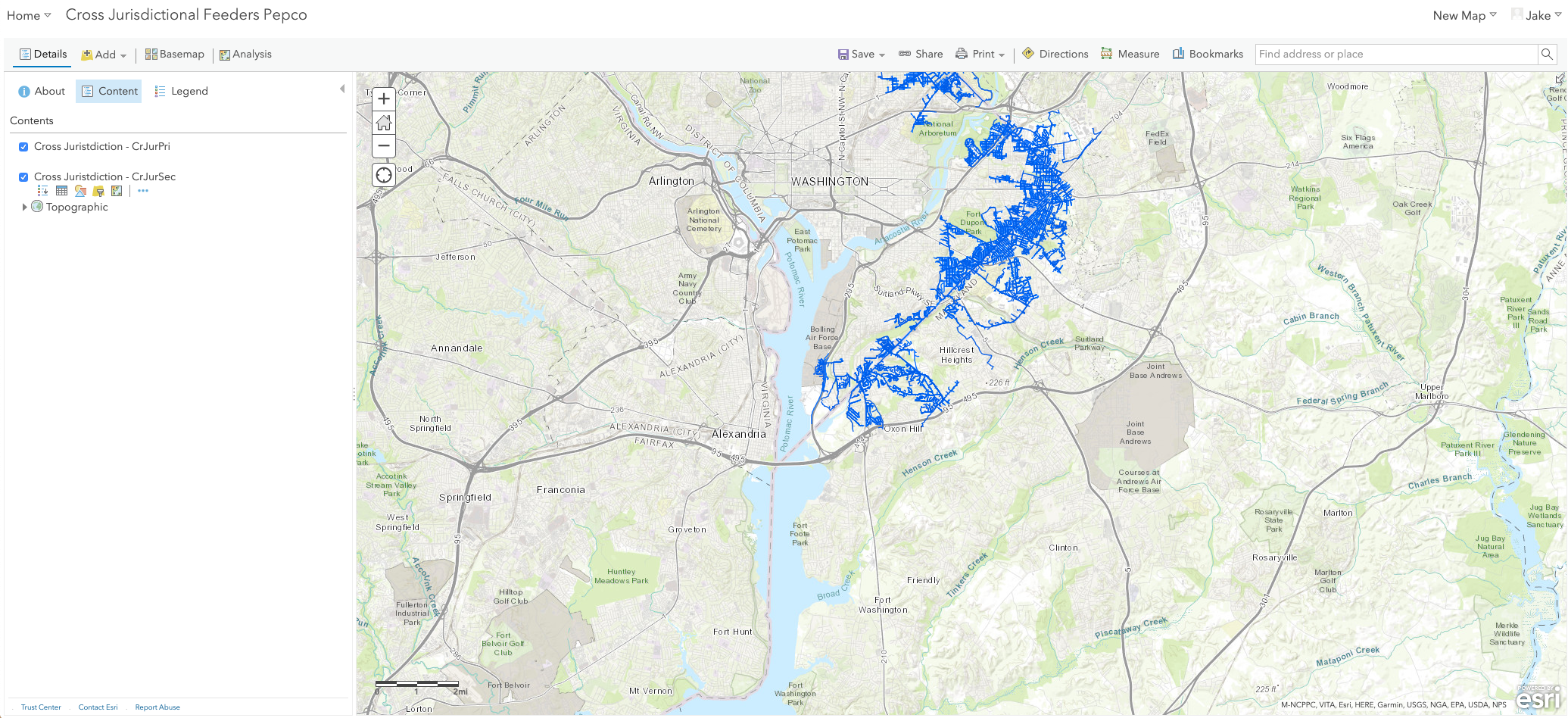

Feederline on Signin

No geo-databases appear for export. Might this be the difference between account types?  I am using a Personal account.  I also tried going to the analysis section of the page to export the data (where the option to export a shapefile appears).  Unfortunately it says I do not have the service available: "Unable to access service".

I want to ask you if you can export the files and attach them here, but I understand if that is asking too much.  Any guidance is appreciated.  Thank you again for your previous response.

Jake

0 Kudos
JuanSantos
Esri Contributor

Jake Rattner

I send you the steps using the ArcMap Desktop platform:



  • File > Sing In
  • File > ArcGIS Online > Search: Cross_Jurisdiction y distilled "only search in -organization name-"

  • Click Add and the Gdb will appear in the table of content

  • Right click on each shapefile > Data > Export Data
  • Locate the folder where the shapes will be saved

JakeRattner
New Contributor II

Hi Juan,

I didn't use the same technique you outlined.  I'm using ArcPro.  Either way I used the instructions you gave me to get the correct result.  I copied the link in the shapefile source, listed on the website and copied it into the path on ArcPro.

Thanks again for all your help!

Jake
