Creating a Hatched Symbology With 2 Colors

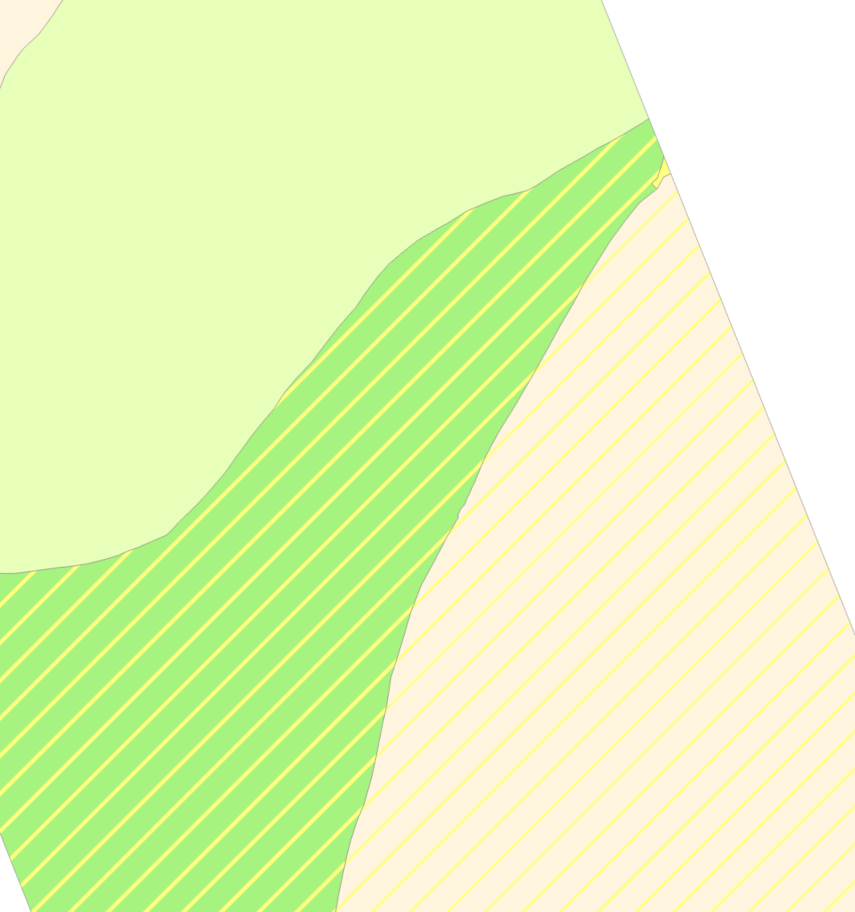

I created this symbology in ArcGIS Pro. They are based off 2 different attributes
AttributeA is expressed through the solid fill which I created 4 different symbology classes from

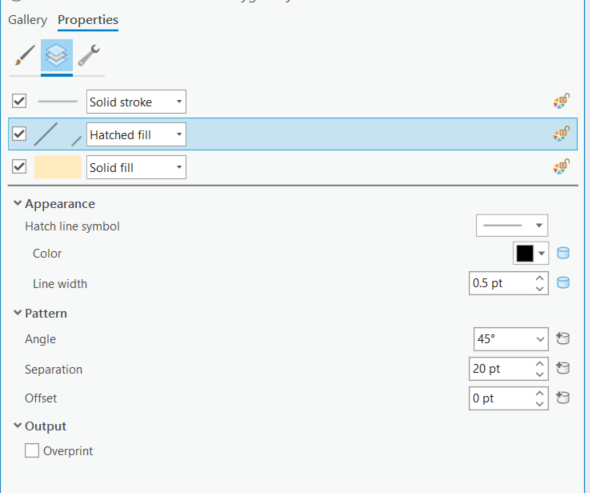

To show AttributeB on top of AttributeA I added a hatched fill which I then added expressions for the color and line width based on AttribueB
Of course when I uploaded this layer to AGOL it lost the custom symbology. I know I can control symbology more using an expression in AGOL but I was wondering if there is a way to get this same hatched effect with a color underneath (not just transparent) in AGOL.
There is going to be quite a few different layers that are like this- so creating a separate layer to show this won't work. The layer also already has a large number of fields so I am really trying not to add more fields if possible.
When sharing the web map or layer make sure this option is unchecked in the sharing dialog.
Here is a quick sample I made driving the color from a field with rgb values. Make sure when configuring the attribute driven symbol property the scripting language is set to arcade.
Sample map published from Pro 3.2
https://www.arcgis.com/apps/mapviewer/index.html?webmap=ec56b45e26694a8ea25f7fcd27325dc5
