Based on the code below how can I add a blue background with white text for the headings similar to the one shown in the screenshot below?
Code:
// Create a variable that is the FeatureSet of intersecting feature attributes
var Address = FeatureSetByName($map, "ADDRESS")
var intersectLayer = Intersects(Address, $feature)
// This variable will be used multiple times in the code
var popup = '<h3>Property Summary</h3>';
for (var f in intersectLayer){
popup += `<b>Address:</b> ${f.FullAddress} <br><br>
`
}
// Now bring in the attributes from the next intersected layer
// Next heading
popup += <h3>Next Heading</h3>;
return {
type : 'text',
text : popup
}
Desired output:
Solved! Go to Solution.
Use the background-color style in the font tag. However, that will be only as long as the text string itself.
var popup = '<h3><font style="background-color:lightblue" color="white">  Property Summary  </font></h3>';

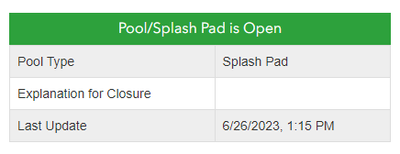

Example:
Code:
<div style="background-color:{expression/expr0};color:#FFFFFF;padding:7px;text-align:center;">
<span style="font-size:medium;">{expression/expr1}</span>
</div>
<figure class="table" style="width:100%;">
<table style="border-collapse:collapse;font-family:arial, sans-serif;text-align:left;">
<tbody>
<tr style="background-color:#eee;">
<td style="border:1px solid #ddd;padding:8px;">
Pool Type
</td>
<td style="border:1px solid #ddd;padding:8px;">
{Pool_Type}
</td>
</tr>
<tr>
<td style="border:1px solid #ddd;padding:8px;">
Explanation for Closure
</td>
<td style="border:1px solid #ddd;padding:8px;">
{public_explanation}
</td>
</tr>
<tr style="background-color:#eee;">
<td style="border:1px solid #ddd;padding:8px;">
Last Update
</td>
<td style="border:1px solid #ddd;padding:8px;">
{LastDateInspected}
</td>
</tr>
</tbody>
</table>
</figure>
Use the background-color style in the font tag. However, that will be only as long as the text string itself.
var popup = '<h3><font style="background-color:lightblue" color="white">  Property Summary  </font></h3>';
Thank you so much Ken, can you please explain what does   do?
I got it so   is to add an extra white space.
Also is it possible to add a hex code instead of typing out the color name?
like will the code snippet inserted below work?
var popup = '<h3><font style="background-color:#ADD8E6" color="#FFFFFF">  Property Summary  </font></h3>';
Yup I just checked it does indeed support HEX codes.
Thank you so much @KenBuja 🙂

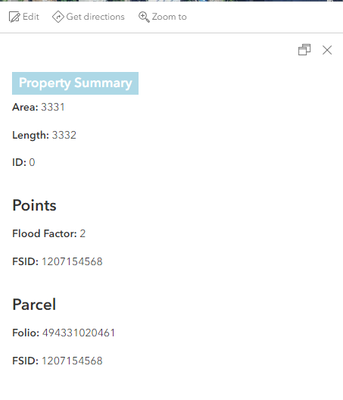

PS you can also see that the parcel attributes are now present in the popup.
Example:
Code:
<div style="background-color:{expression/expr0};color:#FFFFFF;padding:7px;text-align:center;">
<span style="font-size:medium;">{expression/expr1}</span>
</div>
<figure class="table" style="width:100%;">
<table style="border-collapse:collapse;font-family:arial, sans-serif;text-align:left;">
<tbody>
<tr style="background-color:#eee;">
<td style="border:1px solid #ddd;padding:8px;">
Pool Type
</td>
<td style="border:1px solid #ddd;padding:8px;">
{Pool_Type}
</td>
</tr>
<tr>
<td style="border:1px solid #ddd;padding:8px;">
Explanation for Closure
</td>
<td style="border:1px solid #ddd;padding:8px;">
{public_explanation}
</td>
</tr>
<tr style="background-color:#eee;">
<td style="border:1px solid #ddd;padding:8px;">
Last Update
</td>
<td style="border:1px solid #ddd;padding:8px;">
{LastDateInspected}
</td>
</tr>
</tbody>
</table>
</figure>
Awesome 😎 thank you for the detailed response.
