how to get the FloorFilter widget to work with Map instead of WebMap

[Annthonny123]

Hello everyone I've been trying to implement the new FloorFilter widget with a Map instead of a WebMap, I added the LayerFloorInfo property to the layers but yet I cannot seem to get it to work, does my data needs to have some sort of pattern or name them in a certain way? I was looking at the thread here https://community.esri.com/t5/arcgis-api-for-javascript/cannot-get-new-floorfilter-widget-working/m-... but they seem to be using WebMap as well, not quit what I'm looking for.

I tried following the example from the docs but it wasn't of much help since the example uses a WebMap and all it does is add the widget to the view like any other widget.

Any help would be appreciate it!

thank you

[RickeyFight]

@Annthonny123

Can you provide some screen shots?

[Annthonny123]

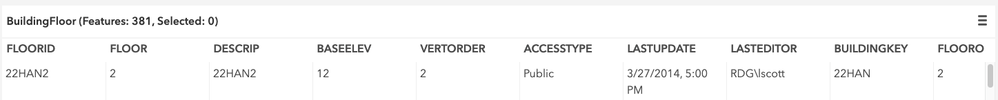

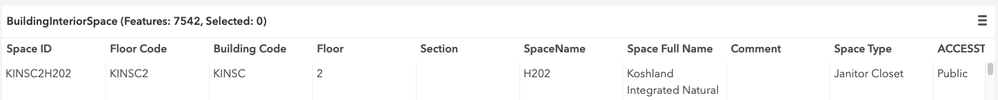

Sure, @RickeyFight  I'm attaching screenshots of the data fields, I have four layers

I iterate over the layers and add the floorInfo property, and add the widget to the view.

const layerFloorInfo = new LayerFloorInfo({
  floorField: 'FLOORID',
});

// iterate through layers and add floorInfo property to each of them
layers.forEach((layer: __esri.FeatureLayer) => {
  layer.floorInfo = layerFloorInfo;
});

const floorFilter = new FloorFilter({ view: view });
view.ui.add(floorFilter, { position: 'top-left', index: 2 })

but the widget is disabled and won't give me any options of the data or anything at all,

Thank you!

[tomhillgeo]

In order to make a floor-aware map with the JavaScript API, you will need to use the WebMap class instead of Map.  Once you have a WebMap, you can then set its floorInfo property.  The layers that you choose to represent facilities and floor levels must follow a specific schema.  Learn more here:

https://pro.arcgis.com/en/pro-app/latest/help/data/indoors/configure-floor-aware-maps.htm

That floor info in the WebMap is what enables the FloorFilter widget to show facilities/levels to choose from.

An alternative to the JavaScript API for floor-aware map creation, if you have ArcGIS Pro, is to use the newly available ArcGIS Pro 2.8 to set the floor properties on your map before sharing as a webmap.

https://pro.arcgis.com/en/pro-app/latest/help/data/indoors/floor-aware-maps.htm

[johnbrosowsky]

this worked for me:

const mySiteLayerInfo = new SiteLayerInfo({
layerId: "sites_view_9488",
siteIdField: "SITE_ID",
nameField: "NAME",
});

const myFacilityLayerInfo = new FacilityLayerInfo({
facilityIdField: "FACILITY_ID",
layerId: "facilities_view_8594",
nameField: "NAME",
longNameField: "NAME_LONG",
siteIdField: "SITE_ID",
});

const myLevelLayerInfo = new LevelLayerInfo({
facilityIdField: "FACILITY_ID",
layerId: "levels_view_4226",
levelIdField: "LEVEL_ID",
levelNumberField: "LEVEL_NUMBER",
longNameField: "NAME",
shortNameField: "NAME_SHORT",
verticalOrderField: "VERTICAL_ORDER",
floorField: "LEVEL_ID",
});

const myFloorInfo = new MapFloorInfo({
siteLayer: mySiteLayerInfo,
facilityLayer: myFacilityLayerInfo,
levelLayer: myLevelLayerInfo,
});

const webmap = new WebMap({
portalItem: {
id: "1c020f2cdab3436ca7d54facf6bfab00",
},
floorInfo: myFloorInfo,
});
