QuickCapture 1.20 release now available in the app stores!
We’ve just released an update for QuickCapture mobile and designer. In addition to several bug fixes and enhancements, here are the key highlights:
New level_id Variable

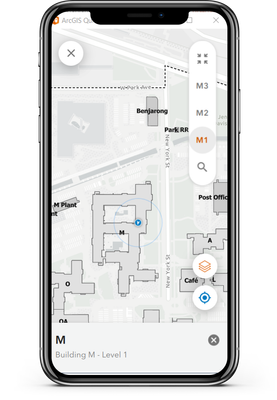

When you set a floor-aware web map as your project map, a floor switcher will appear in the mobile app. This switcher allows users to manually select their current floor and view the corresponding floor plan data. While this feature is not new, version 1.20.22 introduces a new level_id device variable.
In ArcGIS Indoors, the level_id represents the unique ID of the feature’s associated floor level and is used to identify the feature’s level in floor-aware maps. If the level_id is recorded for any QuickCapture captured feature, it can be associated with a floor! This is valuable in a number of applications, including:
- Capturing issues on a multi-floor construction site
- Recording changes to user office assignments in a large building
- Tracking the location of critical assets in a medical facility

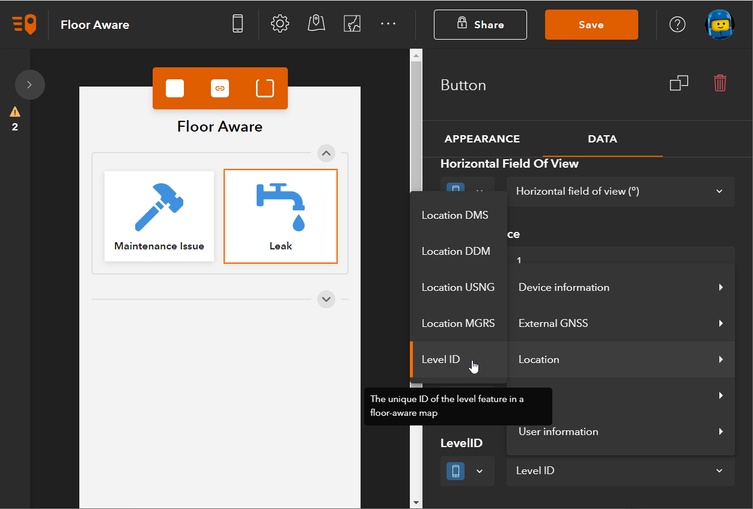

To utilize this feature, the project author must apply the level id variable to a text field in the data tab for a project button, and set a floor aware map as the project map. Once the project is downloaded and opened, the mobile user needs to open the map, select the floor that they are on using the floor switcher, and then capture a feature. Each captured feature will automatically have its level_id recorded. If they move to another floor, they just need to update the floor switcher before capturing.

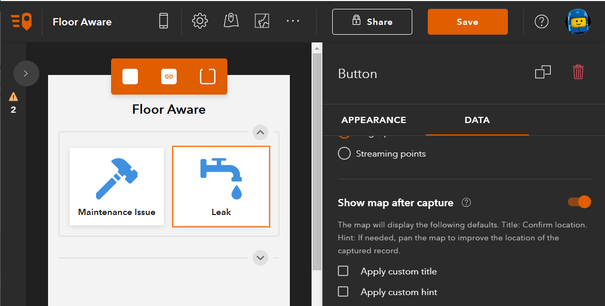

Note: Although QuickCapture does not currently support Indoor Positioning Systems (IPS), authors can configure the project button to display the map immediately after capturing a feature. This allows users to verify and, if necessary, update the initial (GPS-derived) location. To do this, in the designer select a project button and go to the data tab. Then switch on the option to Show map after capture.
For more information on Indoors, see:
Tablet Device Support

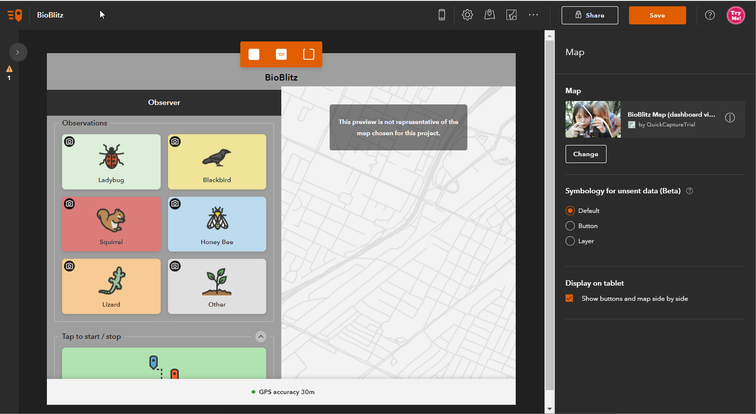

The QuickCapture mobile app supports a side-by-side view of the project buttons and map. To use this feature, authors need to enable side-by-side view in the project map settings, and users must open the project on a tablet device.
Some tablets are mistakenly reported as phones by the QuickCapture framework, which can prevent the side-by-side view from working. To address this, we have whitelisted specific devices to ensure QuickCapture mobile recognizes them as tablets. If your tablet does not show the side-by-side view, please download the project, capture, and upload a feature. This will provide us with the necessary details to support your device in the next app release.
Scan barcode to download the Tablet Whitelisting project
That is all for 1.20. Please share any questions in the comments below.
