Expereince Builder URL parameters data select not working

[HeathAnderson]

Hi all,

I'm trying to create a URL parameter in Experience Builder (ExB) while working in ArcGIS Enterprise 11.3. I've followed the documentation and successfully implemented a "data_s=where:" statement in ArcGIS Online, but I'm having trouble replicating that success in Enterprise.

📄 Reference documentation:
Experience Builder URL Parameters (ArcGIS 11.3)

🔧 Here's the example I'm working from:

#ESRI EXAMPLE
https://experience.arcgis.com/experience/<AppId>/#data_s=where:widget_1-dataSource_1-1871234a785-layer-2:a>1

#TESTING URL
https://<organization portal url>/apps/experiencebuilder/experience/?id=<experienceID>#data_s=where%3A<dataSource value>%3A<attributeField>%3D<attributeValue>

So far, I've been successful using OBJECTID as the attribute field, but I can’t seem to get it to work with other attribute fields. I’ve double-checked field names, data types, and syntax, but no luck so far.

Has anyone encountered this in Enterprise 11.3 or have any tips on what might be causing the issue?

Any help would be greatly appreciated!

Cheers,
Heath

[Allen_Zhang · Accepted solution]

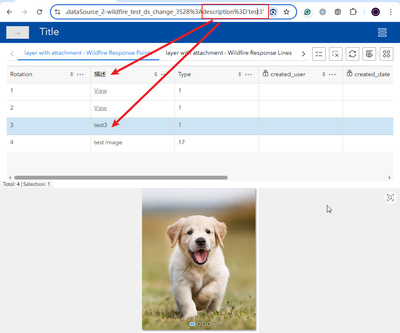

Sometimes the displayed field name is not the real field name...

You can find the real field name here in arcgis rest service.

And if the field is a text/string, you need to wrap the field value with single quotes:

[HeathAnderson]

Hi Allen,

It was the quotes.

Thank you

Heath

[PSRFA_GIS]

Thank you!  Where in the documentation does is mention strings must be in single quotes?  How did you know that?  I assumed double quotes and it wasn't working at all for me.  But that was just a wild guess due to no documentation on this subject.

[Allen_Zhang]

Just a programmer's wild instinct!
