10.8.1 Portal > My Content > Add Item > Unable To Add Item IOException error

983
1
Jump to solution
08-06-2021 07:45 AM
Labels (2)
ShanonLoughton
Esri Contributor

I cannot add an FGDB from 6MB upto 200MB+, it says error in adding. I suspect it has something to do with multi-part uploading, as seen in Portal logs (attached)?

Steps to reproduce:

10.8.1 Portal > My Content > Add Item > choose FGDB *.ZIP > select File Geodatabase, dont publish.

Expected results:

Added ok.

Actual results:

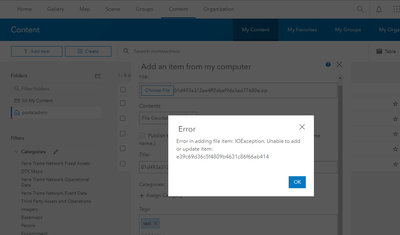

Error popup, "Error in adding item. IOException. Unable to add or update item: <title>.'


More info:

- Typical requests in an upload from browser dev console is:
/additem, content-type: application/x-www-form-urlencoded
/addPart?partNum=1, content-type: multipart/form-data
/addPart?partNum=2, etc.., content-type: multipart/form-data
/commit, content-type: application/x-www-form-urlencoded

- Deployment is manually on Azure, closely following what ArcGIS CloudBuilder for Azure outputs, but could have some difference somewhere. Has a CA-signed certificate for the public listener, then self-signed certs behind for the machines.

- However, also happens on a default base stack ArcGIS CloudBuilder for Azure 10.9 on a single machine, with Portal Content on Azure blob, and with self-signed certs used.

- Connecting to ArcGIS Enterprise over a VPN, and attempting browser and python api from local machine. Connection is stable and at least 5mb/s.

- Attempted on Chrome 64bit Version 92.0.4515.131 (Official Build) (64-bit) on Windows 10 64 bit OS.

- Server machines had Cisco AMP Endpoints running. Turning off made no difference.

- FGDB sizes that can be added - 100KB, 2.5MB

- FGDB sizes that cannot be added, with same error above - 6.5MB, 90MB, 112MB

- Portal content configured for Azure blob:











{"type":"cloudStore","provider":"Azure","connectionString":{"accountName":"abcdefghijklmnop","accountEndpoint":"blob.core.windows.net","accountKey":"*****************************************","credentialType":"accessKey"},"objectStore":"https://abcdefghijklmnop.blob.core.windows.net/portal-content-store","isConnectionStringEncrypted":true}











- Portal Verbose Logs:











INFO
Part 12 added to multipart item '253782816294401caf9df3274eb44b88/exampleFGDB.zip'.
2021-08-07T00:15:47,57	Sharing	<hostname>	portaladmin	219999	5148
SEVERE
Failed to add or update item '253782816294401caf9df3274eb44b88'. Stream is already closed.
2021-08-07T00:15:47,531	Sharing	<hostname>	portaladmin	219999	5148
INFO
Added item '73099cdc51a844d6b93c5cdc9a189e5c' of type 'File Geodatabase' to the portal.
2021-08-07T00:15:47,426	Sharing	<hostname>	portaladmin	219999	5148
INFO
Multipart item '253782816294401caf9df3274eb44b88/exampleFGDB.zip' committed to the portal.
2021-08-07T00:15:47,374	Sharing	<hostname>	portaladmin	219999	5148
INFO
Part 13 added to multipart item '253782816294401caf9df3274eb44b88/exampleFGDB.zip'.
2021-08-07T00:15:46,482	Sharing	<hostname>	portaladmin	219999	5148
INFO
Part 11 added to multipart item '253782816294401caf9df3274eb44b88/exampleFGDB.zip'.
2021-08-07T00:15:44,667	Sharing	<hostname>	portaladmin	219999	5148
INFO
Part 9 added to multipart item '253782816294401caf9df3274eb44b88/exampleFGDB.zip'.
2021-08-07T00:15:35,758	Sharing	<hostname>	portaladmin	219999	5148
INFO
Part 7 added to multipart item '253782816294401caf9df3274eb44b88/exampleFGDB.zip'.
2021-08-07T00:15:34,818	Sharing	<hostname>	portaladmin	219999	5148
INFO
Part 6 added to multipart item '253782816294401caf9df3274eb44b88/exampleFGDB.zip'.
2021-08-07T00:15:34,3	Sharing	<hostname>	portaladmin	219999	5148
INFO
Part 8 added to multipart item '253782816294401caf9df3274eb44b88/exampleFGDB.zip'.
2021-08-07T00:15:34,251	Sharing	<hostname>	portaladmin	219999	5148
INFO
Part 10 added to multipart item '253782816294401caf9df3274eb44b88/exampleFGDB.zip'.
2021-08-07T00:15:33,208	Sharing	<hostname>	portaladmin	219999	5148
INFO
Part 5 added to multipart item '253782816294401caf9df3274eb44b88/exampleFGDB.zip'.
2021-08-07T00:15:14,523	Sharing	<hostname>	portaladmin	219999	5148
INFO
Part 1 added to multipart item '253782816294401caf9df3274eb44b88/exampleFGDB.zip'.
2021-08-07T00:15:12,221	Sharing	<hostname>	portaladmin	219999	5148
INFO
Part 3 added to multipart item '253782816294401caf9df3274eb44b88/exampleFGDB.zip'.
2021-08-07T00:15:11,81	Sharing	<hostname>	portaladmin	219999	5148
INFO
Part 2 added to multipart item '253782816294401caf9df3274eb44b88/exampleFGDB.zip'.
2021-08-07T00:15:10,940	Sharing	<hostname>	portaladmin	219999	5148
INFO
Part 4 added to multipart item '253782816294401caf9df3274eb44b88/exampleFGDB.zip'.
2021-08-07T00:15:09,977	Sharing	<hostname>	portaladmin	219999	5148
INFO
Created multipart item '253782816294401caf9df3274eb44b88/exampleFGDB.zip'.
2021-08-07T00:14:49,433	Sharing	<hostname>	portaladmin	219999	5148
INFO
Log settings updated. [Logs directory = 'G:\arcgisportal\logs\', Log level = VERBOSE, Max age in days = 90]
2021-08-07T00:14:39,736	Portal Admin	<hostname>		205013	5148









And another example:


<Msg time="2021-08-09T12:10:49,887" type="INFO" code="219999" source="Sharing" process="5148" thread="1" methodName="" machine="domain.com" user="portaladmin" elapsed="" requestID=""> Part 1 added to multipart item '53277fec633c41aa92ec16de984575cd/exampleFGDB.zip'.</Msg>
<Msg time="2021-08-09T12:10:50,214" type="INFO" code="219999" source="Sharing" process="5148" thread="1" methodName="" machine="domain.com" user="portaladmin" elapsed="" requestID=""> Multipart item '53277fec633c41aa92ec16de984575cd/exampleFGDB.zip' committed to the portal.</Msg>
<Msg time="2021-08-09T12:10:50,249" type="INFO" code="219999" source="Sharing" process="5148" thread="1" methodName="" machine="domain.com" user="portaladmin" elapsed="" requestID=""> Added item 'testfgdb' of type 'File Geodatabase' to the portal.</Msg>
<Msg time="2021-08-09T12:10:50,310" type="DEBUG" code="219999" source="Sharing" process="5148" thread="1" methodName="" machine="domain.com" user="portaladmin" elapsed="" requestID=""> Stream is already closed.</Msg>
<Msg time="2021-08-09T12:10:50,310" type="DEBUG" code="9999" source="Sharing" process="5148" thread="1" methodName="" machine="domain.com" user="" elapsed="" requestID="">java.io.IOException: Stream is already closed.
at com.microsoft.azure.storage.blob.BlobInputStream.close(BlobInputStream.java:237)
at com.esri.gw.util.zip.ZipUtil.analyzeZipFile(ZipUtil.java:108)
at com.esri.gw.content.GWContent.checkItemValidForPublishing(GWContent.java:9352)
at com.esri.gw.content.GWContent.a(GWContent.java:1115)
at com.esri.gw.content.GWContent.addItem(GWContent.java:1021)
at com.esri.gw.content.GWContent.a(GWContent.java:953)
at com.esri.gw.content.GWContent.processCommitMultipartItem(GWContent.java:4290)
at com.esri.gw.content.ContentRequestHandler.lambda$commitMultipartItem$2(ContentRequestHandler.java:5794)
at java.base/java.lang.Thread.run(Unknown Source)
</Msg>
<Msg time="2021-08-09T12:10:50,310" type="SEVERE" code="219999" source="Sharing" process="5148" thread="1" methodName="" machine="domain.com" user="portaladmin" elapsed="" requestID=""> Failed to add or update item '53277fec633c41aa92ec16de984575cd'. Stream is already closed.</Msg>
<Msg time="2021-08-09T12:10:50,310" type="DEBUG" code="219999" source="Sharing" process="5148" thread="1" methodName="" machine="domain.com" user="portaladmin" elapsed="" requestID=""> IOException. Unable to add or update item: 53277fec633c41aa92ec16de984575cd</Msg>
<Msg time="2021-08-09T12:10:50,310" type="DEBUG" code="9999" source="Sharing" process="5148" thread="1" methodName="" machine="domain.com" user="" elapsed="" requestID="">com.esri.gw.GWException: IOException. Unable to add or update item: 53277fec633c41aa92ec16de984575cd
at com.esri.gw.content.GWContent.a(GWContent.java:1693)
at com.esri.gw.content.GWContent.addItem(GWContent.java:1021)
at com.esri.gw.content.GWContent.a(GWContent.java:953)
at com.esri.gw.content.GWContent.processCommitMultipartItem(GWContent.java:4290)
at com.esri.gw.content.ContentRequestHandler.lambda$commitMultipartItem$2(ContentRequestHandler.java:5794)
at java.base/java.lang.Thread.run(Unknown Source)
Caused by: java.io.IOException: Stream is already closed.
at com.microsoft.azure.storage.blob.BlobInputStream.close(BlobInputStream.java:237)
at com.esri.gw.util.zip.ZipUtil.analyzeZipFile(ZipUtil.java:108)
at com.esri.gw.content.GWContent.checkItemValidForPublishing(GWContent.java:9352)
at com.esri.gw.content.GWContent.a(GWContent.java:1115)
... 5 more
</Msg>



- Happens in python API too. Target version returned [8,2] (is that API 1.8.2?)











In [52]: target.version
Out[52]: [8, 2]

In [53]: newitemfgdb = target.content.add(item_properties={'type':'File Geodatabase'},data=itemdataexportedfgdb)
---------------------------------------------------------------------------
Exception                                 Traceback (most recent call last)
<ipython-input-53-7885fbefd79e> in <module>
----> 1 newitemfgdb = target.content.add(item_properties={'type':'File Geodatabase'},data=itemdataexportedfgdb)

C:\Program Files\ArcGIS\Pro\bin\Python\envs\arcgispro-py3\lib\site-packages\arcgis\gis\__init__.py in add(self, item_properties, data, thumbnail, metadata, owner, folder, item_id)
   4252
   4253             # Update the thumbnail and return the item
-> 4254             item = Item(gis=self._gis, itemid=itemid)
   4255             if item.type == "KML":
   4256                 item.update({'url' : f"{self._gis._portal.resturl}content/items/{item.itemid}/data"})

C:\Program Files\ArcGIS\Pro\bin\Python\envs\arcgispro-py3\lib\site-packages\arcgis\gis\__init__.py in __init__(self, gis, itemid, itemdict)
   8243         except: pass
   8244
-> 8245         if self._has_layers():
   8246             self.layers = None
   8247             self.tables = None

C:\Program Files\ArcGIS\Pro\bin\Python\envs\arcgispro-py3\lib\site-packages\arcgis\gis\__init__.py in _has_layers(self)
   8277     #----------------------------------------------------------------------
   8278     def _has_layers(self):
-> 8279         return self.type ==  'Feature Collection' or \
   8280                self.type == 'Feature Service' or \
   8281                self.type == 'Big Data File Share' or \

C:\Program Files\ArcGIS\Pro\bin\Python\envs\arcgispro-py3\lib\site-packages\arcgis\gis\__init__.py in __getattr__(self, name)
   8414     def __getattr__(self, name): # support item attributes
   8415         if not self._hydrated and not name.startswith('_'):
-> 8416             self._hydrate()
   8417         try:
   8418             return dict.__getitem__(self, name)

C:\Program Files\ArcGIS\Pro\bin\Python\envs\arcgispro-py3\lib\site-packages\arcgis\gis\__init__.py in _hydrate(self)
   8370
   8371     def _hydrate(self):
-> 8372         itemdict = self._portal.get_item(self.itemid)
   8373         self._hydrated = True
   8374         super(Item, self).update(itemdict)

C:\Program Files\ArcGIS\Pro\bin\Python\envs\arcgispro-py3\lib\site-packages\arcgis\gis\_impl\_portalpy.py in get_item(self, itemid)
   1262             ================  ========================================================
   1263         """
-> 1264         return self.con.post('content/items/' + itemid, self._postdata())
   1265
   1266     def get_item_data(self, itemid, try_json=True, folder=None):

C:\Program Files\ArcGIS\Pro\bin\Python\envs\arcgispro-py3\lib\site-packages\arcgis\gis\_impl\_con\_connection.py in post(self, path, params, files, **kwargs)
    718                                      file_name=file_name,
    719                                      try_json=try_json,
--> 720                                      force_bytes=kwargs.pop('force_bytes', False))
    721     #----------------------------------------------------------------------
    722     def put(self, url, params=None, files=None, **kwargs):

C:\Program Files\ArcGIS\Pro\bin\Python\envs\arcgispro-py3\lib\site-packages\arcgis\gis\_impl\_con\_connection.py in _handle_response(self, resp, file_name, out_path, try_json, force_bytes)
    512                     return data
    513                 errorcode = data['error']['code'] if 'code' in data['error'] else 0
--> 514                 self._handle_json_error(data['error'], errorcode)
    515             return data
    516         else:

C:\Program Files\ArcGIS\Pro\bin\Python\envs\arcgispro-py3\lib\site-packages\arcgis\gis\_impl\_con\_connection.py in _handle_json_error(self, error, errorcode)
    534
    535         errormessage = errormessage + "\n(Error Code: " + str(errorcode) +")"
--> 536         raise Exception(errormessage)
    537     #----------------------------------------------------------------------
    538     def post(self,

Exception: Item does not exist or is inaccessible.
(Error Code: 400)











ArcGIS Enterprise Admin Professional, AWS Solutions Architect Professional
0 Kudos
1 Solution

Accepted Solutions
ChristopherPawlyszyn
Esri Contributor

This is a known issue that has been logged with Support in relation to using Azure Blob storage for the Portal content location and uploads above 5MB. I would recommend opening a case and having it attached to the defect for tracking purposes, BUG-000139417.



A workaround that was identified was to publish the content from ArcGIS Pro as opposed to uploading through the browser, which may work for some of the publishing scenarios.

View solution in original post

1 Reply
ChristopherPawlyszyn
Esri Contributor

This is a known issue that has been logged with Support in relation to using Azure Blob storage for the Portal content location and uploads above 5MB. I would recommend opening a case and having it attached to the defect for tracking purposes, BUG-000139417.



A workaround that was identified was to publish the content from ArcGIS Pro as opposed to uploading through the browser, which may work for some of the publishing scenarios.
